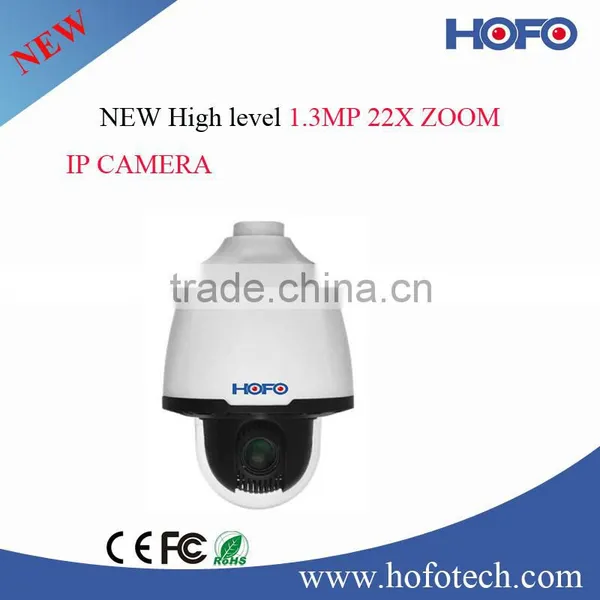

1.3MP 22X ZOOM IP PTZ doem camera for traffic
|
Optics Accurate and fast focusing Lowlight surveillance Compression H.264 High Profile Triple streams Customized OSD Network Optional network interfaces with Ethernet RJ45 and optical SFP NAA (Network Auto-Adaptability) to cope with up to 5% network packet loss UNP(Universal Network Passport) patented technology for NAT traversal Dual direct-to-iSCSI data block storage ONVIF Conformance Structure Fast installation structure design Intelligent temperature control technology High quality sealing structure, support IP67 6 KV surge protection designed for network interface |
HFIPC-641E-X22-IN |
|
||
Camera | |||
Sensor |
1/3", 1.3Megapixel, progressive scan, low illumination CMOS |
||
Lens |
4.7 ~ 103 mm (22x optical zoom) |
||
Angle of View (H) |
59.7° (wide) ~ 3.1° (tele) |
||
Iris |
Auto/Manual; F1.6 ~ F3.2 |
||
Shutter |
Auto/Manual; shutter time: 1/6 s ~ 1/8000 s |
||
Min. Illumination |
Color: 0.03 lux (F1.6, 50IRE) B/W: 0.01 lux (F1.6, 50IRE) |
||
S/N |
>50dB |
||
Day/Night |
IR-cut filter with auto switch (ICR) |
||
Video | |||
Max. Resolution |
1280 × 960 |
||
Video Compression |
H.264,MJPEG |
||
Frame Rate |
960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps |
||
Video Streaming |
Triple |
||
OSD |
Up to 8 OSDs |
||
Privacy Mask |
Up to 8 areas |
||
Digital Zoom |
Support |
||
Audio | |||
Audio Compression |
G.711 |
||
Two-way Talking |
Support |
||
Storage | |||
Edge Storage |
SD, up to 32 GB |
||
Back-end Storage |
Dual Direct-to-iSCSI data block storage |
||
Cache Post Recording |
Support |
||
Network | |||
Protocols |
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP |
||
Compatible Integration |
ONVIF, IMOS,API |
||
Pan & Tilt | |||
Pan Range |
360° (endless) |
||
Pan Speed |
0.1°/s ~ 400°/s |
||
Preset speed: 540°/s | |||
Tilt Range |
–1° ~ +90° (auto reverse) |
||
Tilt Speed |
0.1° ~ 240°/s |
||
Preset speed: 400°/s | |||
Number of Preset |
255 |
||
Patrol |
Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16. |
||
Pattern |
Up to 16 patterns, with the total recording time not less 15 minutes |
||
Interface | |||
Audio I/O |
3.5 mm audio interface |
||
Input: impedance 35 kΩ; amplitude 2 V [p-p] | |||
Output: impedance 600 Ω; amplitude 2 V [p-p] | |||
Alarm I/O |
2 / 1 |
||
Serial Port |
1 RS485 |
||
Network |
10M/100M Base-TX Ethernet |
|
|
Video Output |
1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
||
General | |||
Power Supply |
24 V AC |
||
Power consumption: 9 ~ 33 W (heater: Max. 20 W) | |||
Dimensions (Ø x H) |
Ø218 x 298 mm (Ø8.6” x 11.7”) |
||
Weight |
4.2 kg (9.3 lb) |
||
Working Environment |
–40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 90% RH(non-condensing) |
||
Ingress Protection |
IP67 |
||
If you are interested in our products, pls feel free to contact us. We will do our best to service you.
Our aim: Best Quality, Superior Service!
