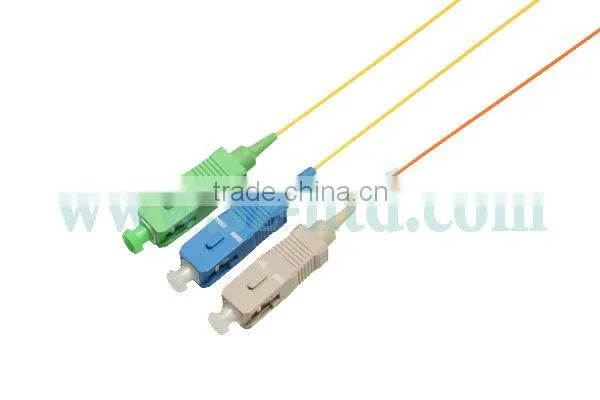

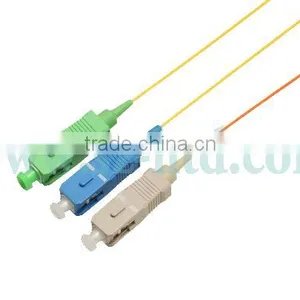

Original Factory SC/APC SM SX Fiber Optic Pigtail 5M
Specifications
1 Connector Surface Design: PC/UPC/APC Polishing
2 Low Insertion Loss and High Return Loss
3 Good Repetability
1 Description
Fiber optic patch cord and pigtail can connect with different types of connectors such as ST, FC, SC, LC or MU. With the high-quality ceramic ferrule, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
2 Patch Cord Technical Specs
| Item | PC | UPC | APC |
| Testing Wavelength (nm ) | 1310nm&1550nm | ||
| Insertion Loss Max (dB) | 0.3 | ||
| Return Loss (dB) | 45 | 50 | 55 |
3D Specs:
| Item | UPC | APC | ||
| Φ0.125mm | Φ0.25mm | Φ0.125mm | Φ0.25mm | |
| Radius of Curve(mm) | 7~25 | 10~25 | 5~12 | |
| Apex Offset(um) | ≤50 | |||
| Fiber Height(nm) | -0.5 | |||
| Polishing Angle(°) | 8±0.3 | |||
3 Applications:
---Fiber Optic communications system;
---Fiber Optic access networks;
---CATV
---Fiber Optic data communication
---Fiber Optic Test Equipments
1 Description
Fiber optic patch cord and pigtail can connect with different types of connectors such as ST, FC, SC, LC or MU. With the high-quality ceramic ferrule, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
2 Patch Cord Technical Specs
| Item | PC | UPC | APC |
| Testing Wavelength (nm ) | 1310nm&1550nm | ||
| Insertion Loss Max (dB) | 0.3 | ||
| Return Loss (dB) | 45 | 50 | 55 |
3D Specs:
| Item | UPC | APC | ||
| Φ0.125mm | Φ0.25mm | Φ0.125mm | Φ0.25mm | |
| Radius of Curve(mm) | 7~25 | 10~25 | 5~12 | |
| Apex Offset(um) | ≤50 | |||
| Fiber Height(nm) | -0.5 | |||
| Polishing Angle(°) | 8±0.3 | |||
3 Applications:
---Fiber Optic communications system;
---Fiber Optic access networks;
---CATV
---Fiber Optic data communication
---Fiber Optic Test Equipments
