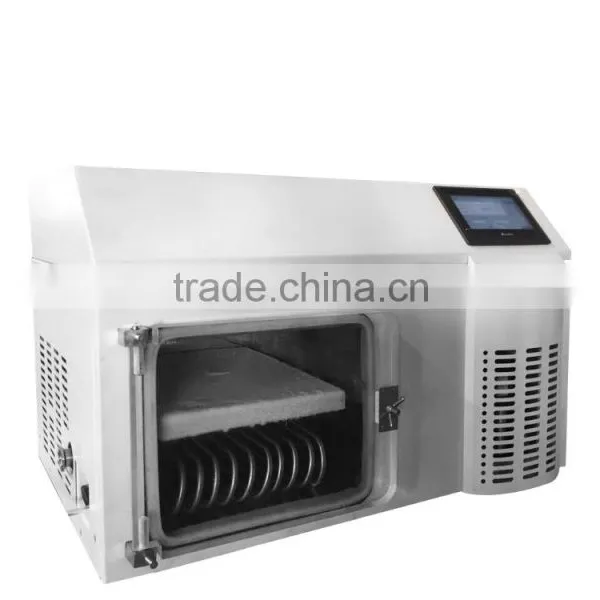

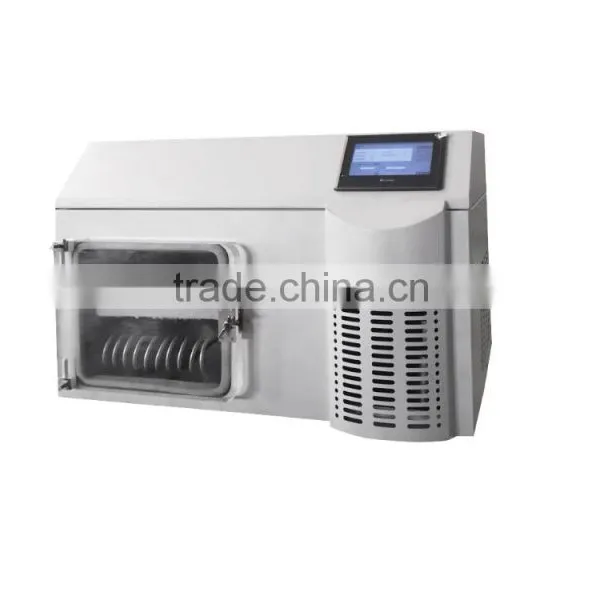

Programmable Freeze Dryer SJIA-5FE
US$ 2500.00 - 3000.00
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SJIA-5FE Pilot Freeze DryerUS$ 2500.00 - 3000.00MOQ: 1 Unit -
SJIA-5FE Tray Heating Freeze DryerUS$ 2500.00 - 3000.00MOQ: 1 Unit
-
10kg/24hr Silicone Heating Freeze Dryer, Pilot Lyophilizer, Automated LyophilizerUS$ 23000.00 - 25000.00MOQ: 1 Unit
-
SJIA-10N Electric Heating Laboratory Freeze DryerUS$ 2,000 - 3,000MOQ: 1 Unit
-
Electric Heating Laboratory Freeze Dryer SJIA-10FUS$ 3,000 - 5,000MOQ: 1 Unit
Condition
New
Type
Freeze Drying Equipment
Place of Origin
Zhejiang, China
Brand Name
SJIALAB
Model Number
SJIA-5FE
Voltage
220V /110V
Power(W)
1100W
Dimension(L*W*H)
880*660*550MM
Weight
80KGS
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Programmable freeze dryer SJIA-5FE pilot freeze dryer /tray heating freeze dryer/ Medium-sized Lyophilizer / Bench In Situ Freeze Dryer/ effective in situ pilot freeze dryer lyophilisers
Pre-freeze dried in situ,high transmittance plexiglass viweing window
LCD display,PID control,the drying vurve;
Square tray is not easily deformed,easy to operate,easy to clean;
Can be configured inflation valve,ddsposable dry insert gas;
With tamponade,vacuum seal;
The LCD: shelf temperature curve,the cold trap temperature curve,
Sample temperture curve,the curve of the degree of vacuum and the composite curve,
16 programs can be steored,
Freeze dryer program parameters can be modified during operation,
And record the final drying curves,
Circuit system using PID control,
Can connect the computer real-time display of the freeze-dried curve.
Technical parameters:
| Drying Area | 0.1 square meters |
| Condensing temperature | <-50 ° C |
| Pre-freezing temperature | <-50 ° C |
| Tray heating temperature arrange | -40degC to 50 degC |
| Degree of vacuum | <13Pa |
| Panel mounted Material | 1.5liters |
| Water-capture capability | 3kg/24h |
| Tray size | 400 * 280mm |
| The shelf layers | 1 |
| MACHINE SIZE | 850*660*550MM |
