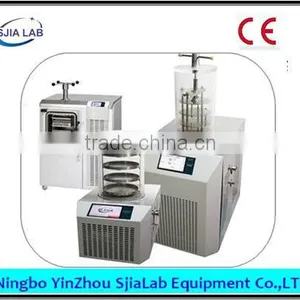

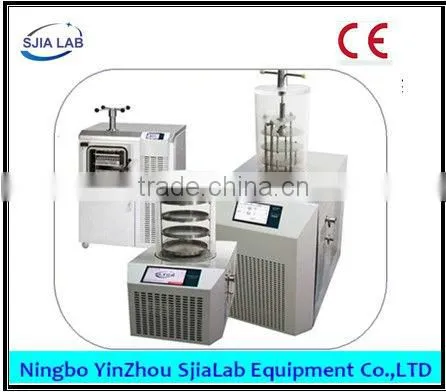

Vertical Type Basice Type 4kgs/24hr Freeze Dryer

Name: Vertical Type Basice Type 4kgs/24hr Freeze Dryer
Brand: SJIA
SKU: 113162587

US$ 1,800 - 2,400 MOQ: 1 Unit

Key Specifications

Condition:

New

Type:

Vacuum Drying Equipment

Place of Origin:

Zhejiang, China

Ningbo Yinzhou Sjialab Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vacuum Drying Equipment

Place of Origin Zhejiang, China

Brand Name SJIA

Model Number SJIA-12N Stopper type/basic type

Voltage 110V or 220V

Power(W) 1000W

Dimension(L*W*H) 800 * 515 * (725 +420 drum) mm

Weight 90kgs

Certification CE

Warranty 12month

After-sales Service Provided Overseas third-party support available

Specifications

CFC-free refrigeration
7inch LCD touch control
LCD display

SJIA-12N freeze dryer is a cost effective and high performance vertical type freeze dryers.

Microprocessor controls.
4 Liters in 24hours ice capacity.
Internal condenser coil-304 or 316 stainless steel.
-50C or -80C condenser lowest temperature.
304 or 316 stainless construction.
CFC-free refrigeration.(optional for customer’s request refrigeration:R507,R410A, etc.)
Heating element to defrost available for optional.
Transparent Acrylic Drum drying chamber for user to observe the drying process.

7’’ LCD touch control ,LCD display

For water based samples, the -50C condenser is the perfect choice with effective cost.

For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.

For labs that need quick turn-around, Heating element to defrost available.

Main Technical Parameters:

Parameters Model	SJIA-10N (Desktop)	SJIA-12N(Vertical)	SJIA-18N	SJIA-18SN heating type
No-load temperature	<-50°C,<-80°C optional	<-50°C,<-80°C optional	<-50°C,<-80°C optional	<-60°C,<-80°C optional
No-load freeze area	0.07-0.12m2	0.09-0.18m2	0.18-0.27m2	0.18-0.27m2
Plate load materials	0.7-1.2L	0.7-2L	2-3.5L	2-3.5L
Ability to capture water	3Kg/24h	4Kg/24h	6Kg/24h	6Kg/24h
Vaccum	<10Pa	<10Pa	<10Pa	<10Pa
Dimension	610 x 395 x 370+420(drum) mm	800 × 515 × (725 +420 drum) mm	830 x 532 x 900+420(drum)	830 x 532 x 900+420(drum)
Material Tray Specifications	Φ200mm four-layered(common) Φ200mm three-layered(with cover)	Φ200mm four-layered 70mm(common) Φ200mm six-layered 50mm(common) Φ200mm three-layered(with cover)	Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) Optional: Φ200mm three-layered(with coverd)	Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) optional Φ200mm three-layered (with cover)
Consuming wattage	1000VA	1000VA	1300VA	1300VA
Voltage	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz

The SJIA-12N vertical top freeze dryer can build with 5 common application different accessories.

The versatile freeze dryer can meet customer’s various application.

	basic type Transparent Acrylic Drum chamber with rack and 4xΦ200mm trays. The trays liquid load 2L; Drying area: 0.18 square meter
	Acrylic Drum with Multi-manifolds: 8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory. The trays liquid load 2L; Drying area: 0.18 square meter
	Top-stoper down type: Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter;
	8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf: The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter;
	(24 or more ports) 24-Port Column Manifold T type is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory.
