Home > Consumer Electronics > Water Heater & Components > Heat Pump Water Heater > Split Type Air To Water Heat Pump for Heating and Hot Water

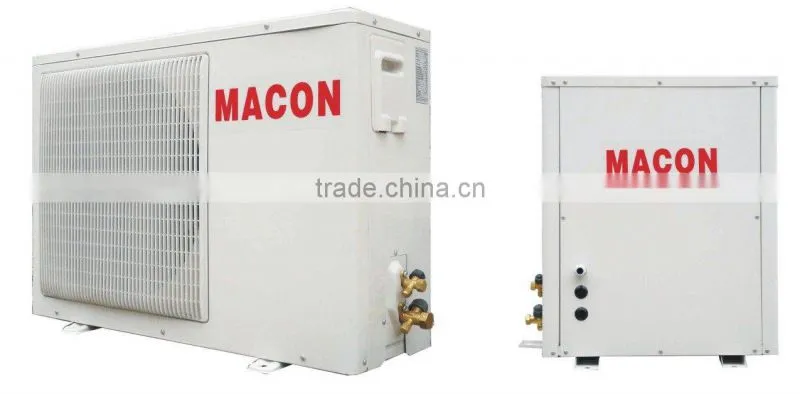

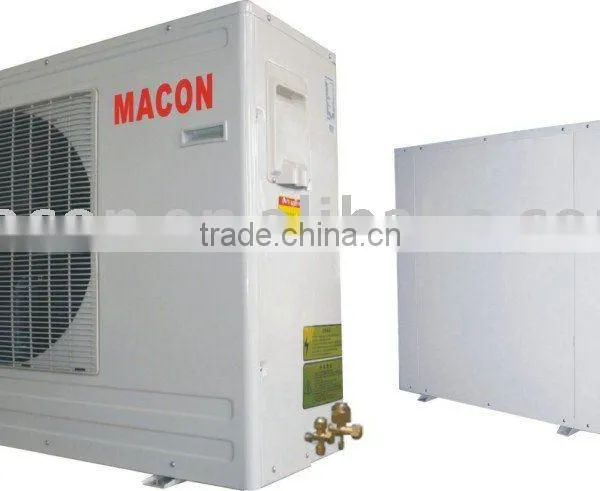

Split Type Air To Water Heat Pump for Heating and Hot Water

Name: Split Type Air To Water Heat Pump for Heating and Hot Water
Brand: MACON
SKU: 113235207

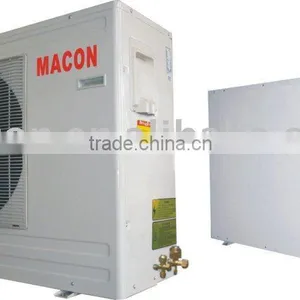

Split Type Air To Water Heat Pump for Heating and Hot Water thumbnail-1

Split Type Air To Water Heat Pump for Heating and Hot Water photo-1

US$ 500 - 3,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Air Source Heat Pump

Installation:

Freestanding

Storage / Tankless:

Instant / Tankless

Contact Supplier Request Quote Chat Now

Foshan Macon Cooling & Heating Energy-Saving Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shunde guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Air Source Heat Pump

Installation Freestanding

Storage / Tankless Instant / Tankless

Housing Material Plastic

Use Bathroom

Certification CE, Other, CE, EMC, CE, RoHS, CE, EMC, RoHS, CCC

Place of Origin Guangdong, China

Brand Name MACON

Model Number MACRW030WA/S,MACRW030F/P

Specifications

Split Type Air To Water Heat Pump
1.heating and hot water
2.Heating capacity: 3--40KW
3.Cover: spraying metal
4.CE, Rohs

Split Type Air To Water Heat Pump for heating and hot water

heating and hot water
Heating capacity: 3--40KW
Cover: spraying metal
CE, Rohs, ISO9001

Working temp: -15---43DC

Output water temp: 60DC

INDOOR UNIT	MACHRW	020W/P(01)D	030W/P(01)D	050W/P(01)SD
OUTDOOR UNIT SIDE FAN	MAFP	020A	030A	050A
Rated Cooling Capacity	kW	5.0	7.5	12.5
Rated Cooling Capacity	BTU/h	17100	25600	42700
Rated Input Power(Cooling)	kW	1.55	2.40	4.00
Rated Input Current(Cooling)	A	7.0	10.9	7.0
Rated Heating Capacity	kW	6.0	9.0	15.0
Rated Heating Capacity	BTU/h	20500	30800	51200
Rated Input Power(Heating)	kW	1.75	2.7	4.50
Rated Input Current(Heating)	A	8.0	12.3	7.9
Rated Output Water	L/h	150	225	375
Power Supply	V/PH/Hz	220/1/50	220/1/50	380/3/50
indoor unit Aux. Electric heater	KW	7.5	7.5	7.5
Aux. Electric heater Current	A	34	34	34
Cycle pump	WILO	1	1	1
Compressor		Rotary	Rotary	Scroll
Compressor Qty		1	1	1
Fan Qty (horizontal)				2
Noise	dB(A)	52	53	54
Refrigerant Liquid Pipe	inch	1/4	3/8	1/2
Refrigerant Gas Pipe	inch	1/2	1/2	3/4
Water outlet/water inlet	inch	1	1	1
Water Flow Volume	m3/h	1.5	2	3
Refrigerant Gas Type		R410A
Indoor unit Net Dimensions(L/M/H)	mm	560/380/740	560/380/740	600/600/760
Indoor unit Shipping Dimensions(L/M/H)	mm	665/480/770	665/480/770	650/730/810
Side fan Outdoor unit Net Dimensions(L/M/H)	mm	840/285/610	830/310/710	930/390/1270
Side fan Outdoor unit Shipping Dimensions(L/M/H)	mm	950/385/660	940/410/760	1080/480/1310
Indoor unit Net Weight	kg	55	60	110
Indoor unit Shipping Weight	kg	60	65	125
Side fan Outdoor unit Net Weight	kg	28	30	70
Side fan Outdoor unit Shipping Weight	kg	32	35	75

Clever design and stronger adaption

Clever split design , makes the instalation of water system components indoor fully , solves the cold water system antifreeze completely, suits the cold regions in particularly.

Compact structure and convenient use

Ultra-thin auxiliary unit design indoor,sharp appearance, compact structure, hidding in the room completely. Water pump and flow switch built-in, effectively reduce the installation area. Smart light body, do not use heavy handling machinery, even ordinary elevator can also be easily transported units installed.

Super cryogenic heating

Optimized system design, ,also can work efficiently even in the harsh environment 15, double high-efficient heating and cooling.

Advanced control, easy operation

Microcomputer intelligent control, any terminal equipment open, host work automatically;all enclosed, host shut automatically.

High efficiency and energy saving

Using high-efficient compressor rotary or scroll and heat exchanger (316 stainless steel brazing type, high-efficient S&C, high-efficient heat exchanger tube), small volume, high heat enchanger, up 10% than the same old units.

Environment Friendly

Using refrigerant 407C or 410A, no damage,environment friendly.

Multiple-protect and safty

With function of power failure memory and protections of power flow,compressor discharge temperature, compressor high and low pressure, overcurrent compressor, power supply phase sequence, anti-freeze, automatic defrost and automatic load regulation ect. Safty and reliability.

Quiet running

Using efficient, low-noise rotary, closed scroll compressors and low-noise fan,ensure quiet running.

Wide application

Widely used in residential apartments, villas, offices, configuration forms don end equipment (fan coil, floor heating, thermal insulation, etc.), combine with indoor water luxury decoration, maximizing satisfy user's requirements and comfortable.
