1. Performance Description
² Reliability:Intelligentized, modularized, simple structure design with powerful function and stable performance; the high-quality components and the strict production process make the inverter suitable for severe environment. It also has reliable performance and long lifespan.
² Pure Sine Wave Output: Compared with square wave and modified sine wave, the inverter has stronger load capacity. The apparatus can drive inductive load and any other AC load within the required power.
² Perfect Protection Function: Battery over voltage, over discharge, anti-reverse protection; output over load, short circuit, over temperature protection; lightning protection etc.
² Optional by-pass function: When the battery is over discharge, the inverter will intelligently switch to Utility grid to drive load.
² Optional light control and time control function: According to illumination intensity, the inverter can control output without manual operation. This function is available with our matched controller.

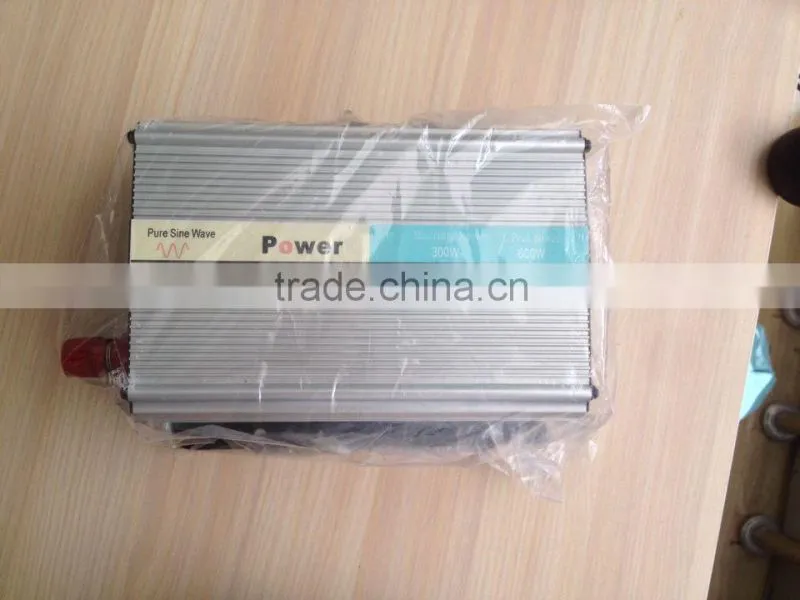

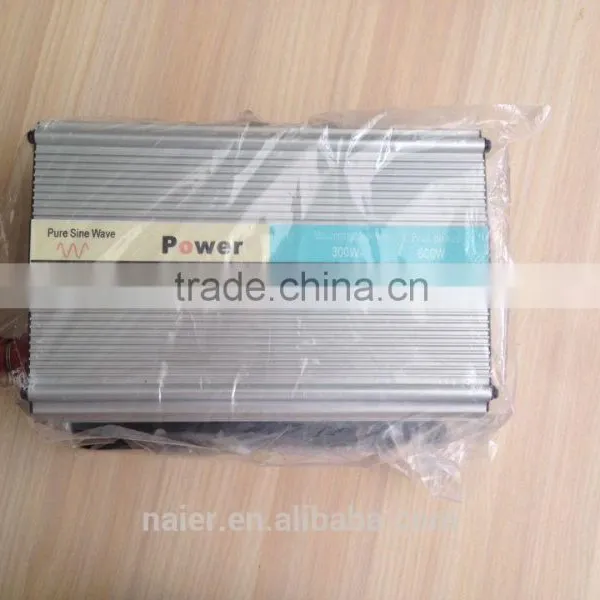

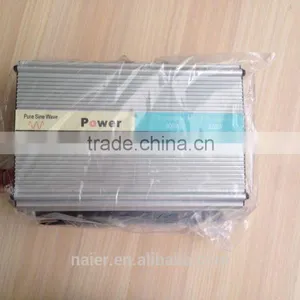

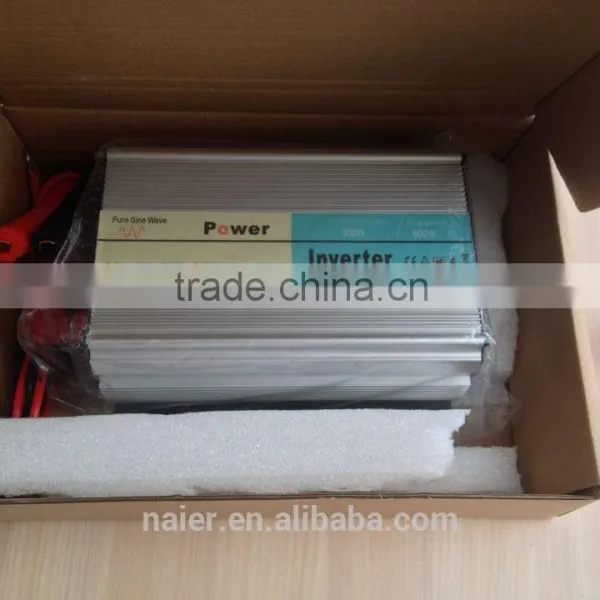

2. Picture
Technical data
Rated Output Capacity |
500VA |
Rated Battery Voltage |
24VDC |
Over Voltage Shutoff |
31VDC |
Over Voltage Recovery |
29.5VDC |
Under Voltage Shutoff |
21VDC |
Under Voltage Recovery |
24VDC |
No-load Loss |
≤0.5A |
Output Wave |
Pure sine Wave |
Rated Output Voltage |
220VAC |
Wave Distortion |
≤4% |
Output Frequency |
50±0.5Hz |
Dynamic Response |
5% |
Power Factor |
≥0.8 |
Over-load Capacity |
120% 1min,150% 10s |
Invert Efficiency |
90% Max |
Noise (1m) |
≤40dB |
Protective function |
Low/Over voltage LED Red light, |
