low rpm 300w 12v/24v dc generator PMG

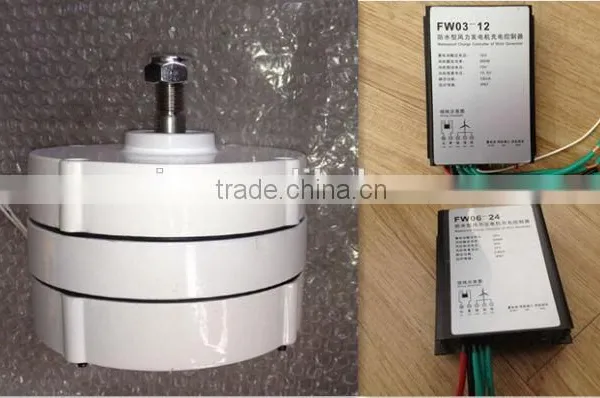

Pictures:

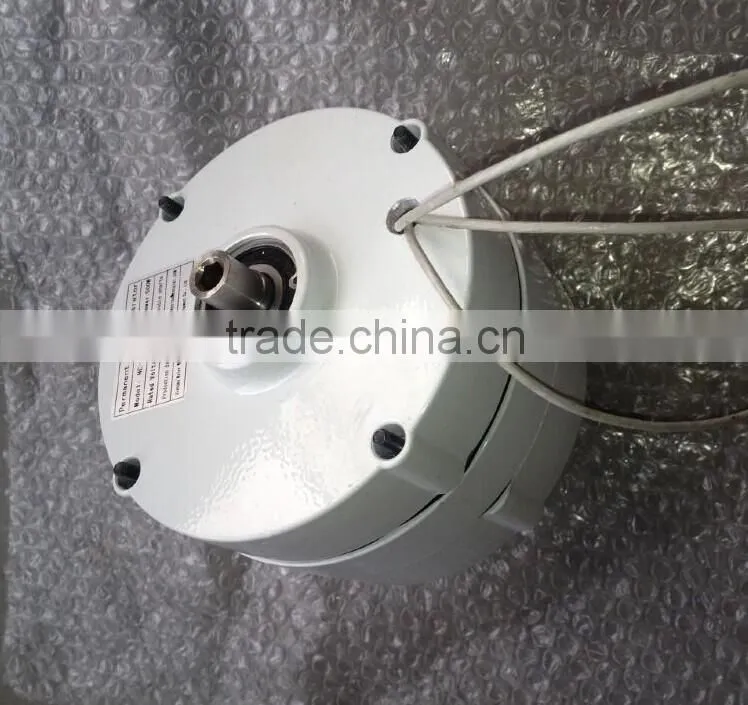

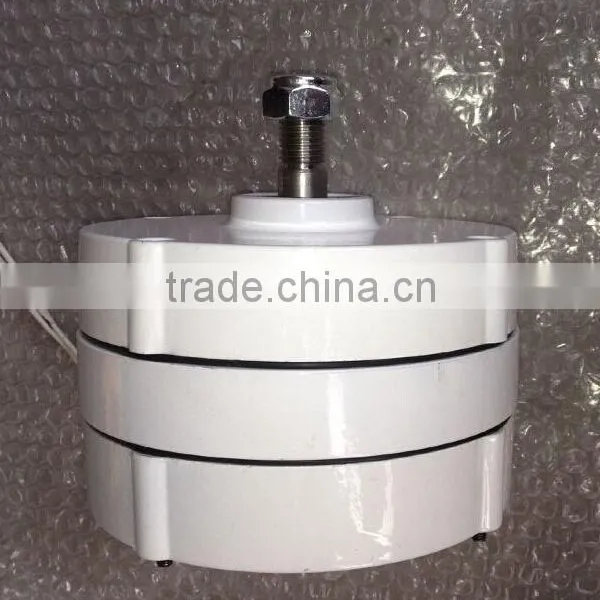

permanent magnet generator

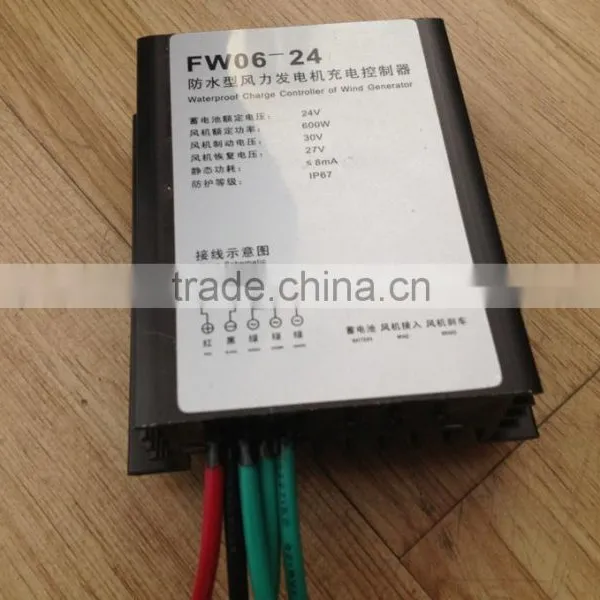

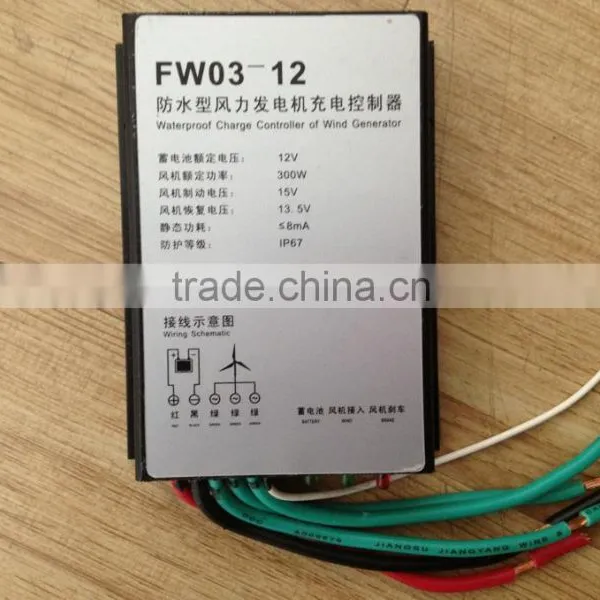

waterproof controller: 12v and 24v for your option
Features:
1. NdFeB rare earth permanent magnet generator
2. low start-up torque, wind energy utilization high; small size, beautiful appearance, low vibration
3. human friendly design, easy installation, maintenance and repair.
4. permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque and enhance generation perfomance
5. Aluminium alloy body,anti-corrosion/water, maintainence-free
Technical parameters:
Model |
NE-300M |
Rated Power(w) |
300w |
Rated Voltage(v) |
12/24v |
Rated rotated speed(r/m) |
600r/m |
Top net weight(kg) |
4.3kg |
Output Current |
AC |
generator |
3 phase permanent magnet synchronous generator |
Insulation Class: |
F |
Bearing |
HRB or for your order |
Shaft Material |
stainless steel |
Shell Material |
aluminium alloy |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |
Product Details:
