We Factory offer OEM Service. Tell me the rpm, voltage, herts of the generator you need. Please click here to contact Our Sales-Jessica Xu for details.
Features:
- Low start up speed;
- Low cogging torque
- permanent magnet ac generator 50kw
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
Product Image:

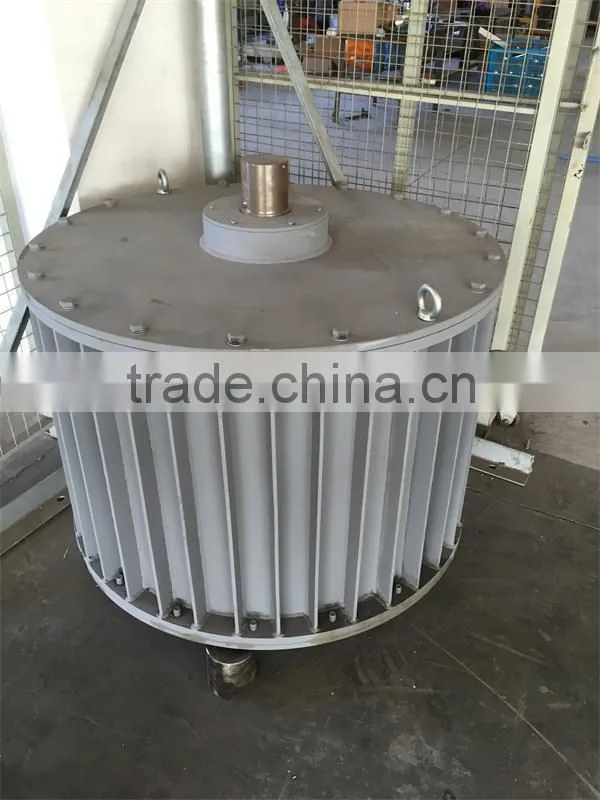

Half finished 50kw low rpm permanent magnet generator
Generator case making

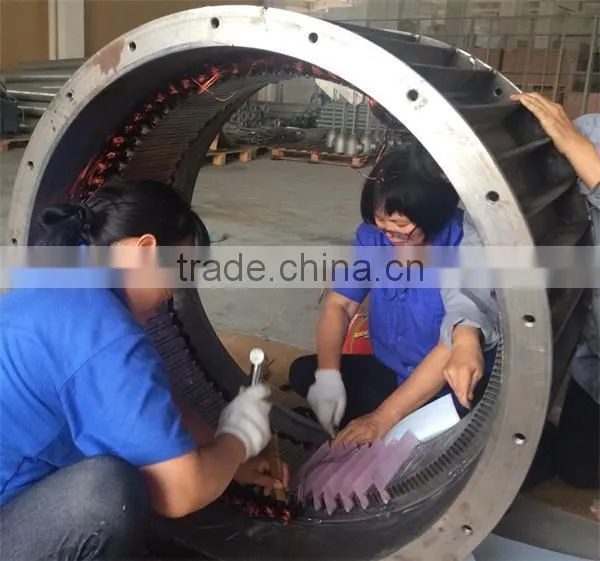

Winding for 50kw low rpm permanent magnet generator
Technical data
Rated Power(w) |
50kw |
Max Power(w) |
60kw |
Rated Voltage(v) |
380V/420V |
Rated rotated speed(r/m) |
78 r/m or customized |
Top net weight(kg) |
1000kg |
Output Current |
AC |
Rated Torque(N*M): |
6121.8 Nm |
generator |
3 phase permanent magnet synchronous generator |
Insulation Class: |
F |
Service Life: |
More Than 20 years |
Bearing |
HRB or for your order |
Shaft Material |
Iron |
Shell Material |
Carbon Steel |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |
Contact me for details by CLICK HERE:
