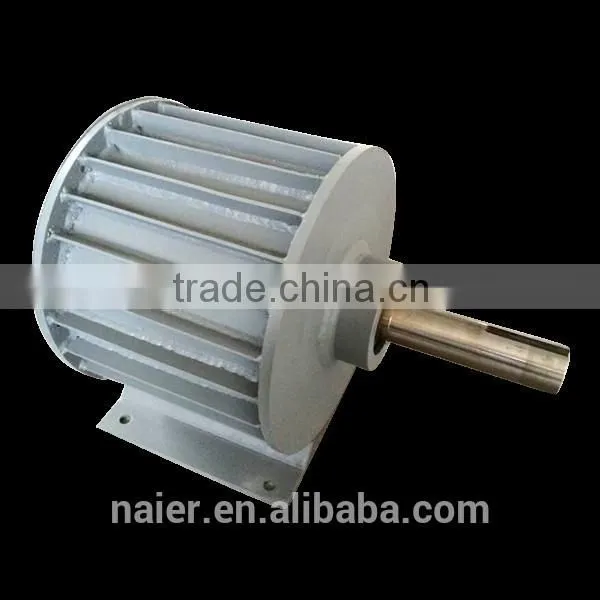

Help Center30kw Permanent Magnet Synchronous Generator for Sale Quality Choice
Related Products
-
30kw Low Torque Permanent Magnet Synchronous GeneratorUS$ 8,000 - 11,000MOQ: 1 Carton -
30kw Low Speed Permanent Magnet Generator PmgUS$ 8,000 - 11,000MOQ: 1 Carton
-
Naier Brand 10kw Permanent Magnet GeneratorUS$ 2,600 - 3,000MOQ: 1 Carton
-
20kw Permanent Magnet Generator Made In ChinaUS$ 5,000 - 5,500MOQ: 1 Carton
-
Low Rpm 20kw PMG Generator for SaleUS$ 5,000 - 5,500MOQ: 1 Carton
We Factory offer OEM Service. Tell me the rpm, voltage, herts of the generator you need. Please click here to contact Our Sales-Jessica Xu for details.
Features:
- Low start up speed;
- Low cogging torque
- 30kw low rpm permanent magnet generator
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
Product Image:

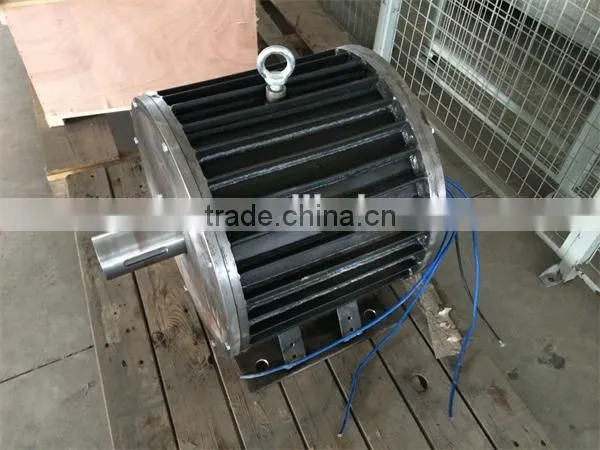

Half finished 30kw low rpm permanent magnet generator
Generator case making
Winding for 30kw low rpm permanent magnet generator
Technical data
Model |
NE-30kw |
Rated Power(w) |
30kw |
Max Power(w) |
38kw |
Rated Voltage(v) |
220V/380V/420V |
Rated rotated speed(r/m) |
170r/m |
Top net weight(kg) |
380kg |
Output Current |
AC |
Rated Torque(N*M): |
1685.3 Nm |
generator |
3 phase permanent magnet synchronous generator |
Insulation Class: |
F |
Service Life: |
More Than 20 years |
Bearing |
HRB or for your order |
Shaft Material |
Iron |
Shell Material |
Carbon Steel |
Permanent Magnet Material |
Rare Earth NdFeB |
Protection Grade |
IP54 |
Lubrication |
Lubrication Grease |
Working temperature |
-40℃ - 80 ℃ |
Contact me for details by CLICK HERE:
Trade Show:
Motor-PMG- Home loads
