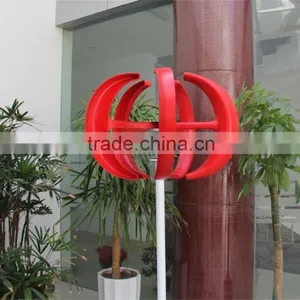

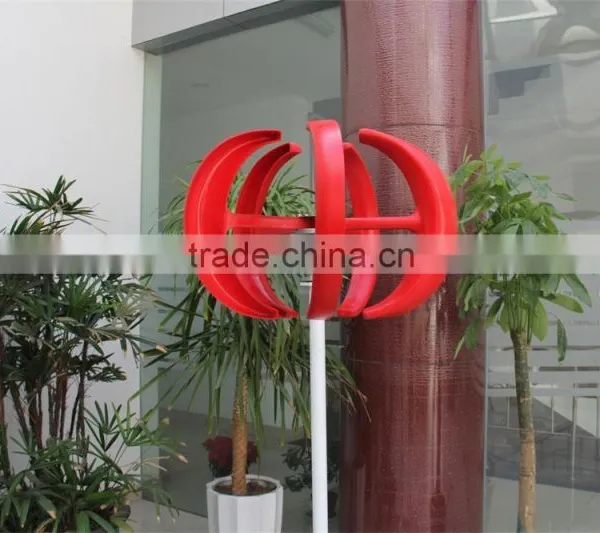

100w-300w Vertical Wind Generator/ Vawt

Name: 100w-300w Vertical Wind Generator/ Vawt
Brand: Naier
SKU: 113305341

US$ 150 - 400 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Naier

Model Number:

R-200W

Jiangsu Naier Wind Power Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/ for your request

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Naier

Model Number R-200W

Type Wind Power Generator

100w-300w vertical wind generator/ vawt application:

vawt features:

1,VAWTs are better able to harvest turbulent air flow found around buildings and other structures

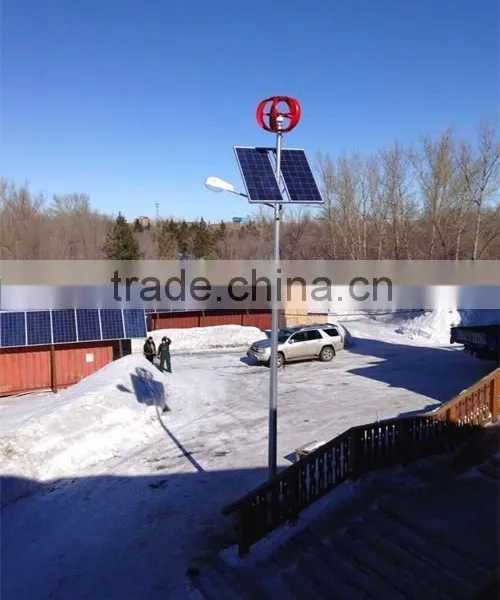

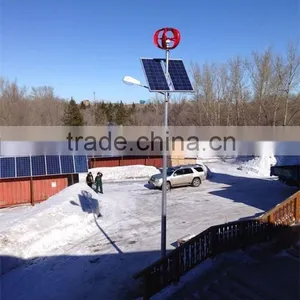

2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending

on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased

energy output

3,Simple to install and maintain

vawt technical data:

Rated power	100w	200w	300w
Maximum power	130w	230w	330w
Rated voltage	12/24v	12/24v	12/24v
Start-up wind speed	1.3m/s	1.3m/s	1.3m/s
Rated wind speed	11m/s	11.5m/s	13m/s
Survival wind speed	50m/s	50m/s	50m/s
Top net weight	11kg	11.5kg	12kg
Gross	20kg
Packaging size	64x43x32cm
Wheel diameter	0.8m	0.8m	0.8m
wheel height	0.6m	0.6m	0.6m
Number of blades	5
Blades material	reinforced glass fiber
Generator	three phase ac permanent magnet generator
Magnet	NdFeB
Generator case	aluminum alloy
Control system	electronic magnet
Speed regulation	auto windward
Working temperature	-40-80℃
