Features for 300w vertical axis wind generator kit
Vertical axis wind turbine (VAWT) is a type of wind turbine whose main rotor shaft is set vertically and the main components are located at the base of the turbine.
There are many advantages of vertical axis wind turbines (VAWTs):
- VAWTs are not affected by the direction of the wind, which is useful in areas where the wind changes direction frequently and quickly. Unlike traditional horizontal axis wind turbines, a yaw mechanism is not needed to turn the wind turbine towards the wind.
- Because of this, VAWTs outperform horizontal axis turbines in areas where a tall tower isn't feasible
- VAWTs are better able to harvest turbulent air flow found around buildings and other structures
- VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output
- Simple to install and maintain
- Quiet operation
- Pleasant appearance
Picture 300w vertical axis wind generator kit
Description 300w vertical axis wind generator kit
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, with a special kind of stator design, efficiently decrease resistance torque. Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.
Technical data 300w vertical axis wind generator kit
Model |
NE-300RV |
generator power |
300w |
Wheel diameter |
0.8m |
turbine height |
0.6m |
Blades material |
Nylon fiber |
Number of blades |
5 |
Rated wind speed |
11m/s |
Start-up wind turbine |
1.5m/s |
Survival wind turbine |
45m/s |
Output voltage |
12v/24V |
Net Weight |
14kg |
Generator type |
3phase AC PMG |
Control system |
Electromagnet |
Speed regulation |
Automatically adjust windward direction |
Lubrication way |
Lubrication grease |
Working temperature |
From -40℃ to 80℃ |

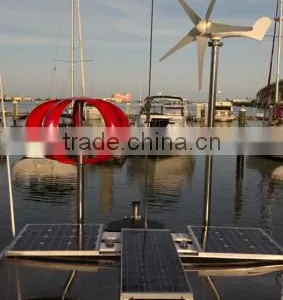

Applications for 300w vertical axis wind generator kit

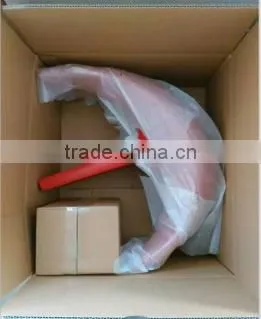

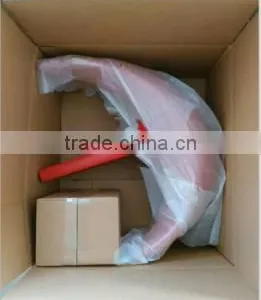

Packing and shipping for 300w vertical axis wind generator kit
Certification
