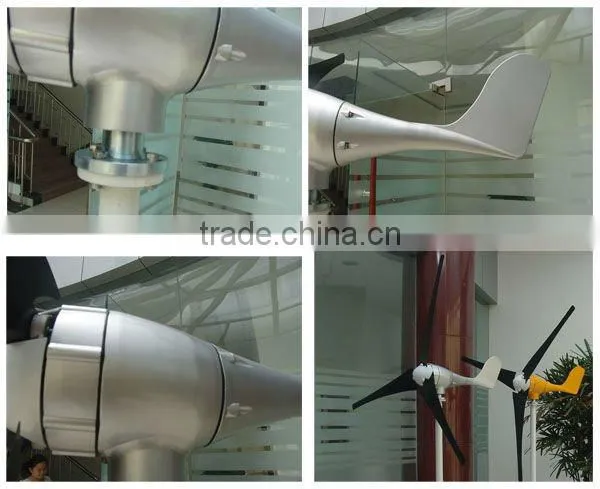

Windmills DC24v 600w

Name: Windmills DC24v 600w
Brand: NaiEr
SKU: 113306705

US$ 210 - 420 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

NaiEr

Model Number:

NE-600

Jiangsu Naier Wind Power Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name NaiEr

Model Number NE-600

Type Generator

Electricity Generator Type Wind Power

Output Voltage (V) 24

Specifications

1,windmill generator
2,net weight 15kg,high wind energy utilization
4,low vibration operation
5,low resistance

Features

1. Starting with low speed; high wind energy utilization; beautiful appearance; low vibration on operation.

2. Being installed by human design and easy for installation, maintenance and repair.

3. Being molded through precise injection with new process, together with the optimized design of

aerodynamic contour and structure, our wind turbine blades have such advantages: high utilization of

wind energy which contributes to the annual energy output.

4. Our generators, adopting patented permanent magnet rotor alternator, with a special kind of stator

design, efficiently decrease resistance torque of the generators. Meanwhile, it makes the wind turbines

match the generators quite well and increase the reliability of their operation.

Wind generator technical data

Model	NE-500	NE-600
Rated power	500W	600W
Maximun power	530W	630w
Rated voltage	12/24/48V	12/24/48v
Start-up wind turbine	2.5m/s	2.5m/s
Rated wind speed	13m/s	13m/s
Survival wind turbine	45m/s	45m/s
Top net weight	15kg	15.5kg
Wheel diameter	1.8m	1.8m
Number of blades	3
Blades material	Nylon fiber
generator	Three phase permanent magnet ac synchronous generator
magnet	NdFeB
Generator case	Casting aluminum alloy
Control system	Electromagnet/wind wheel yaw
Speed regulation	Automatically adjust windward direction
Working temperature	-40°C - 80°C
Design life	20 y
Gross weight	17kg
Package Dimension	930370260mm
