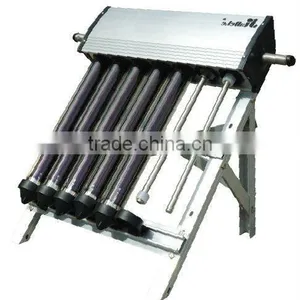

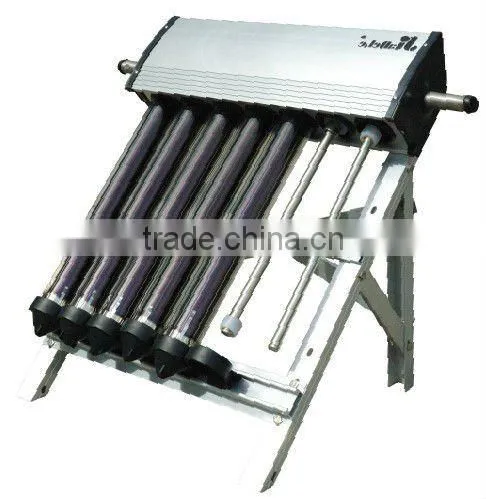

Stainless Steel Heat Pipe Solar Collector
US$ 100 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JIADELE
Model Number:
JDL-PM10-58/1.8
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ Ningbo/ Hangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
JIADELE
Model Number
JDL-PM10-58/1.8
Type
Vacuum Solar Collector
Application
Solar Thermal
Pipe Material
Other, solar vacuum tube with heat pipe
Specifications
1) stainless steel heat pipe solar collector2) SK SRCC CE ISO9001approved
3) highest efficiency
4) best quality
5) special
stainless steel heat pipe solar collector
Remark:
Manifold connection(inch):1/2 3/4
Test pressure(pa):1MPa
Operating fluid ppressure(pa):0.6MPa
Max. service temperature:95
Max. stagnation temperature:200
Distance from tube to tube:75
Flow range recommendation:50-150l/m2h
Insulation thickness(mm):30
Min. collector angle(degree):15
Max. collector angle(degree):75
Inner pipe diameter(mm): 51mm
Stainless steel heat pipe diameter(mm): 16mm
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2005
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
