Help CenterAutomatic Vertical & Horizontal Three Layers Car Parking Equipment
Related Products
-
Smart Car Parking Equipment With Three LayerUS$ 2,600 - 2,700MOQ: 1 Unit -
2-4 Layer Underground Car Parking Lift With CE and ISO CertificationUS$ 2,600 - 2,700MOQ: 1 Unit
-
Intelligent Puzzle Parking System With Low PriceUS$ 2,600 - 2,700MOQ: 1 Unit
-
Smart Home Garage Tilting Two Post Parking Car Lift With Hydraulic DriveUS$ 1,000 - 10,000MOQ: 1 Set
-
Hydraulic Two Post Tilting Parking Lift for Home GarageUS$ 1,000 - 10,000MOQ: 1 Set
Specifications
three level parking equipmentsafe and reliable
Easy and fast installation
More used in home and public place

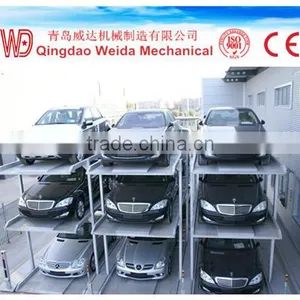

Three Layers Car Parking Equipment
Can be customized according to customer requirements
Except the top floor, each floor has a spare parking space and front-rear guide rails. Each parking space has a pallet which moves horizontally on the guide rail. The pallets on the top floor make up-down movements while the ones on the ground floor make left-right horizontal movements, the other ones can move either left to right or up and down.Through continuous space shift, parking and fetch
Features:
1, Multi-deck parking facility can create more parking space with higher space utilization rate.
2, Directly installed on ground,easy for construction,saving construction time.
3, Safety highly guaranteed.The system has the following safety protection devices:fall prevention,urgent stop button,beyond limit running prevention,front and rear improper parking photo electtic detection,over-height detection and alarm.
About the customized size:
If the size of the platform need to be customized based on customer requirements, difficulties might arise when entering or exiting the cars on the parking units. This depends on car type, the access and the individual driving behavior.
Operating device:
The position of the operating device depends on the project (switch post, house wall). From bottom of the shaft to the operating device an empty pipe DN40 with taut wire is necessary.
Temperature:
The installation is designed to operate between +5°and +40°C. Atmospheric Humidity: 50% at +40°C. If the local circumstances differ from the above please contact us to take other measures.
Maintenance:
Regular maintenance by qualified personnel can be provided by means of an Annual Service Contract.
If you want more details about our machine,please contact us
Add:NO.1 Weida Road Ducun Eastern Industrial District,Jiaozhou Qingdao,Shandong
Tel:0532-85239588
Fax:0532-85239566
Http://
