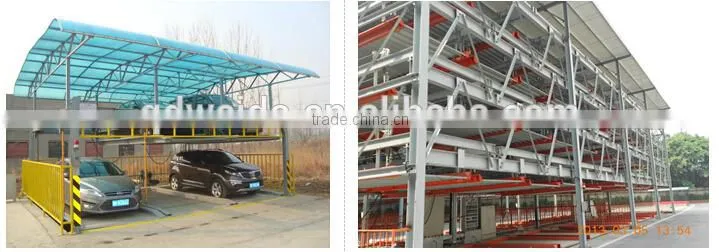

PSH car parking system/puzzle parking system with CE and ISO 9001 and CE certification
We can design a reasonable plan asccording to your requirement

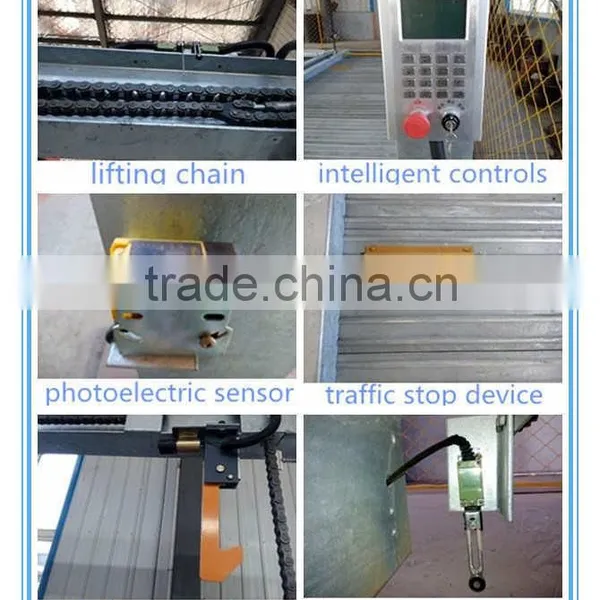

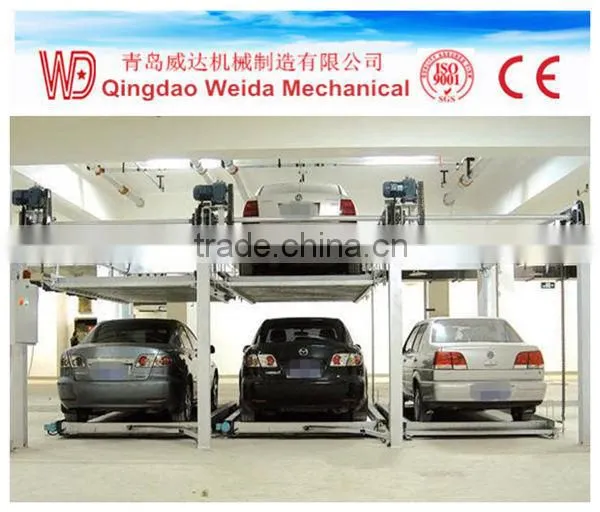

This PSH car parking system is It's popular as safety and fast. Stake cars to 2-8 layers depends on conventional parking slot arrangement. Adopt motor driving with chain or steel rope transmission system, stacking car by lifting and sliding pallet. Every sliding layer leaves a free space for other layer pallet lifting. Every unit runs independently and optional capacity per unit effectively controls the peak time car flow. PLC program help modern management requirement. 7 times load rate and covered with multiplex electric protection to ensure safety.
Advantages:
1. Simple structure, low cost, easy operation/ installation /maintenance.
2. Suitable for basement parking, over ground or with pit, can make 2-8 layers.
3. Very flexible to assemble and disassemble, freely distribution and combination.

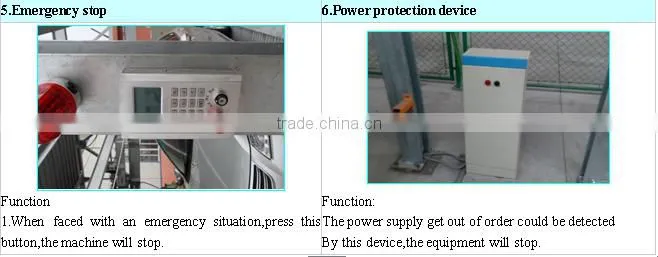

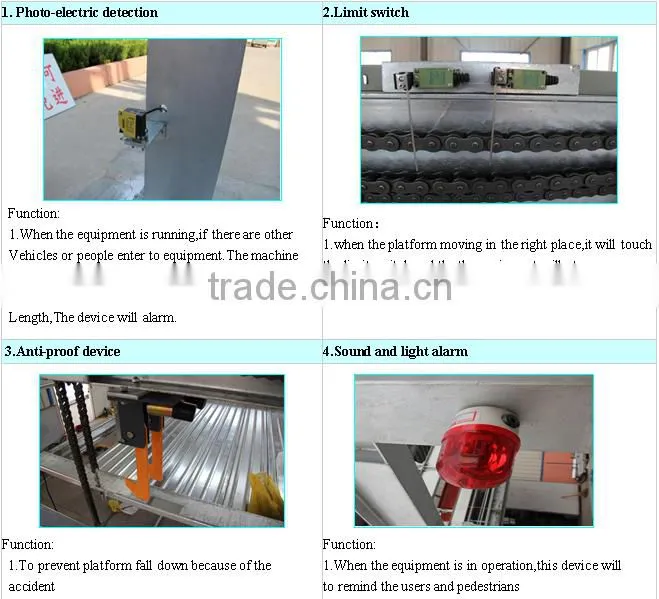

4. Security protection: Anti-falling hook, E.Stop, over limit protection devices.
5. Multiple operation modes, including card reading, keypad and manual mode help management and charging.
Thechnical data:
|
Parking quantity.............................8/7/6/5/4/3/2×N(column)-7/-6/-5/-4/-3/-2/-1 Car weight………………….........≤2000kg(for normal car) ............................................≤2500kg (for SUV) Suitable for vehicle ………...........≤5000*1850*1550 mm (for normal car) ………...........................≤5000*2000*1950 mm (for SUV) Lifting speed……………..........…4~7m/min Sliding speed………….......……..7~10m/min Lifting motor power………...........2~3 decks 2.2KW ……......................…..4~7 decks 3.7kw Sliding motor power……..........…0.2kw Power voltage…………….....….380V/3phrase 50HZ Operation mode………….....…..Button / IC card |

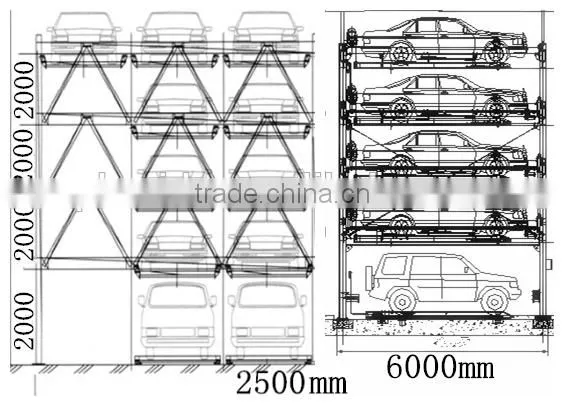

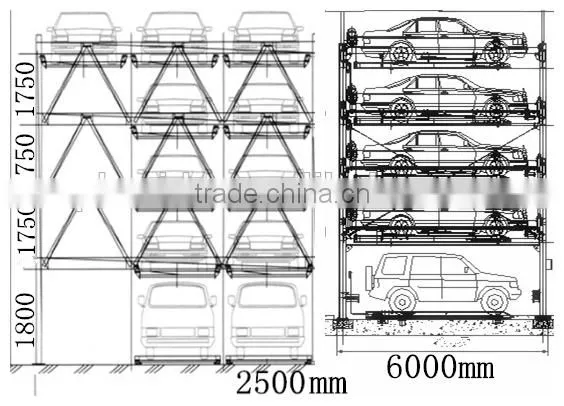

Size of equipment:Takes 5 level parking equipment for example
For Normal Car
For SUV
The steel information of PSH car parking equipment:
Item |
Data |
||||||
Material: |
Q235 Hot rolled steel H type |
||||||
The yield strength: |
235MPa |
||||||
The tensile strength: |
370-500MPa |
||||||
Moment of inertia of an area: |
Ix=4717 cm4 Iy=1601cm4 |
||||||
Radius of gyration: |
ix=8.62cm iy=5.02cm |
||||||
Section factor: |
Wx=472cm3 Wy=160cm3 |
||||||
Size | |||||||
Mode |
Height |
Width |
Thickness of Floor-beam webs |
Thickness of flange |
Corner radius |
Theoretical weight |
|
HW200×200a |
200 |
200 |
8mm |
12mm |
16mm |
50.5(kg/m) |
|
Qingdao Weida Parking Equipment
Manufacturing Co., Ltd belongs to Qingdao Weida Group.We are a professional manufacturer in car
parking equipment with best price and good quality
Our main products includes: PSH type car parking system, Tower parking system, Pit type car parking system, Simple car parking lift, car lift etc.
Trust us, your best choice!
please visit:
1. Installation
1) We will dispatch two resident field engineer to instruct the Installation When the equipment needs to be installed.(Tickets cost and accommodation should be on customer's count. The life subsidy of each technician is US$ 80 per day whose safety should be taken charge by your company) .
2) The Seller shall be responsible for the training of the technical personnel dispatched by the Buyer.
2. The guarantee period of service commitment
1)Provide one set of spare parts for free.
2)The main steel assurance period 5 years and the electrical parts assurance period 2 year. When signing a contract according to different products in the contract with detailed warranty agreed to in the contract,shall prevail.
3)The service tenet: quick, decisive ,considerate ,user first ;Our service is always running through design, manufacture, delivery, installation, debugging, acceptance, used, quality assurance period after the whole process maintenan.
3. The warranty period quality processing commitment
After-sales personnel to the timely judge the cause of the accident ,are quickly solve problems ,can handle in time,
immediately processing, cannot be handled in time by the customer agrees to ,to take all measures that can ,try to
ensure that the operation of equipment.
If you really need to change of spare parts or equipment ,we promise unconditional replacement ,the warranty period replacement parts are free(user party man-made damage and wearing parts except).
4.Routine maintenance
1)We will send you a maintaining guide manual of the equipment
2)The Seller shall be responsible for the training of the worker dispatched by the Buyer.We will ensure that your worker can be competent for operation and maintenance of equipment
