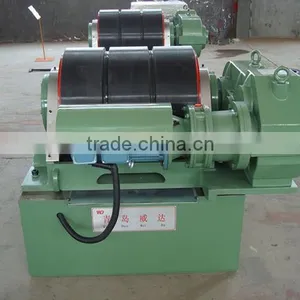

Pipe Welding Rotator With Low Price

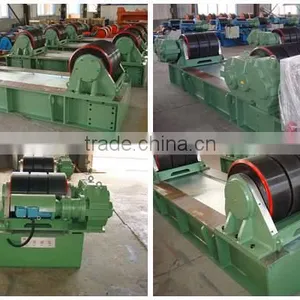

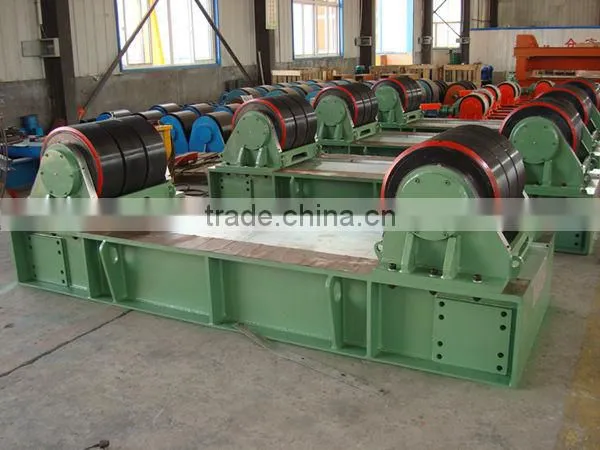

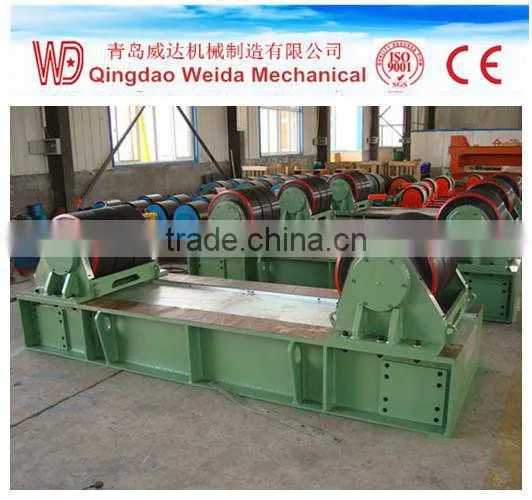

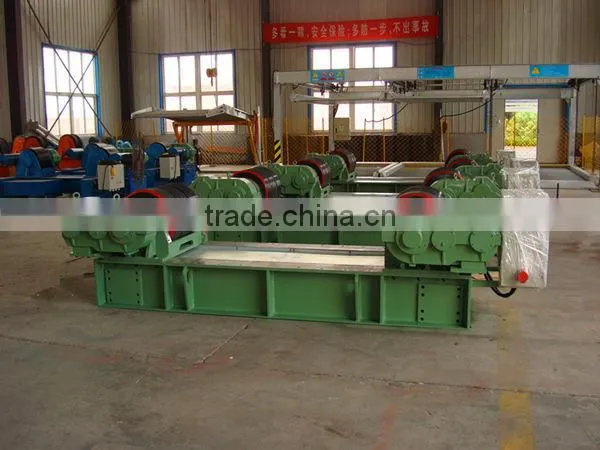

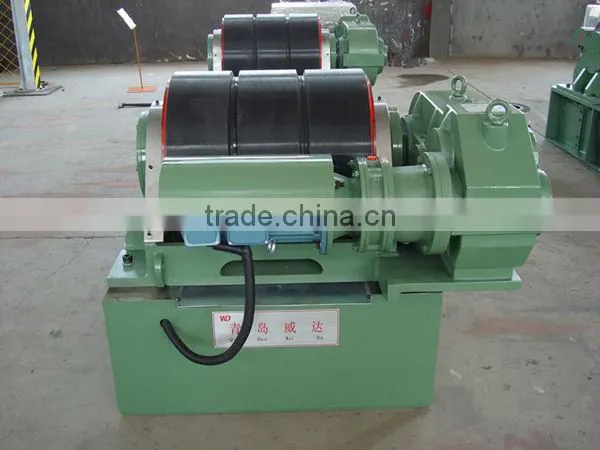

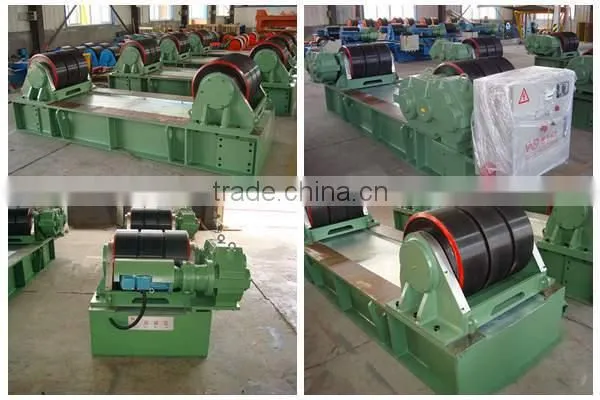

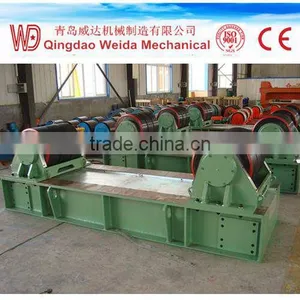

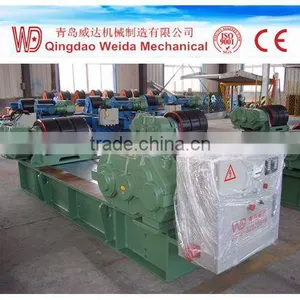

1. This kind of Pipe Welding Rotator (adjustable) is using screw or bolt for regulation,large ton adopts prepared screw or bolt to adjust central distance of roller,so as to adjust to the change of diameter of work piece.
2. Steel glue assembly roller,long ton adopts full steel roller,which feasures in large loading capacity and driven capacity.
3. Excellent speed reducing driven organ
4. Frequency conversion stepless speed rregulation,which is simple and reliable.
5. Manual control box operation,which can be remote controlled.

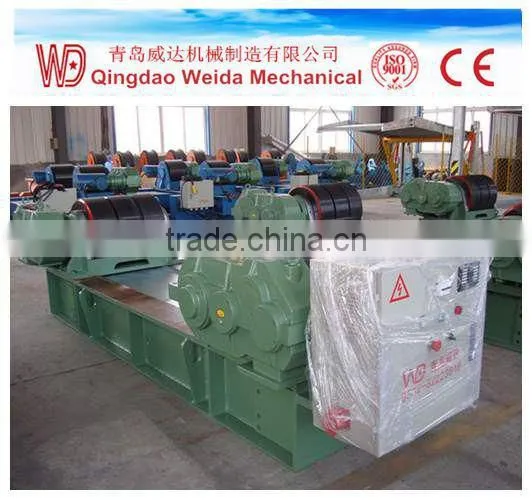

We have advanced processing equipment and skilled workers
packing According to export standardensure product quality.
| Carrying Capacity(T) | Roller Diameter(mm) | Roller width(mm) | Roller speed(m/h) | Adaptation welding Rotator(mm) | Speed control mode |
| 2 | 180 | 100 | 6-60 | 220-1200 | frequency speed control |
| 5 | 200 | 130 | 6-60 | 250-2200 | |
| 10 | 300 | 150 | 6-60 | 320-3500 | |
| 20 | 300 | 200 | 6-60 | 450-3500 | |
| 30 | 350 | 250 | 6-60 | 500-4500 | |
| 50 | 400 | 300 | 6-60 | 500-4500 | |
| 70 | 400 | 300 | 6-60 | 600-5000 | |
| 100 | 500 | 300 | 6-60 | 700-5500 | |
| 150 | 500 | 300 | 6-60 | 800-6000 | |
| 200 | 600 | 300 | 6-60 | 800-6000 | |
| 250 | 600 | 320 | 6-60 | 800-6000 | |
| 300 | 800 | 320 | 6-60 | 1000-6500 | |
| 350 | 800 | 350 | 6-60 | 1000-6500 | |
| 400 | 800 | 350 | 6-60 | 1000-7000 | |
| 450 | 800 | 350 | 6-60 | 1000-7000 | |
| 550 | 800 | 350 | 6-60 | 1000-8000 |
If you want more details about our welding machine,please contact us
Add:NO.1 Weida Road Ducun Eastern Industrial District,Jiaozhou Qingdao,Shandong
Tel:0532-85239588
Fax:0532-85239566
