Specifications
Welding Rotator1. CE & ISO approved
2. Remote control available
3.Can be customized
4. Import electric component

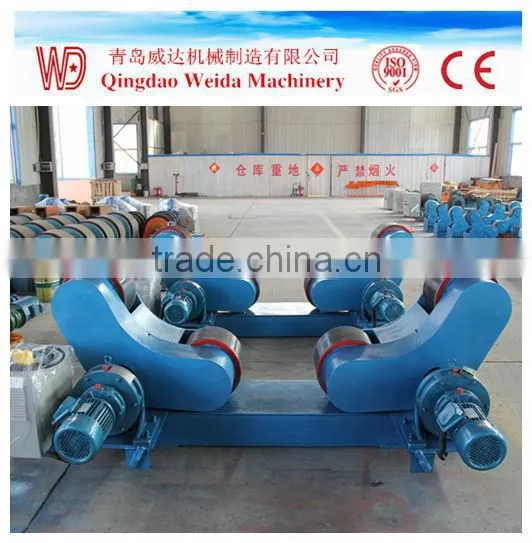

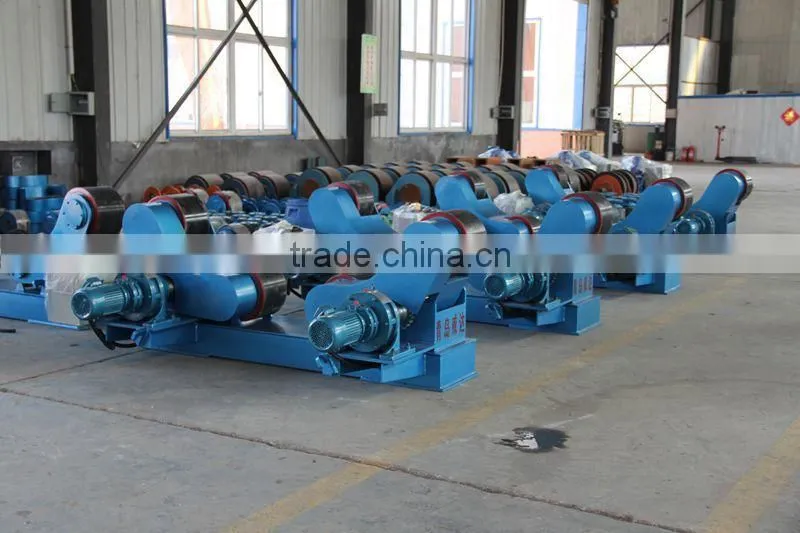

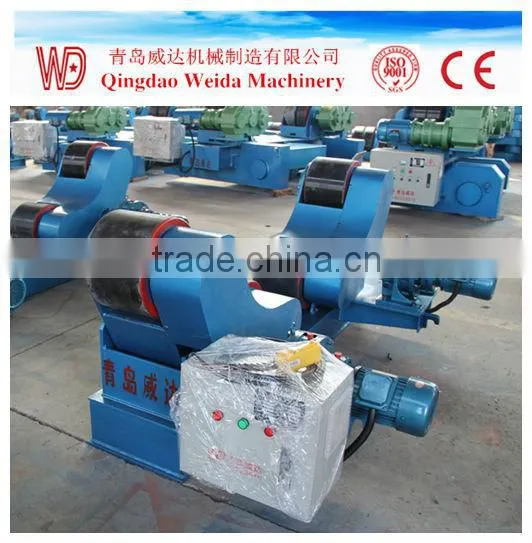

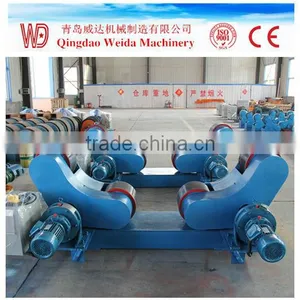

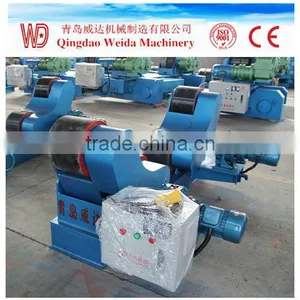

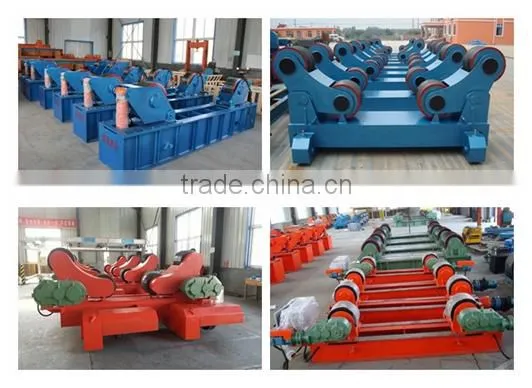

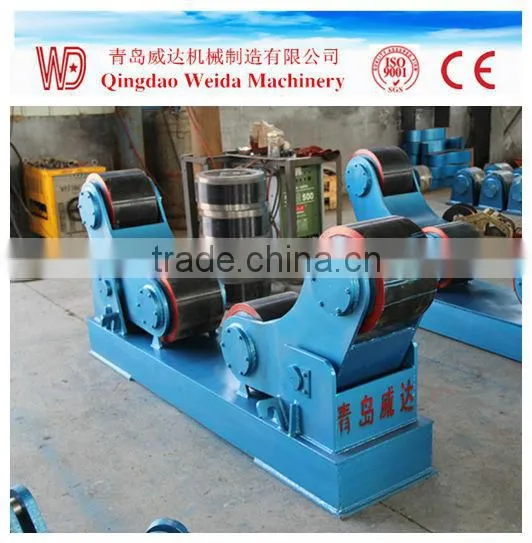

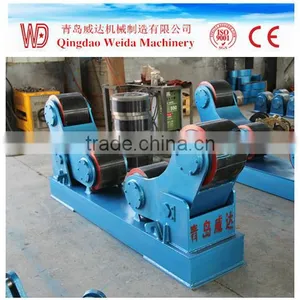

ZT Series Adjustable Welding Rotator With CE and ISO9001

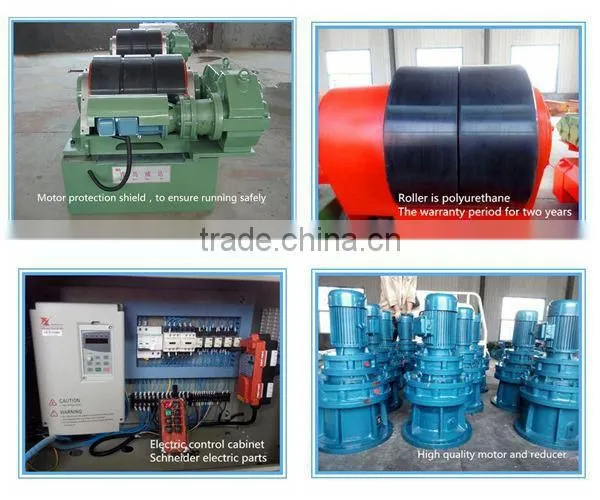

This welding rotator is used to weld,polish and assemble the cylinder-shells,and to line the shells with rubber.It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter,and the linear velocity is displayed by the digital.We also can design the customize various types of the welding rotator in accordance with the customers requirement.
Application:
1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job

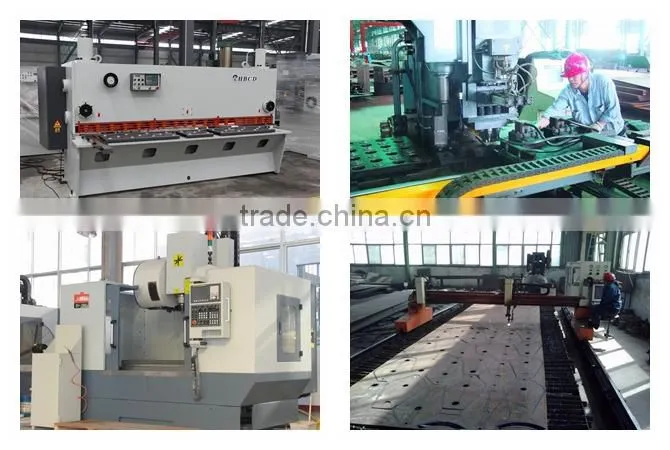

We have advanced processing equipment and skilled workers

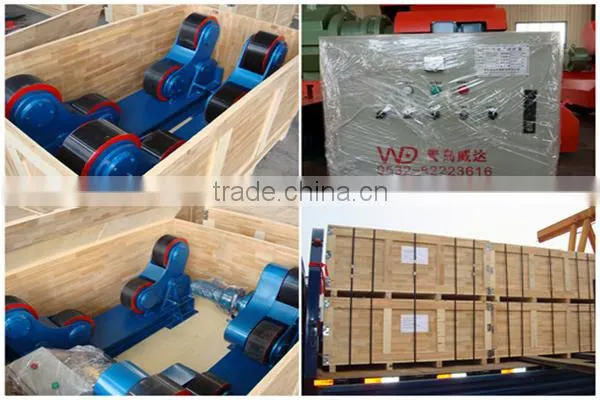

packing According to export standardensure product quality.
| Carrying Capacity(T) | Roller Diameter(mm) | Roller width(mm) | Roller speed(m/h) | Adaptation welding Rotator(mm) | Speed control mode |
| 2 | 180 | 100 | 6-60 | 220-1200 | frequency speed control |
| 5 | 200 | 130 | 6-60 | 250-2200 | |
| 10 | 300 | 150 | 6-60 | 320-3500 | |
| 20 | 300 | 200 | 6-60 | 450-3500 | |
| 30 | 350 | 250 | 6-60 | 500-4500 | |
| 50 | 400 | 300 | 6-60 | 500-4500 | |
| 70 | 400 | 300 | 6-60 | 600-5000 | |
| 100 | 500 | 300 | 6-60 | 700-5500 | |
| 150 | 500 | 300 | 6-60 | 800-6000 | |
| 200 | 600 | 300 | 6-60 | 800-6000 | |
| 250 | 600 | 320 | 6-60 | 800-6000 | |
| 300 | 800 | 320 | 6-60 | 1000-6500 | |
| 350 | 800 | 350 | 6-60 | 1000-6500 | |
| 400 | 800 | 350 | 6-60 | 1000-7000 | |
| 450 | 800 | 350 | 6-60 | 1000-7000 | |
| 550 | 800 | 350 | 6-60 | 1000-8000 |
If you want more details about our welding machine,please contact us
Add:NO.1 Weida Road Ducun Eastern Industrial District,Jiaozhou Qingdao,Shandong
Tel:0532-85239588
Fax:0532-85239566
Http://
