Help Center200L Jiadele High Pressure Soar Water Heater
Related Products
-
150L Jiadele Solar Energy With Pressure Water TankUS$ 279.00 - 279.00MOQ: 1 Piece -
300L High Quality Compact Pressurized Solar Water HeaterUS$ 479.50 - 479.50MOQ: 1 Set
-
250L High Quality Compact Pressurized Solar Water HeaterUS$ 413.10 - 413.10MOQ: 1 Set
-
200L High Quality Compact Pressurized Solar Water HeaterUS$ 339.30 - 339.30MOQ: 1 Set
-
100L High Quality Compact Pressurized Solar Water HeaterUS$ 196.00 - 196.00MOQ: 1 Set

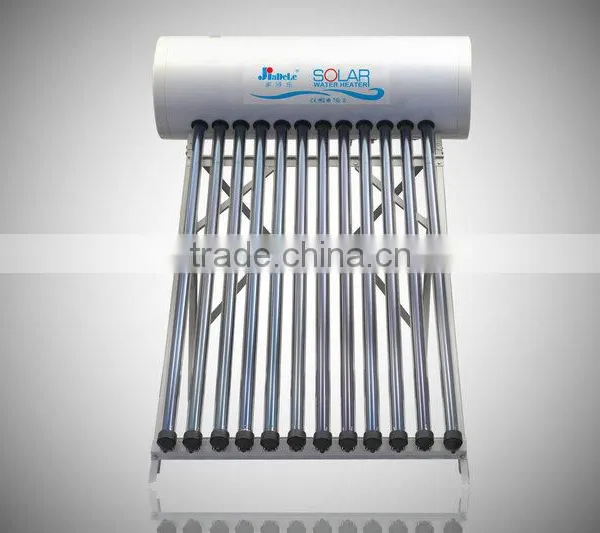

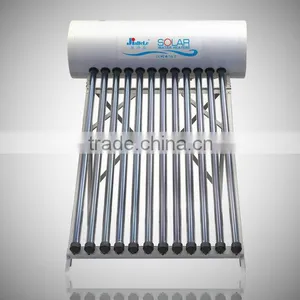

1. Compact Pressurized Solar Water Heater
Work with high pressure. Therefore, the warm water comes out with pressure too. It uses the heat pipe to deliver heat energy, water is heated rapidly. Each tube can work alone, so it can work even if one tube is broken.
Key Specification:
1) inner tank: SUS 304-2B food grade stainless steel sheet, thickness:1.2mm
2) outer tank: galvanized steel, thickness:0.40mm

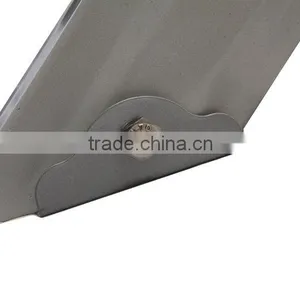

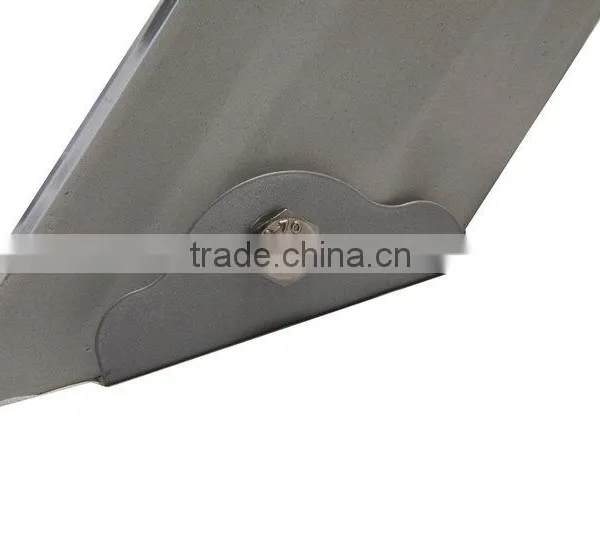

3) frame: galvanized sheet with electrostatic plastic coating, thickness: 1.5mm

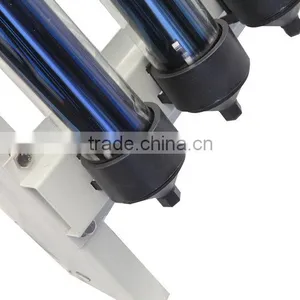

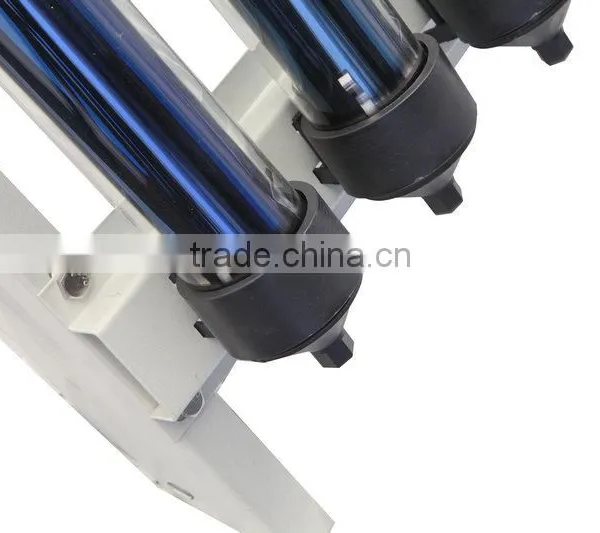

4) vacuum tube: high boron silicon glass with aluminum/red copper/ stainless steel bloomed, ST=300;
5) insulation layer: Polyurethane, thickness: 55mm
REMARK:
Solar heat storage tank diameter(mm):370/480
Thickness, insulated(mm):50
Vent connection(inch):3/4
Electric heater connection(inch):1.25
Water connection(inch):3/4
Collector angle(degree):20/45
Test pressure(pa):0.9MPa
Operating fluid ppressure(pa):0.6MPa
Distance from tube to tube:90
|
Type (one) |
Area(m2) |
Vacuum tube |
Volume (Liters) |
Gross wet(kg) |
Volume/set (Cubic meter) |
||
Length(mm) |
DIA(mm) |
Qty(pcs) |
|||||
JDL-HP15-58/1.8 |
2 |
1800 |
58 |
15 |
140 |
77 |
0.6 |
JDL-HP18-58/1.8 |
2.43 |
1800 |
58 |
18 |
163 |
90 |
0.7 |
JDL-HP20-58/1.8 |
2.71 |
1800 |
58 |
20 |
180 |
98 |
0.75 |
JDL-HP24-58/1.8 |
3.24 |
1800 |
58 |
24 |
209 |
114 |
0.87 |
JDL-HP30-58/1.8 |
4.05 |
1800 |
58 |
30 |
255 |
136 |
1.05 |
