Help CenterSolar Water Heater
US$ 100 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Evacuated Tube
Pressure
Pressurized
Circulation Type
Direct / Open Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Direct-Plug
Installation
Freestanding
Housing Material
Stainless Steel
Certification
CE
Capacity
150
Place of Origin
Zhejiang, China
Brand Name
JiaDeLe
Model Number
JDL-HP
Specifications
This type can be used in family kindly.It's environmental and friendly.It can provide enough water for your family members.Key Specification:
1) inner tank: SUS 304-2B food grade stainless steel sheet, thickness:1.2mm
2) outer tank: galvanized steel, thickness:0.40mm
3) frame: galvanized sheet with electrostatic plastic coating, thickness: 1.5mm

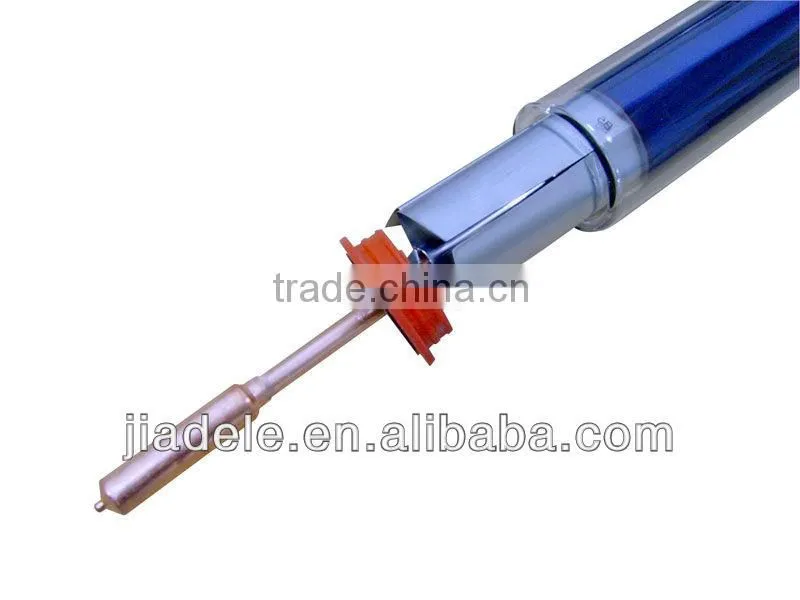

4) vacuum tube: high boron silicon glass with aluminum/red copper/ stainless steel bloomed, ST=300;
5) insulation layer: Polyurethane, thickness: 55mm
REMARK:
Solar heat storage tank diameter(mm):365/480
Thickness, insulated(mm):55
Vent connection(inch):3/4
Electric heater connection(inch):1.25
Water connection(inch):3/4
Collector angle(degree):20/45
Test pressure(pa):0.9MPa
Operating fluid ppressure(pa):0.6MPa
Distance from tube to tube:80
MORE DETAILS
SAMPLE ROOM
PACKAGE
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2005
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
