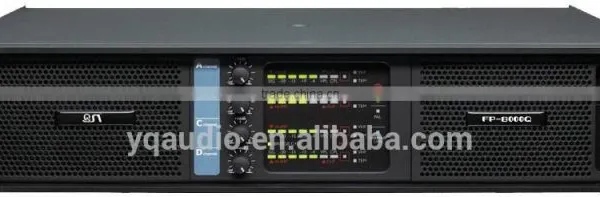

FP8000Q Switch High Power Amplifier, Subwoofer amplifier,amplifier for subwoofer
FP-8000Q
Channel number: 4CH
8Ohm stereo, 800W
4Ohm stereo, 1400W
2Ohm stereo, 1600W
8Ohm bridge: 2800W
4Ohm bridge: 3200W
Gain: 35dB VPL:101V
THD+N: <0.1%
THD: <0.05%
S/N ratio: >112dB
Crossover: >70dB
Frequency: 6.8Hz-34KHz
Input impedance: 20Kohm
Gain selecrable: 23,26,32,35,38,41,44dB
Input connector: XLR
Output connector: Neutrik speakon
output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source
Cooling: 2 fans, front to rear airflow, temperature control
Size: 483*88*398mm
Net weight:12Kg
Gross weight: 15kg
| FP Series | FP7000 | FP9000 | FP14000 | FP8000Q | FP10000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2350WX2 | 800WX4 | 1350WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1400WX4 | 2700WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1600WX4 | 2500WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2800WX2 | 4200WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3200WX2 | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz | ||||
| THD 20 Hz - 20 kHz for 1 W | <0.1% | ||||
| Signal-to-Noise Ratio | >112 dBA | ||||
| Channel separation (Crosstalk) at 1 kHz | >70 dB | ||||
| Input Connectors (per channel) | 3-pin XLR, electronically balanced | ||||
| Output Connectors (per channel) | Binding Posts 2-pole | ||||
| Class | TD | ||||
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input | ||||
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable | ||||
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||
| Input impedance | 20 kOhm | ||||
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB | ||||
| Dimensions (W×H×D) | 483×88×396mm | ||||
| Packing dimension | 580×180×560mm | ||||
| Net weight(kg) | 12 | ||||
| Gross weight(kg) | 15 | ||||
Professional speaker and line array speaker,subwoofer speaker package details:
Mini Line array ATA case/Flight case package:
Professional speaker and line array speaker,subwoofer flight case package details:

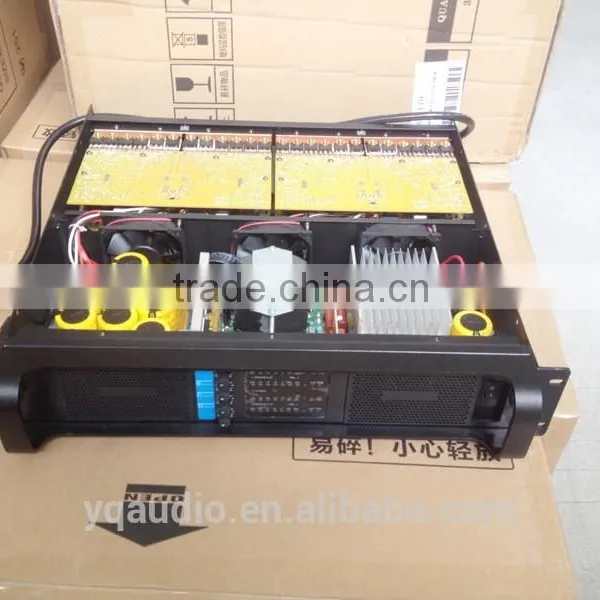

Power amplifier inside package details:
Power amplifier outlook package in store details:(a plastic bag encase the amplifier to waterproof)
