Specifications
mini dp1.Mini DP to HDMI cable
2.24K gold plated connector
3.Own factory,offer OEM service

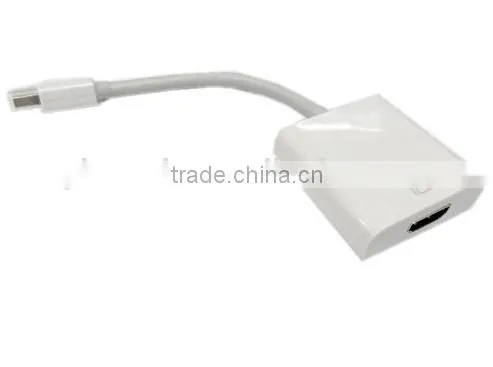

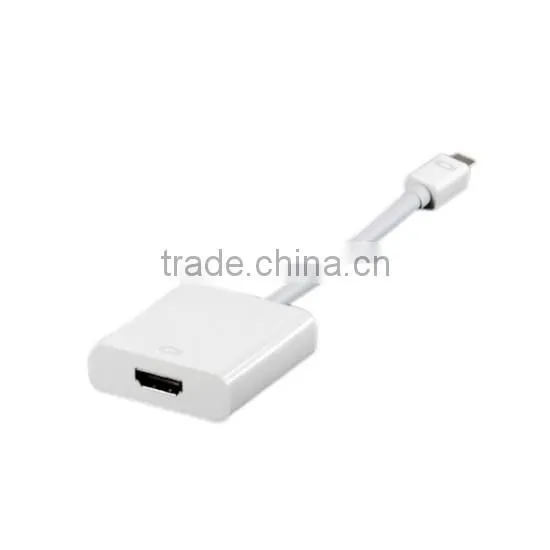

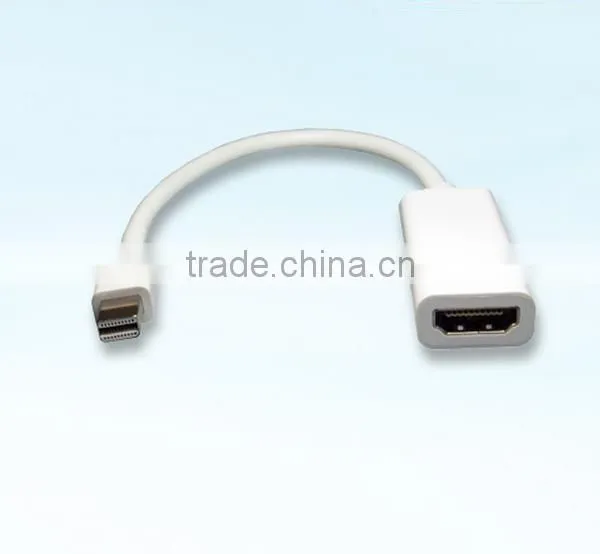

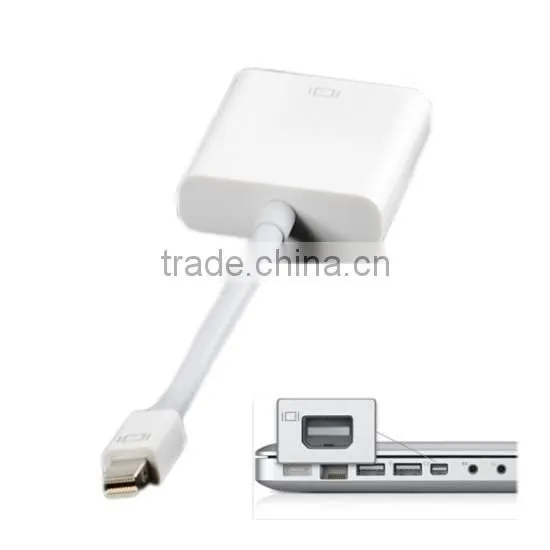

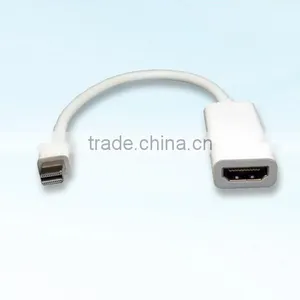

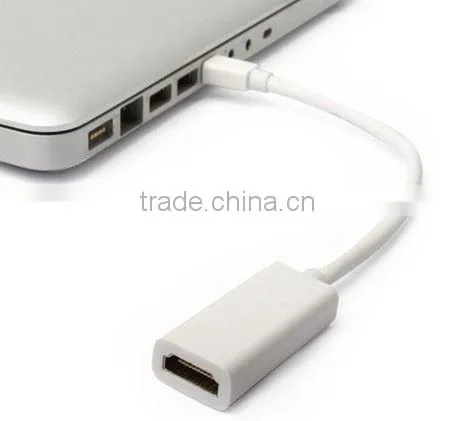

mini display port DP to HDMI adpater
Introduction:
The Mini DP to HDMI signal format converter seamlessly connect next generationDP based MacBook, MacBook Pro, or MacBook Air with a Mini DP to high definition displays. Mini DP offers a unified, scalable, and cost effective interface for embedded and external display applications. It not only has an elegant appearance with the white color but also brings much convenience with its small size.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
1,Support Mini DP1.1a input and HDMI1.3b output.
2,Support HDMI highest video resolution 1080p.
3,Support HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
4,Support HDMI 12bit per channel (36bit all channel) deep color.
5,Support uncompressed audio such as LPCM.
6,Support compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).
7,Powered from Mini DisplayPort source
Specifications:
Signal Inputs/Output |
|
Input Video Signal |
5 Volts p-p (TTL) |
Maximum Single Link Range |
1920x1080P |
Output Video |
HDMI1.3b |
Input/Output Connector |
Input: Mini DP Male 20pin Output: HDMI Female Type A 19pin |
Operating Frequency |
|
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Warranty |
|
Limited Warranty |
1 Year Parts and Labor |
Environmental |
|
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Requirement |
|
External Power Supply |
No external power needed |
Power consumption (Max) |
3W |
Regulatory Approvals |
|
Converter Unit |
FCC,CE,UL |
Power Supply |
UL,CE,FCC |
Accessories Adapter |
|
User Manual |
