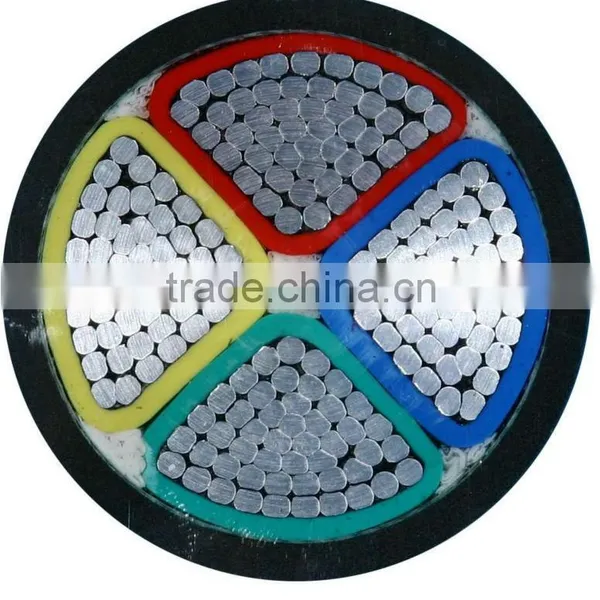

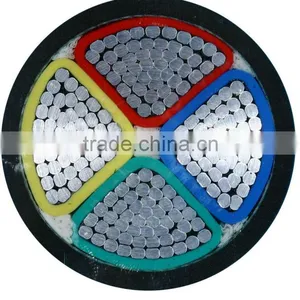

Help CenterLow Halogen Thick Steel Wire Armored Power Electric Power Cable With PVC Insulated PE Sheath Al Aluminum Conductor 4 Core
Related Products
-
AL/CU Conductor Multicores 25mm XLPE Insulated PE Sheath Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer -
AL/CU Conductor Multicore 25mm XLPE Insulated PVC Sheath Steel Tape Armored Power Electric Cable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
AL/CU Conductor Multicores 25mm XLPE Insulated PVC Sheath Double Steel Tape Armored Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
Cu Copper Conductor Multi Core 25mm XLPE Insulated PVC Sheath Thin Steel Wire Armored Power Electriccable WireUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
0.6/1kv XLPE Insulated Thin Round Steel Wire Armored PVC Outer Sheath Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
APPLICATION This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0 kV with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.
TYPE OF PRODUCT
type |
Name of product |
|
Cu |
Al |
|
VV |
VLV |
PVC insulated PVC sheath power cable |
VY |
VLY |
PVC insulated PE sheath power cable |
VV22 |
VLV22 |
PVC insulated steel tape armored PVC sheath power cable |
VV23 |
VLV23 |
PVC insulated steel tape armored PE sheath power cable |
VV32 |
VLV32 |
PVC insulated thin steel-wire armored PVC sheath power cable |
VV33 |
VLV32 |
PVC insulated thin steel-wire armored PE sheath power cable |
VV42 |
VLV42 |
PVC insulated thin steel wire armored PVC sheath power cables |
VV43 |
VLV43 |
PVC insulated thin steel –wire armored PE sheath power cables |
Fire-safe property
Temperature of flame |
Fire supply time+cooling time |
Test Voltage/V |
Acceptable index |
750+50°C |
90+15 |
Rated |
1. 2A no fusing 2. Indicator light immortalization |
