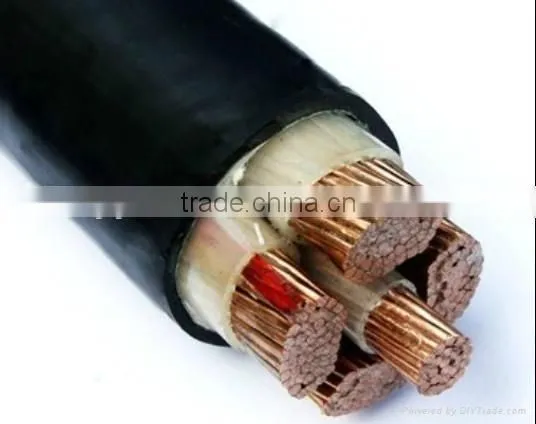

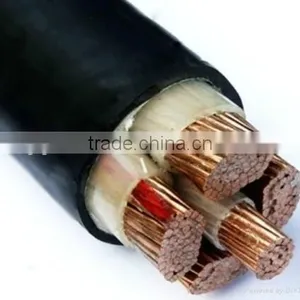

Help CenterFire Proof Low Smoke Free Halogen Flame Ratardant Rated Voltage AL/CU Conductor4 Cores PVC Insulated PVC Power Electric Cable
Related Products
-
Power Cable Leading SupplierUS$ 0.48 - 99.8MOQ: 1000 Meters -
Under 35KV Coper/Aluminum Core XLPE Insulated PVC Sheathed Armoured Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
-
Used For Substation Power Plant Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
-
0.6/1kv Triplex Service Drop XLPE Insulated ACSR ABC Power CableUS$ 0.48 - 99.8MOQ: 1000 Meters
-
0.6/1kv Rated Voltage Copper Cu Conductor Multi Cores 25mm XLPE Insulated PVC Sheath Fire Proof Low Halogen Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
Specifications
Rated voltage:0.6/1kvConductor:AL/CU
Armor:steel tape,thin steel wire,thick steel wire
Sheath: PVC/PE
Easy installation
APPLICATION This product is applicable to being fixedly laid on the transmission and distribution line of alternative current rating 50Hz and rated voltage up to 0.6/1.0 kV with the use for power transmission, which is applied to the range of distribution network, industrial equipments, etc.
This product is the normal used cable, not suitable for some special places, such as underwater, ship, nuclear station, etc.
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance, alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.
TYPE OF PRODUCT
Bunched burning characteristic
Code |
Volume of non metal materials(L/m) |
Time of fire supply/s |
Acceptable index |
Test mode |
|
ZA ZB ZC ZD |
7 3.5 1.5 0.5 |
40 40 20 20 |
1.The length of carbonation is no more than 2.5m from the bottom of nozzle 2.The time of flaming combustion shall be no more than 1h, after fire supply is stopped. |
GB/T 18380.3 IEC 60332-3-25 |
ZD is suitable for the cables whose sample's outer diameter is no more than 12mm. | ||||
Fire-safe property
Temperature of flame |
Fire supply time+cooling time |
Test Voltage/V |
Acceptable index |
750+50°C |
90+15 |
Rated |
1. 2A no fusing 2. Indicator light immortalization |
Low-smoke halogen-free flame-retardant property
order |
Items |
Unit |
Indicator |
1 |
Low-smoke property least light penetration quotiety |
% |
≥60 |
2 |
zero-halogen property PH value electrical conductivity |
μs/mm |
≥4.3 ≤10 |
