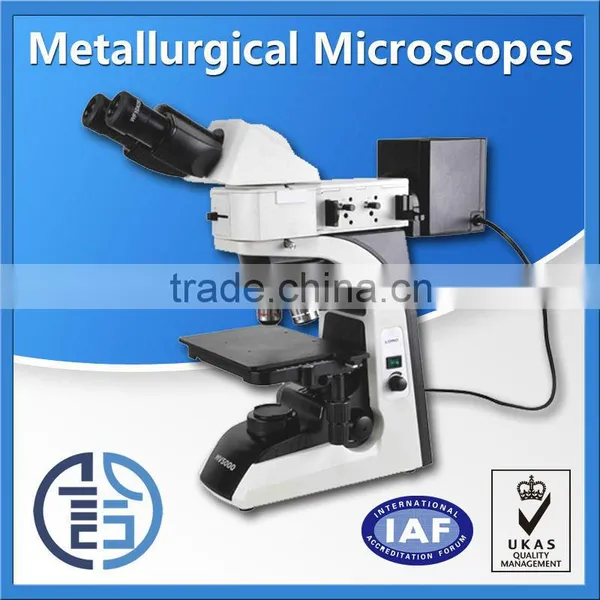

MV5000 Metallurgical Microscop Digital Capillary Operating Scanning Electronmicroscope

Name: MV5000 Metallurgical Microscop Digital Capillary Operating Scanning Electronmicroscope
Brand: YanHe
SKU: 113441559

US$ 3,376 - 3,455 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

YanHe

Model Number:

MV5000,MV5000T/R

Shanghai Yanhe Instrument Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name YanHe

Model Number MV5000,MV5000T/R

Theory Metallurgical Microscope

Drawtube Binocular

Specification

		MV5000 R	MV5000T/R
		MV5000 R	MV5000T/R
Optical System	Infinite optical system	A	A
Extral Wide Field	EW10×/20	A	A
Eyepiece	EW10×/20 Eyepiece with scale of cross hair	A	A
	EW15×/16	O	O
	EW20×/12	O	O
Infinite Plan	5×/0.12/∞/- (BF/DF) LWD 10mm	A	A
Achromatic Objective	10×/0.25/∞/-(BF/DF) LWD 10mm	A	A
	20×/0.4/∞/0(BF/DF) LWD 5mm	A	A
	50×/0.75/∞/0(BF/DF) LWD 1.3mm	A	A
	100×/0.90(Dry)/∞/0(BF) LWD 0.7mm	A	A
	40×/0.65/∞/0.17(BF) WD 0.6mm		A
	100×/1.25/∞/0.17(BF) WD 0.16mm		A
Viewing Head	Siedentopf binocular viewing head, inclined at 30°	A	A
Viewing Head	Siedentopf trinocular viewing head, inclined at 30°	O	O
Kohler Incident Light	12V/50W Halogen light, Center and brightness adjustable	A	A
	12V/20W Halogen light, Center and brightness adjustable		A
	Polarizer and analyzer	A	A
	DIC	O	O
	Green, Blue, Yellow, Gray and ground glass	A	A
Focusing	Coaxial coarse and fine adjustment, fine division 2μm, moving range30mm	A	A
Nosepiece	Backward quintuple nosepiece	A	A
Stage	Double layer mechanical stage 216×150mm, Moving range 78mm×54mm		A
Stage	Double layer mechanical stage 186×138mm, Moving range 78mm×54mm	A
Accessories	Specimen Presser	O	O
	Photo attachment	O	O
	Micrometer scale 0.01mm	A	A
Note: "A"Standard Outfit, "O"Optional
