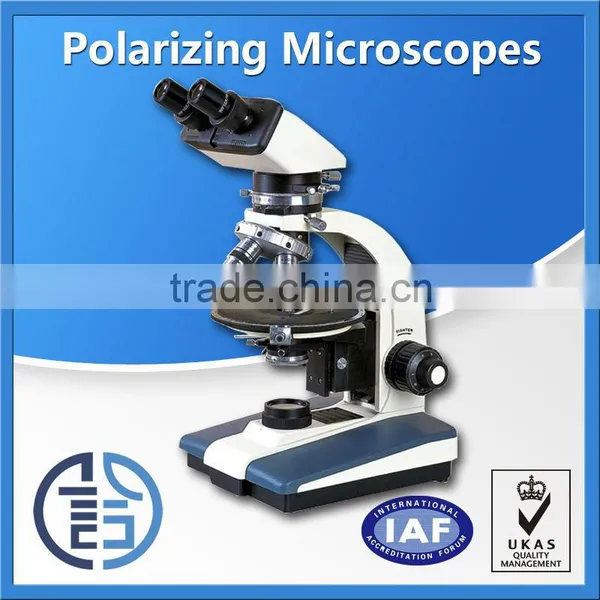

XP-213 Polarizing Microscope for Inspection and Education Usb Digital Microscope China Made
US$ 916 - 948
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YanHe
Model Number:
XP-213
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XPT-7 Monocular Microscope Digital Eyepiece Camera Student MicroscopeUS$ 663 - 711MOQ: 1 Set -
VCE-1/DCE-2N Microscope Digital Eyepiece Camera Vga Microscope CameraNegotiableMOQ: 1 Set
-
MDCE-5C Digital Microscope Camera Trinocular Microscope With CameraNegotiableMOQ: 1 Set
-
DC Series Usb Digital Microscope Camera 2.0 Microscope Digital Eyepiece CameraNegotiableMOQ: 1 Set
-
Microscopic ScopeImage Analysis Software Digital Microscope Measure SoftwareNegotiableMOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YanHe
Model Number
XP-213
Theory
Other, Polarizing Microscope
Drawtube
Other, Binocular,Trinocular
Features
· Polarizing microscope for normal inspection and education.
· Widely used in crystalIography,AnalyticaI chemistry,Medicine,Biology,Envi ronmentaIoIogy,Pharmacy,Toxicologyand so on.
· Supply sharp and clear images by single polarization,othorgonal polarization or conoscopic observation.
Specification
| XP-213 | ||
| Viewing Head | Sliding binocular viewing head, Inclined at 30° | A |
| Sliding trinocular viewing head, Inclined at 30° | O | |
| Eyepiece | Eyepiece WF10×/18 with scale of cross hair | A |
| Eyepiece WF10×/18 with graticule | A | |
| Eyepiece WF 10×/18 | A | |
| Objective | Strain free achromatic objective 4×,10×,25×,40×,63× | A |
| Lamp house adjustment objective | O | |
| Nosepiece | Backward quadruple nosepiece, Center adjustable | A |
| Analyzer | Rotatable analyzer with gradation 0°-90° | A |
| Bertrand Lens | Bertrand lens, Sliding in/out of optical path | A |
| Optical Compensator | λ Slip(First class red), 1/ 4λ Slip, Quartz wedge | A |
| Revolving Round Stage | Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6' when using vernier scale | A |
| Condenser | NA1.25 Abbe condenser with iris diaphragm & filter | A |
| Focusing | Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm | A |
| Polarizer | 360° Rotatable | A |
| Illumination | 12V/ 20W Halogen lamp, Brightness adjustable(Transmitted illumination) | A |
| Accessories | Mechanical stage, Moving range 30×40mm | O |
| Specimen presser | O | |
| Micrometer | A | |
| Blue filter | A | |
| Note: "A" Standard Outfit, "O"Optional | ||
