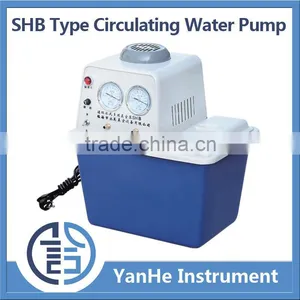

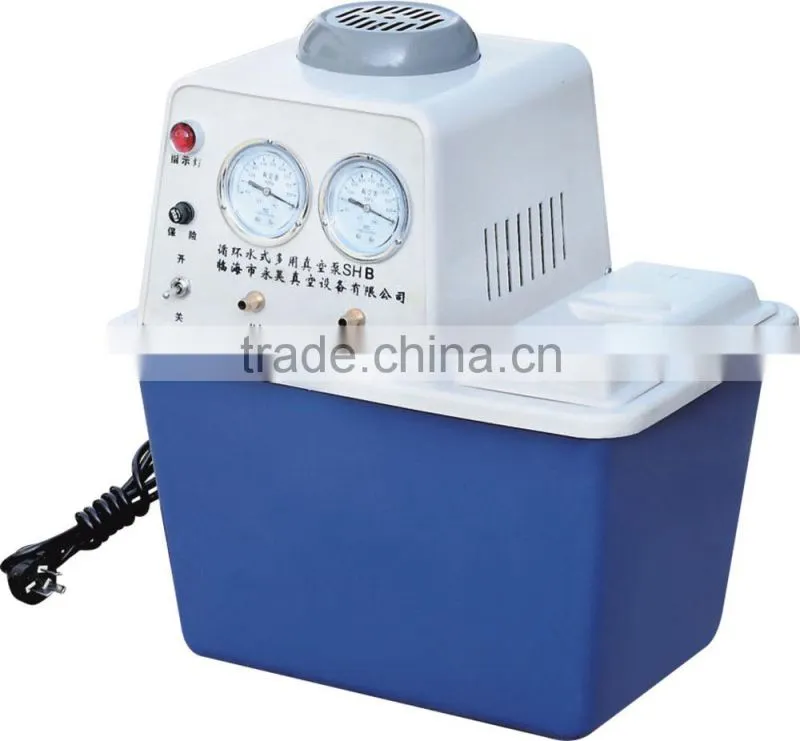

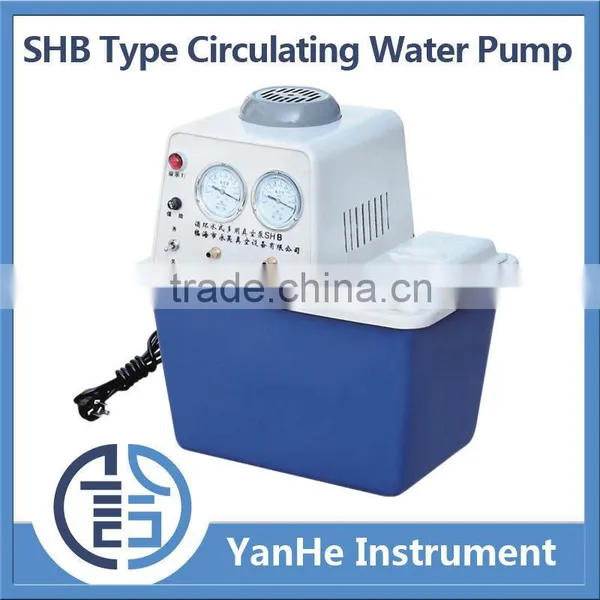

Product Name:SHB TYPE CIRCULATING WATER PUMP
SHB type circulating water pump
SHB type water circulating multi-purpose vacuum pump series with circulating water as the working fluid, the fluid jet vacuum ejector vacuum pump, evaporation, distillation, crystallization, drying, distillation, filtration, degassing and vacuum process provides vacuum conditions, especially suitable for the tertiary institutions, research institutes, pharmaceutical, of workers and peasants, biochemistry, food, pesticides, agricultural engineering, biological engineering industries laboratory and experiment.
1,features
A,circulating water, saving the precious water resource;
B, than other types of vacuum pumps, saving more than 35%;
C, specially designed muffler fluid, reduce the water gas, so that higher and more stable vacuum: reduction of liquid friction, noise reduction;
D, double tap, dual display, can be used independently or in parallel combination;
E, acid, alkali corrosion;
The 6 shell, water tank, jet, three, check valve, the suction nozzle of material for the PP, a pump body, an impeller ( six channel, dual seal ) is a stainless steel plate pressed material, accord with ANS standard.
2,Technical Date
Model |
SHB-III |
SHZ-IIIA |
SHZ-IVAA |
SHB-95 |
SHB-95A |
Power(w) |
180 |
180 |
250 |
550 |
550 |
Power supply(V/HZ) |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
Flow(L/min) |
80 |
80 |
80 |
100 |
100 |
Lifr(M) |
10 |
10 |
10 |
12 |
12 |
Materiais of machine casing |
Special antisepsis plastics |
Special antisepsis plastics |
Special antisepsis plastics |
SPCC steel with powder coating |
1Cr18Ni9Ti |
Body materials |
PPS |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
Stainless steel |
Stainless steel |
Maxium vacuum(Mpa) |
0.098 |
0.098 |
0.098 |
0.098 |
0.098 |
Single pumpdown(L/min) |
10 |
10 |
10 |
10 |
10 |
Number of pumpdown() |
2 |
2 |
4 |
5 |
5 |
Water tank capacity(L) |
15 |
15 |
18 |
57 |
57 |
Materials of water tank |
PVC |
Special antisepsis plastics |
Special antisepsis plastics |
PVC |
PVC |
Dimensions(mm) |
385×280×420 |
385×280×420 |
470×260×516 |
450×350×950 |
450×350×820 |
Weight(kg) |
11 |
11 |
17 |
36 |
36 |
