Specifications
1.fiberglass braid silicone rubber insulation wire2.Low MOQ
3.CCC certification
About Product

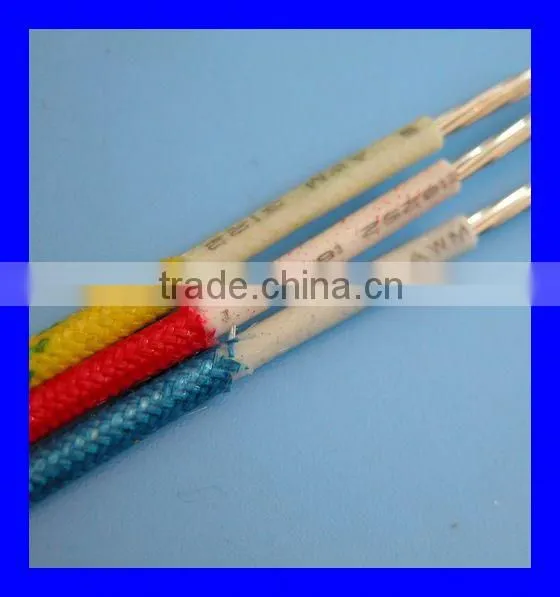

Type:UL braided 3122 fiberglass braid silicone rubber insulation wire
Application: For power transmission and migration electric appliances. Widely used in metallurgy, electric power, petrochemical, electronics, automotive and other industries.
Texture:Silicone rubber, bare or tinned copper.
Colors: White, Blue, Red, Black, Brown, Yellow, Green, Transparent, Yellow/Green
Voltage: 300V
Thermal Endurance: -100°c~200°c
Features: Excellent resistance in heat radiation, cold, chemical, corrosive gases, and waterproof. Flexible and easy to radiation. Stable electrical performance in high and low temperature. Anti-aging and long service life.
Reference standard: UL758 UL1581&CSA C22.2 NO.210.2. Pass CUL FT2 flame test.
Packing: Neutral Packing or Pallet Packing.
90~300 meters per roll. Three rolls in one carton.
Our Innovation
Continuous Innovation and R&D
Good Service and Quick Delivery
Competitive Price with Good quality
Quality Certification and OEM Accepted
| UL 3122 SILICONE RUBBER BRAIDE WIRE | ||||||
| 200°C /300V | ||||||
| AWG |
Conductor Construction NO.×Φmm |
Dia.mm | Insulation Thick.mm | Braided Thick.mm | Outer Dia.mm | 20°C Ω KM |
| 26 | 7/0.16 | 0.48 | 0.38 | 0.15 | 1.54±0.10 | 150 |
| 24 | 7/0.20 | 0.61 | 0.38 | 0.15 | 1.67±0.10 | 94.2 |
| 22 | 7/0.254 | 0.76 | 0.38 | 0.15 | 1.82±0.10 | 59.4 |
| 20 | 7/0.30 20/0.18 | 0.96 | 0.38 | 0.15 | 2.02±0.10 | 36.7 |
| 18 | 7/0.40 16/0.254 | 1.20 | 0.38 | 0.15 | 2.26±0.10 | 23.2 |
| 16 | 7/0.50 26/0.254 | 1.50 | 0.38 | 0.15 | 2.56±0.10 | 14.6 |
...
