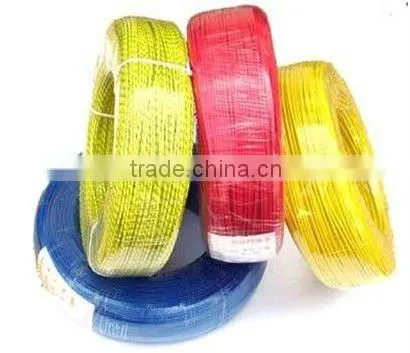

VDE H05SS-K Silicone Rubber Copper Cable
US$ 0.05 - 0.25
MOQ: 5 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Nissfj
Model Number:
VDE H05SS-K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Generater &Lamp HarnessUS$ 0.1 - 0.2MOQ: 3000 Meters -
UL 1185 PVC Compound for Wire and CbleUS$ 0.05 - 0.25MOQ: 5 Kilometers
-
RIXING 1.5mm Pvc Insulated Electric Pvc Cable ManufacturerUS$ 0.05 - 0.15MOQ: 5000 Meters
-
CCC CableUS$ 0.05 - 0.25MOQ: 5 Kilometers
-
Solid Copper Building Wire/house Cable/power CableUS$ 0.03 - 0.16MOQ: 5000 Meters
Place of Origin
Zhejiang, China
Brand Name
Nissfj
Model Number
VDE H05SS-K
Type
Insulated
Application
Heating
Conductor Material
Copper
Conductor Type
Solid
Insulation Material
Other, Teflon
Specifications
VDE H05SS-K Silicone rubber copper cableGood quality,low price
Pass UL,VDE,CCC
Copper cble OEM manufacture
VDE H05SS-K Silicone rubber copper cable
Good quality,low price
Pass UL,VDE,CCC
Copper cable OEM manufacture
Specifications
Silicone rubber wire VDEH05SS-K electric wire copper wire Conductor:Tinned Copper, Insulator:silicone rubber and silicone rubber
Silicone rubber wire VDEH05SS-K electric wire copper wire
Standard:VDE 0282-3, File number:Nr.40016705.
Features:
1) Temperature range: -60oC~ +200oC.
2) Rated voltage: 450/750V.
3) Colors: transparent, white, black, red, blue, yellow, green, brown, yellow/green
4)Conductor is single or multiple twisted wire made of tin-plating copper,nickel-plating
copper.
1) Temperature range: -60oC~ +200oC.
2) Rated voltage: 450/750V.
3) Colors: transparent, white, black, red, blue, yellow, green, brown, yellow/green
4)Conductor is single or multiple twisted wire made of tin-plating copper,nickel-plating
copper.
Applications:
Widely applied for home appliances, lighting equipment, electric instruments,
medical unit and more at the high temperature conditions
Widely applied for home appliances, lighting equipment, electric instruments,
medical unit and more at the high temperature conditions
Product Dimensions
Conductor |
Insulation |
Max. Conductor Resistance (Ω/km) |
Unit Length (M)(Ft) |
|||
|
Section (mm2) |
Construction (No./mm) |
Diameter (mm) |
Nominal thickness (mm) |
Diameter (mm) |
||
|
0.50 0.75 1.00 1.50 2.50 |
16/0.20 24/0.20 32/0.20 30/0.254 50/0.254 |
0.75 1.13 1.31 1.60 2.08 |
0.60 0.60 0.60 0.60 0.60 |
3.15 3.53 3.71 4.60 5.28 |
35.91 23.93 19.70 13.70 8.21 |
200/656 200/656 200/656 100/328 100/328 |
