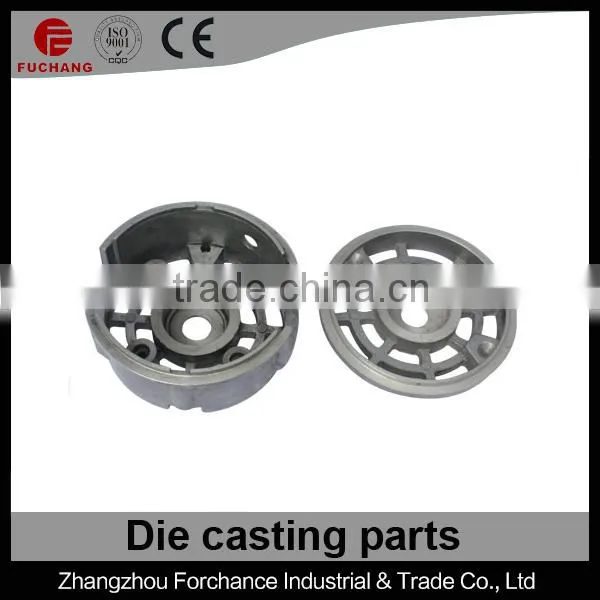

Help CenterAluminium Die Casting Parts
Related Products
Specifications
aluminum die casting partsduce complex shapes
2.low cost and high mechanical properties
3.fine surface finish
Technical Informationabout Die Casting Aluminum Alloys
The following table will provide a general idea of the differences in Aluminum Die Cast alloys.
ALUMINUM ALLOY CHARACTORISTICS | ||||
Aluminum die casting alloys |
A360 |
A380 |
A383 |
A413 |
Hardness |
75 |
80 |
75 |
80 |
Elongation (% in.2 in.) |
2.5 |
3.5 |
3.5 |
2.5 |
Shear Strength (ksi) |
28 |
28 |
- |
25 |
Tensile Yield Strength (ksi) |
25 |
23 |
22 |
21 |
Ultimate Tensile Strength (ksi) |
44 |
46 |
45 |
43 |
Thermal Conductivity |
65 |
56 |
56 |
70 |
Electrical Conductivity (% copper) |
30 |
27 |
23 |
31 |
Density (weight) Lbs./ in.3 |
0.095 |
0.099 |
0.099 |
0.096 |
ALUMINUM ALLOY MATERIALS | ||||
Aluminum die casting alloys |
A360 |
A380 |
A383 |
A413 |
Silicon (Si) |
9.0-10.0 |
7.5-9.5 |
9.5-11.5 |
11.0-13.0 |
Iron (Fe) |
2.0 |
2.0 |
1.3 |
2.0 |
Copper (Cu) |
0.6 |
3.0-4.0 |
2.0-3.0 |
1.0 |
Manganese (Mn) |
0.35 |
0.50 |
0.50 |
0.35 |
Magnesium (Mg) |
0.4-0.6 |
0.10 |
0.10 |
0.10 |
Nickle (Ni) |
0.50 |
0.50 |
0.30 |
0.50 |
Zinc (Zn) |
0.50 |
3.0 |
3.0 |
0.50 |
Tin (Sn) |
0.15 |
0.35 |
0.15 |
0.15 |
Others |
0.25 |
0.50 |
0.50 |
0.25 |
Aluminum (Al) |
Balance |
Balance |
Balance |
Balance |
Aluminum Die Cast Parts comply with the EU RoHS standards
