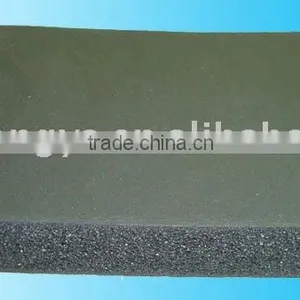

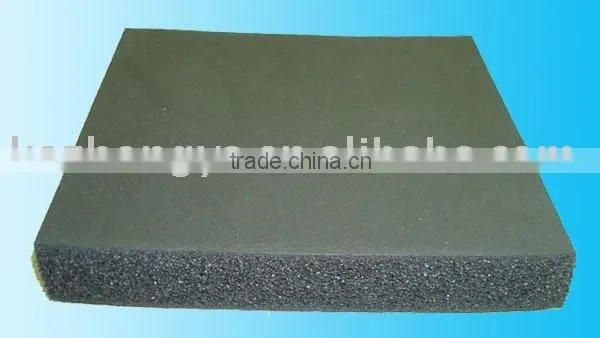

NBR/PVC Heat Buildings Insulation Board

US$ 0.1 - 2 MOQ: 5 Cubic Meters

Key Specifications

Business Type:

Manufacturer, Trading Company

Year Established:

2005

Factory Size:

5,000-10,000 square meters

Kunshan Zhongya Insulation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Specifications

NBR/PVC insulation board:
1.Apply in construction, buildings, ceiling
2.OEM/ODM acceptable
3.Fire grade:B1
4.ROHS, ISO

NBR/PVC heat buildings insulation board

Characteristics of our insulation board:
1. Closed-cell Structure.
2. Low and Stable Thermal Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.
7. Environmental friendly & Improved IAQ.

Application of insulation board:
Insulation sheet is used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also has good performance in sound/shock absorption, have low thermal conductivity, so they're widely used in construction, decoration, ceiling, etc.

Insulation board is ideal for applications in:
Ductwork
Dual temperature and low pressure steam lines
Construction
Ceiling decoration

Technical specifications:
Property	Unit	Value
Density range	kg/m³	50~100
Flammability	-	B1
Oxygen index	%	≥33
Thermal conductivity	-	-
Average tempreture -20°C 0°C 40°C	w(m.k)	≤0.032 ≤0.035 ≤0.037
Moisture resistance factor	-	≥5x10³
Water absorption ratio in vacuum	%	≤10
Dimension stability 105°C ±3°C, 7d	-	≤10
Ozone resistance 200h	%	Good, not cracking
Compress resilience ratio Compression ratio 50% Compression time 72h	%	≥70
Aging resistance	-	150 hours, slight wrinkles, no cracks, holes or distortion
Dimensions	-	Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width
