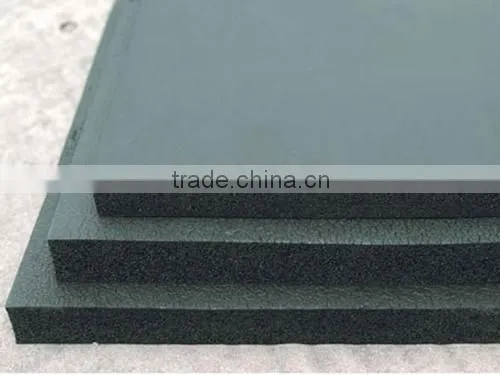

Closed Cell Black Rubber Foam Insulation Sheet

Name: Closed Cell Black Rubber Foam Insulation Sheet
Brand: insoflex
SKU: 113534017

US$ 0.1 - 5 MOQ: 1000 Meters

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

insoflex

Model Number:

sheet-AS88

Kunshan Zhongya Insulation Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name insoflex

Model Number sheet-AS88

Product Description

What is the details of our insulation rubber foam sheet?

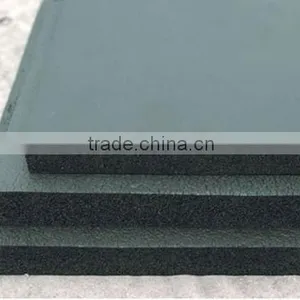

closed cell black rubber foam insulation sheet

NBR Rubber Foam Sheet:
ld resistant
2.fire-retardant and.waterproot
3.low thermal conductivity
und absorption, RoHS

Thermal Insulation Sheet, has many kinds of color, nominal thickness is 3mm~40mm, the width is 1m or 1.2m. It can be used as:

1. Coustruction

2. House decoration

3. Ceiling or construction

4. HVAC System

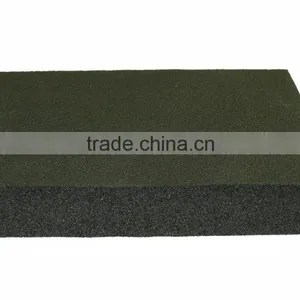

closed cell black rubber foam insulation sheet

Technical specifications:
Property	Unit	Value
Density range	kg/m³	50~100
Temperature range	°C	-40-+105
Fire rating	-	Class O , Class 1
Oxygen index	%	≥33
Thermal conductivity in average tempreture -20°C 0°C 40°C	w(m.k)	≤0.031 ≤0.033 ≤0.037
Water vapour resistance factor	μ	≥104
Water absorption ratio in vacuum	%	≤10
Dimension stability 105°C ±3°C, 7d	-	≤10
Ozone resistance 200h	%	Good, not cracking
Compress resilience ratio Compression ratio 50% Compression time 72h	%	≥70
Aging resistance	-	150 hours, slight wrinkles, no cracks, holes or distortion

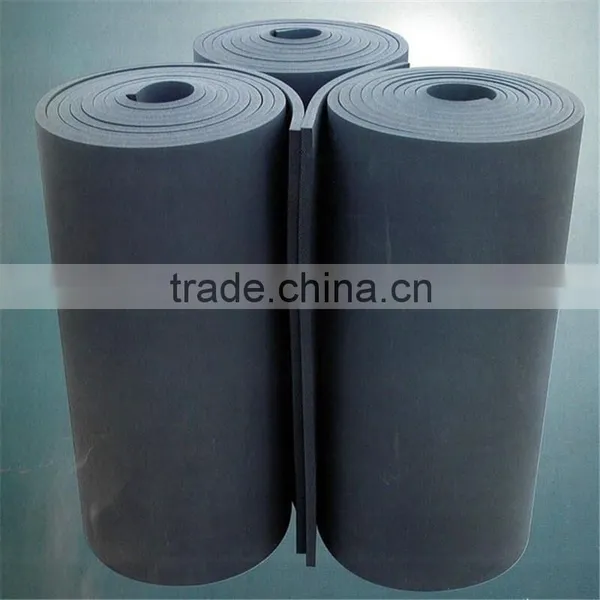

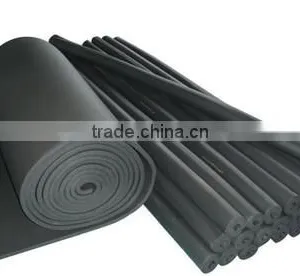

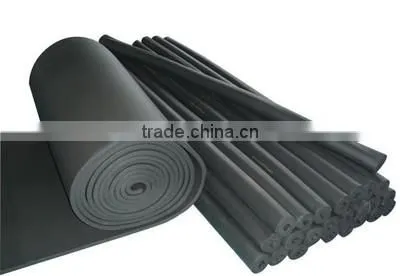

Dimensions	-	Insulation pipes/tubes are in 1.83 mtr to 2 mtr long Insulation sheet in rolls 1 mtr and 1.2 mtr width, with thickness from 3mm to 40mm.
