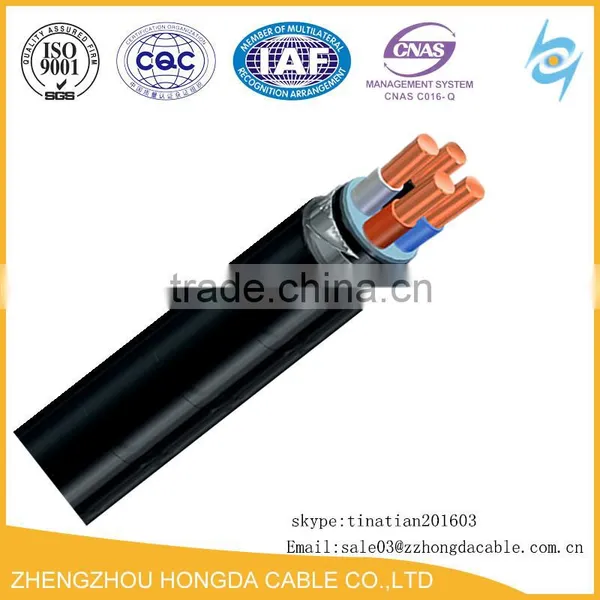

XAV Cable Cu/XLPE/STA/PVC RVFV Cable CCL-NP-XAV-R
Application and Description
They are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion (rank BE3 NF C 15-100) with mechanical protection is necessary and in this case the intensity must be reduced by 15%.
Standard and Approval
IEC60502-1,NP2365

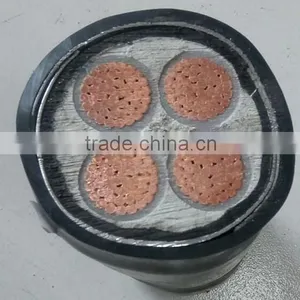

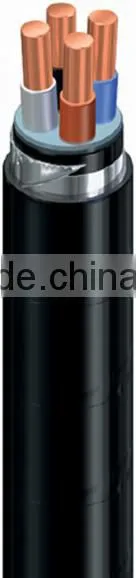

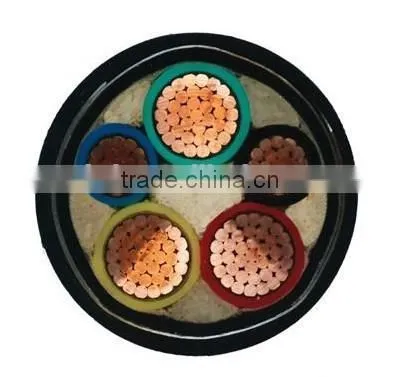

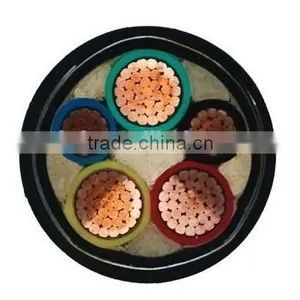

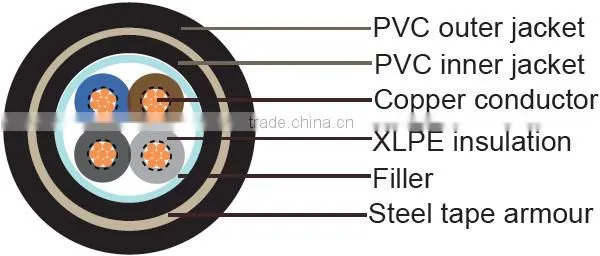

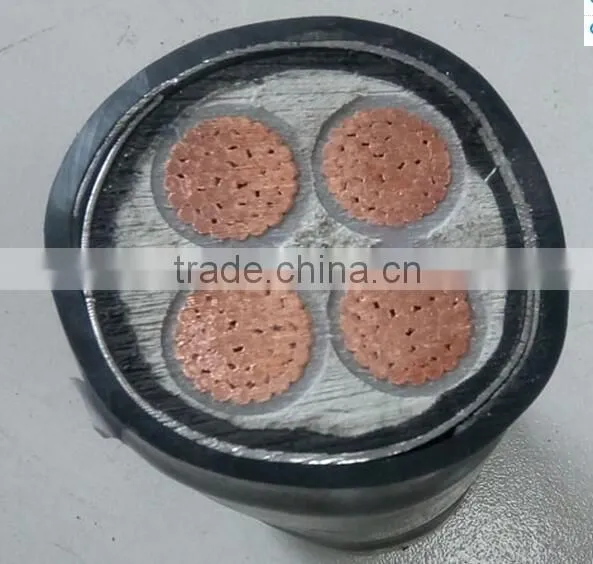

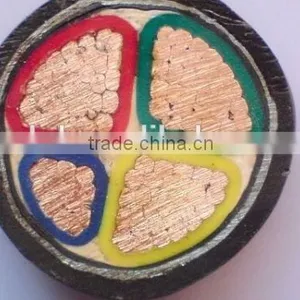

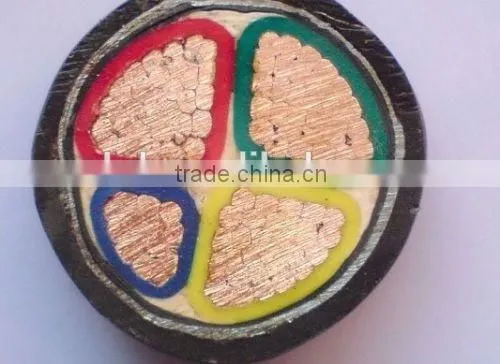

Cable Construction
- Flexible copper strands
- Strands to IEC 60228, ≤4mm2,class 1, ≥6mm2,class 2
- XLPE insulation according to NF C 32-321
- Color codes to HD 308 S2(NF C32-321)
- Not fibrous and not hygroscopic filler
- PVC inner jacket
- Two steel tapes helically wrapped armour
- Flexible black PVC outer jacket
Technical Characteristics
- Working Voltage: 600/1000 volts
- Test voltage: 3500 volts
- Minimum bending radius: 6 x Ø
- Operation temperature rage: -10 °C to 60 °C
- Short-circuit temperature: 250 °C
- Flame retardant: NF C 32-070 C2
- Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG
|
Cross Section mm2 | Insulation thickness mm | Amour thickness mm | Minimum Sheath thickness mm | Maximum Overall diameter mm | Approx Cable weight kg/km |
| 16 | 2x1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
| 14 | 2x2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
| 12 | 2x4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
| 10 | 2x6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
| 8 | 2x10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
| 6 | 2x16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
| 4 | 2x25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
| 2 | 2x35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
| 16 | 3x1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
| 14 | 3x2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
| 12 | 3x4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
| 10 | 3x6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
| 8 | 3x10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
| 6 | 3x16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
| 4 | 3x25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
| 2 | 3x35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
| 1 | 3x50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
| 2/0 | 3x70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
| 3/0 | 3x95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
| 4/0 | 3x120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
| 300MCM | 3x150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
| 500MCM | 3x185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
| 750MCM | 3x240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
| - | 3x300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
| 1 | 3x50+35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
| 2/0 | 3x70+50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
| 3/0 | 3x95+50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
| 4/0 | 3x120+70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
| 300MCM | 3x150+70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
| 500MCM | 3x185+70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
| 750MCM | 3x240+95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
| 16 | 4x1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
| 14 | 4x2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
| 12 | 4x4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
| 10 | 4x6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
| 8 | 4x10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
| 6 | 4x16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
| 4 | 4x25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
| 2 | 4x35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
| 1 | 4x50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
| 2/0 | 4x70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
| 3/0 | 4x95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
| 4/0 | 4x120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
| 300MCM | 4x150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
| 500MCM | 4x185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
| 750MCM | 4x240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
| - | 4x300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
| 16 | 5x1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
| 14 | 5x2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
| 12 | 5x4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
| 10 | 5x6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
| 8 | 5x10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
| 6 | 5x16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
| 4 | 5x25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
| 16 | 7x1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
| 14 | 7x2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
| 16 | 12x1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
| 14 | 12x2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
| 16 | 19x1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
| 14 | 19x2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
| 16 | 24x1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
| 14 | 24x2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
| 16 | 27x1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
| 14 | 27x2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
| 16 | 37x1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
| 14 | 37x2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
Cable sample: we can offer the sample free .
Zhengzhou hongda cable Co., Ltd.
Established Year:1999
Registered capital of RMB:5,000,000
Factory Area:300,000m2
Main products:
Areial bundle cable ,XLPE insulated power cable ,PVC insulated power cable ,electrical wire ,bare aluminum conductor(AAC AAAC ACSR )and so on
Main export county:
USA Philippines Malaysia Indonesia Venezuela, Colombia Mexico
Dominica India South Africa Zambia Kenya and so on .

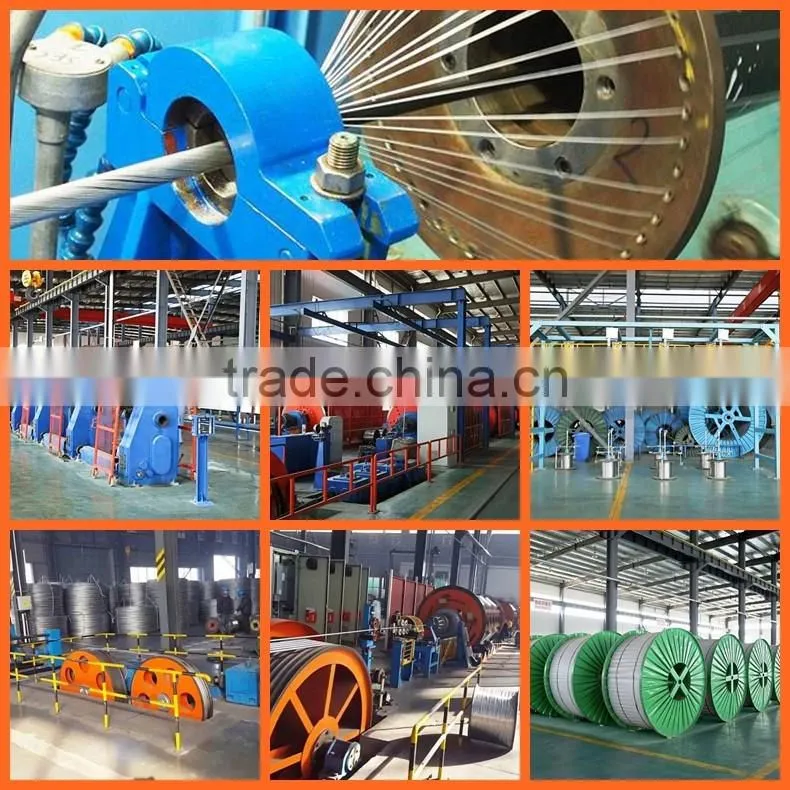

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Free issue:packaging list,invoice,CD installation
6. Powerful technology R&D team
7. Strict quality assurance system and perfect testing means
8. Advanced process equipment
9. Painted with powerful antiseptic Anticorrosion material paints
10. Delivery on time
11. Our roller coaster sales to Middle East,Africa,Russia,Southeast Asia, etc.
12.We have a good reputation in the overseas
we are one of the biggest manufacture in china mainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.
Also we can offer other service
Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
