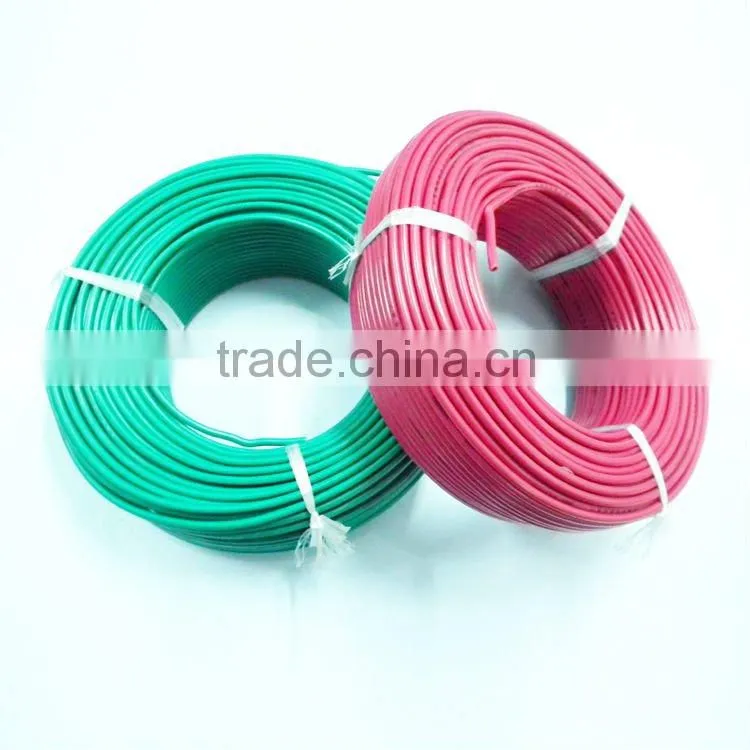

market price copper wire thw cable
American standard Building wiring
Type |
TW |
THW |
THW-2 |
TFF |
Temperature Rating |
60C |
75C |
90C |
60C |
Voltage Rating |
600V |
600V |
600V |
600V |
Description of Purpose: The cable is primarily used in building wiring.
Specifications & Construction
|
Nominal Cross Sectional Area ( AWG ) |
Conductor Structure No. / Dia. Of Single Wire ( No./mm ) |
Insulation Thickness ( mm ) |
Max. O.D. ( mm ) |
1 |
208/0.511 |
2.03 |
13.43 |
2 |
168/0.511 |
1.52 |
11.76 |
4 |
133/0.45 |
1.52 |
9.79 |
6 |
133/0.36 |
1.52 |
8.44 |
8 |
168/0.254 |
1.14 |
6.78 |
10 |
104/0.254 |
0.76 |
4.60 |
12 |
65/0.254 |
0.76 |
3.97 |
14 |
41/0.254 |
0.76 |
3.38 |
16 |
26/0.254 |
0.76 |
2.92 |
Note: The cables listed above are flexible structure.
|
Nominal Cross Sectional Area ( AWG ) |
Conductor Structure No. / Dia. Of Single Wire ( No./mm ) |
Insulation Thickness ( mm ) |
Max. O.D. ( mm ) |
14 |
7/0.62 |
0.76 |
3.38 |
12 |
7/0.77 |
0.76 |
3.83 |
10 |
7/0.98 |
0.76 |
4.46 |
8 |
7/1.23 |
1.14 |
5.97 |
6 |
7/1.56 |
1.53 |
7.71 |
4 |
7/1.96 |
1.53 |
8.74 |
2 |
7/2.47 |
1.53 |
10.45 |
1/0 |
19/1.89 |
2.03 |
13.46 |
2/0 |
19/2.12 |
2.03 |
14.86 |
4/0 |
19/2.68 |
2.03 |
17.26 |
350Kcmil |
37/2.47 |
2.41 |
22.34 |
500Kcmil |
37/2.95 |
2.41 |
25.47 |
750Kcmil |
61/2.82 |
2.79 |
30.96 |
