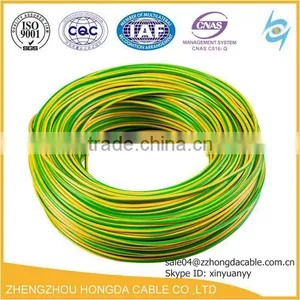

Help CenterLow Voltage Red Yellow Blue Green White Indoor Usage Copper Conductor Pvc Insulated BV BVVB BVR Electrical Power Cable
Related Products
-
BV/BLV Electric Cable With Copper/Aluminum PVC Insulated Copper WireUS$ 0.9 - 0.95MOQ: 1 Meter -
AWG Competitive Prices Copper Wire Pvc Insulation Single Copper Core Electric Wire Directly From FactoryUS$ 0.9 - 0.95MOQ: 1 Meter
-
Different Types of AWG 6 8 10 12 14 16 Household Building PVC Electrical Housing Copper WiresUS$ 0.9 - 0.95MOQ: 1 Meter
-
300/500V AWG 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 16mm2 Pvc Coated Copper Wire Electrical CableUS$ 0.9 - 0.95MOQ: 1 Meter
-
600V 90C/75C/60C Copper Conductor PVC Insulated TW / THW / THHW CableUS$ 0.9 - 0.95MOQ: 1 Meter
different types of AWG 6 8 10 12 14 16 household building PVC electrical housing copper wires
600V 90℃/75℃/60℃ Copper Conductor, PVC Insulated
1. Application
The THHW,THW ,TW cable is suitable for most current wiring solutions for residential,commercial and industrial environments.It is used in service entrance,feeders and branch circuits for permanent installations.
2. Temperature rating not to exceed:
THHW:90℃dry or 75℃wet ,600V
THW:75℃ dry or wet ,600V
TW:60℃ dry or wet ,600V
3. Standard: ASTM:B3,B8 UL:83,1581
4. Construction Conductor
Annealed copper,solid or stranded sizes 14 AWG up to 1000 MCM
5. Installation
For installation in conduits and raceways.Available colors are red,white,blue,green,black,etc.
6. Insulation
Premium grade Polyvinyl Chloride
7. Package: coil,reel,gift box,can do upon request.
8. Technical specification
Size |
No. of |
Nominal Thickness of PVC Insulation |
Approximate Overall |
Approximate Weight of Cable |
|||
AWG |
mm |
mil |
mm |
inch |
kg/km |
lbs/ 1000ft |
|
14 |
solid |
0.76 |
30 |
4.30 |
0.169 |
33 |
22.2 |
12 |
solid |
0.76 |
30 |
4.8 |
0.189 |
47 |
31.6 |
10 |
solid |
0.76 |
30 |
5.4 |
0.213 |
68 |
45.7 |
8 |
solid |
1.14 |
45 |
6.1 |
0.240 |
100 |
67.2 |
6 |
solid |
1.52 |
60 |
7 |
0.276 |
151 |
101.4 |
14 |
7 |
0.76 |
30 |
4.50 |
0.177 |
36 |
24.2 |
12 |
7 |
0.76 |
30 |
5.10 |
0.201 |
50 |
33.6 |
10 |
7 |
0.76 |
30 |
5.80 |
0.228 |
73 |
49.0 |
8 |
7 |
1.14 |
45 |
7.40 |
0.291 |
118 |
79.3 |
6 |
7 |
1.52 |
60 |
8.50 |
0.335 |
174 |
116.9 |
4 |
7 |
1.52 |
60 |
9.80 |
0.386 |
256 |
172.0 |
2 |
7 |
1.52 |
60 |
11.30 |
0.445 |
391 |
262.7 |
1 |
7 |
2.03 |
80 |
13.50 |
0.531 |
505 |
339.3 |
1/0 |
19 |
2.03 |
80 |
14.6 |
0.575 |
622 |
417.9 |
2/0 |
19 |
2.03 |
80 |
15.8 |
0.622 |
767 |
515.3 |
3/0 |
19 |
2.03 |
80 |
17.2 |
0.677 |
950 |
638.2 |
4/0 |
19 |
2.03 |
80 |
18.8 |
0.740 |
1179 |
792.1 |
250 |
37 |
2.41 |
95 |
20.9 |
0.823 |
1404 |
943.2 |
300 |
37 |
2.41 |
95 |
22.4 |
0.882 |
1664 |
1117.9 |
350 |
37 |
2.41 |
95 |
23.8 |
0.937 |
1923 |
1291.9 |
400 |
37 |
2.41 |
95 |
25 |
0.984 |
2180 |
1464.5 |
500 |
37 |
2.41 |
95 |
27.4 |
1.079 |
2694 |
1809.8 |
600 |
61 |
2.79 |
110 |
30.4 |
1.197 |
3241 |
2177.3 |
700 |
61 |
2.79 |
110 |
32.3 |
1.272 |
3751 |
2519.9 |
750 |
61 |
2.79 |
110 |
33.2 |
1.307 |
4007 |
2691.9 |
800 |
61 |
2.79 |
110 |
34.1 |
1.343 |
4260 |
2861.9 |
900 |
61 |
2.79 |
110 |
35.8 |
1.409 |
4769 |
3203.8 |
1000 |
61 |
2.79 |
110 |
37.4 |
1.472 |
5265 |
3537.1 |
Electric Cable Markings
All 4 core armoured Cable will carry the following items on the surface print:
Manufacturers Name
Electric Cable
Voltage Designation
British Standard Number
Cross Sectional Area
No. of Cores
Type of Cable
Date
NOTE: Items 1 to 4 will also be embossed on the Oversheath of the cable
Some special cable marking accept customized.
Electric Cable Application:
Company & Certification:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below:
Any other information of pls contact with me:
Vivian Yuan | Sales Director
Zhengzhou Hongda Cable CO., LTD.
Landline: +86 371 6097 5616 | Fax: +86 371 6097 5616
Email: sale04(at) | Skype ID: xinyuanyy
Cellphone/WhatsApp/Wechat/ICQ: +86 158 3829 0725
Address: Houzhai Industrial Park, Erqi Zone, Zhengzhou, China,450000
