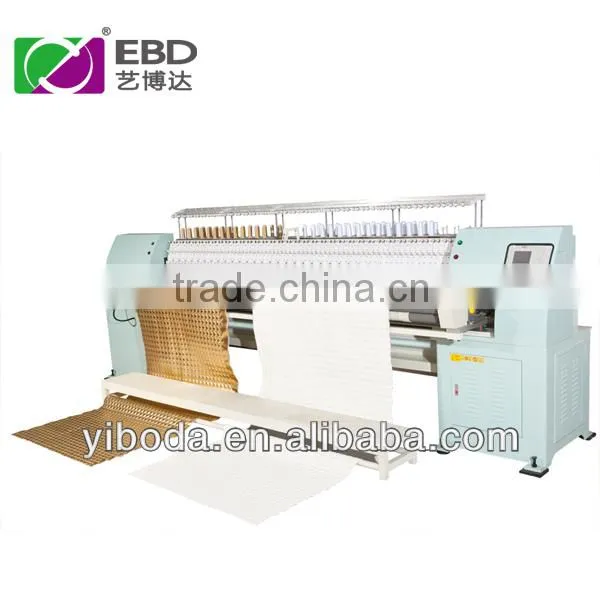

Computer hook quilting YBD333
Machine Application of computer hook quilting:
Bedding,Hand bag, Hand glove, bedspread, bedsheet, furnishings, sleeping bag
Special function for computer hook quilting(muti-functional ) :
1. Quilting and Embroidery completed simultaneously
2. Driving by roller system
3. Keep plain by tension motor for imported fabric.
4. Keep embroidery precision by Servo driving at x/y axis
5. Auto-trimming system (optional)
6. Auto-stopping function once thread broken.
7. Auto-return for patch-up embroidery function.
8. Freely heads quilting function.
9. Continuously quilting independent patterns function
10. Tajima, Barudan, ZSK and SWF formats art readable.
11. Unique mechanical structure can diminish self-vibration and noises.
12. Various stuffs are available for embroidery.
Embroidery Space: Two heads can be closed, which means the max embroidery space can reach 304.8mm at X axis movement.

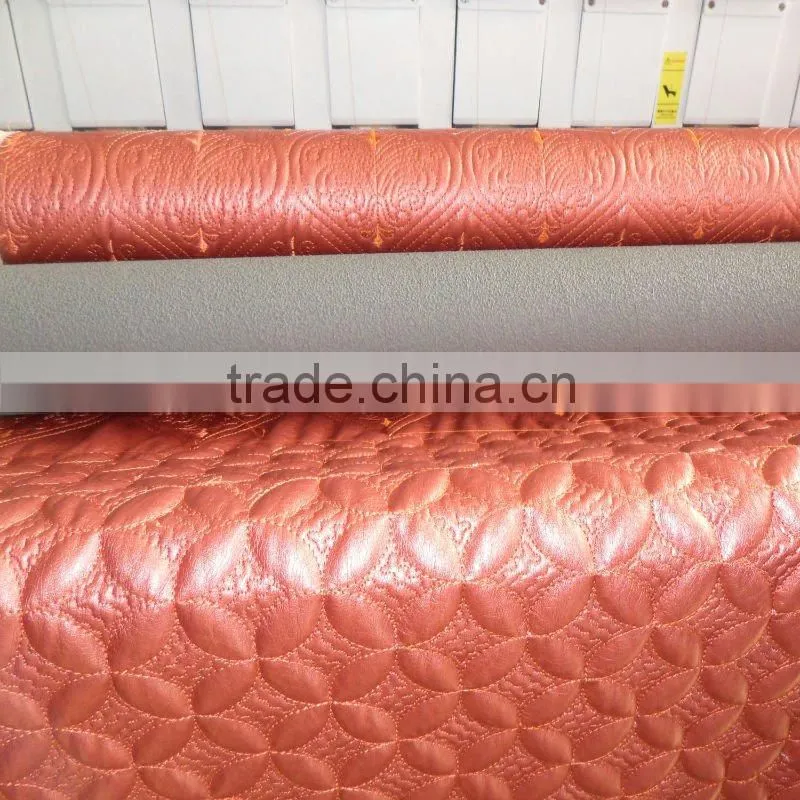

Quilt Pattern:
Technical Specification:
Quilting embroidery machine type
Model |
YBD325 |
YBD333 |
YBD318 |
Quantity of Heads |
25 |
33 |
18 |
Head Space |
135mm |
101.6mm |
101.6mm |
Effective Embroidery Width |
3350mm |
3300mm |
1800mm |
Machine Dimension |
5100x1400x1600mm |
5070x1400x1600mm |
3663x1626x1755mm |
Revolution Speed |
700 R.P.M—850 R.P.M |
||
Stitch Distance(mm) |
0.1 -- 12.7 |
||
Power Supply |
AC 220/380 V 2&3 Phases 50Hz |
||
After-sell Service
- With 1 year guarantee
- Offering spare part when delivery the machine
- Arrange client to our factory for product training, like installation, some technique details according to client’s requirement
- We can arrange our people to client’s factory for people training, settle any problem about the machine, but the food, accommodation, ticket will be afforded by clients.
