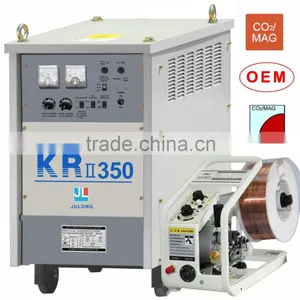

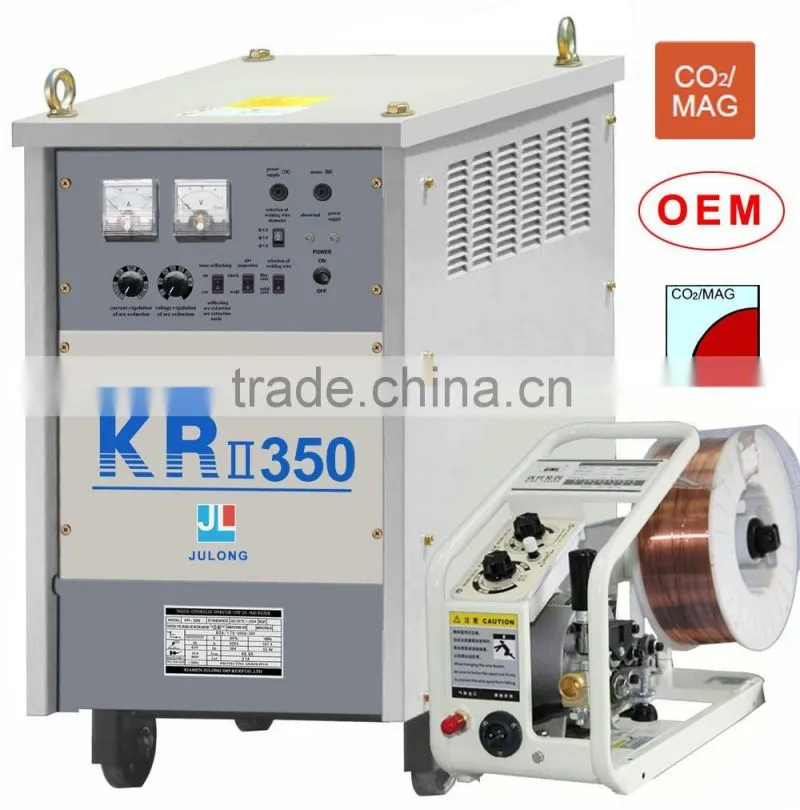

Help CenterCO2 Welding Machine With Thyristor Control KR-350N Most Popular
Related Products
-
CO2 Welding Machine With Thyristor Control KR-630DUS$ 500 - 2,000MOQ: 5 Sets -
CO2 Welding Machine With Thyristor Control KR-500D Quality ChoiceUS$ 950 - 950MOQ: 5 Sets
-
MIG Wire Welding Machine KR-350DUS$ 500 - 2,000MOQ: 10 Sets
-
Bestsales Panasonic KR350 500 KF200 250 CO2 MIG Welding Machine Circuit BoardUS$ 90 - 150MOQ: 10 Sets
-
Best Quality Panasonic KR350 500 CO2 Welding Machine PCBUS$ 86 - 200MOQ: 10 Sets
Only one manufacturer by producing the industrial-grade large-current design welding machine,It can be competed and exchanged with original panasonic welding machine.

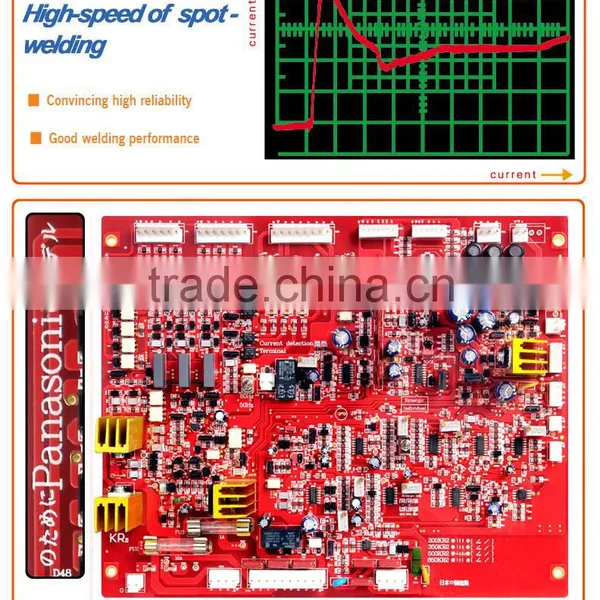

1.The heavy-duty welder ,adopt SMT circuit board,with unique features of
interference-resistance and protection technique ensures excellent performance in
severe condition environment,such as hight temperature,dust,vibration,and big current long-time working.
2.Small current performance :KR-500 work stably under current of 70A and is suitable for
vertical position welding,overhead position welding and thin material welding.With Φ1.2 welding wire.,
KR-500 are stably stable to weld on 1.2mm steel plate in 70-85A.
3.Extended working cable and unique extra-standard current output are designed to satisfy the
need of long working cable for remote distance and long-time work.
Such as,KR-500 can output current 570A.Welding current output for extended 50M integrative
cable can still remain above 460A.
4.GEORG (Germany) silicon steel sheet automatic cutting line, imported hi-speed punch equipped with hard
alloy machining module are adopted.Burr of single silicon sheet is controlled within 0.03mm.Output
current without load of main transformer is controlled within 2.0A.Thus loss of transformer is low,and
lifetime long,heat radiation low,current attenuation less after long working time.
5.The welder sale all around the world,such as:TAIWAN,TAILAND,,VIENTNAM,HUNGARY,RUSIA,SOUTH KOREA ect.
6.The enhanced products, With high-quality and low-price, can be made competitive bid with the international brands.
ITEM |
KR-350II(D) |
KR-500II(D) |
KR-630II(D) |
Rated Input Power Voltage |
3 Phase AC380V(canbe customized) |
||
Frequency (HZ) |
50/60 |
||
Rated Input Power Capacity(KVA) |
18.1 |
31.9 |
45 |
No-load Voltage(V) |
52 |
62 |
70 |
Rated Output Current(A) |
350 |
500 |
630 |
Rated Duty Cycle(%) |
60 |
60 |
60 |
Temperature Adapting Scope(℃) |
55℃ |
55℃ |
55℃ |
Current Adjusting Range(A) |
60-370 |
80-570 |
80-650 |
Output Voltage Range(V) |
17-32.5 |
18-42.5 |
18-44 |
Wire Diameter(mm) |
Φ0.8-Φ1.2 |
Φ1.2-Φ1.6 |
Φ1.2-2.0 |
Insulation |
H |
||
Dimension (mm) |
|
675×440×780 |
725×460×790 |
Weight (KG) |
128 |
158 |
200 |
