SCISSOR LIFT
From airports, plant buildings and hotels to office buildings and any commercial construction application, the Electrical Scissor Lift can be used virtually anywhere there’s work to be done. The global sourced key parts and safety controls make these machines extremely reliable. It’s the value you need without sacrificing performance and quality.
ARTICULATING BOOM LIFT
Electric powered: Helping your job site stay clean and green, electric articulated boom lifts are environmentally friendly equipment without emissions or loud engines.
Engine powered : Engine powered boom lifts get you into position quickly and efficiently for optimum productivity. They offer exceptional reach, high capacity, versatile performance, and easy maintenance.

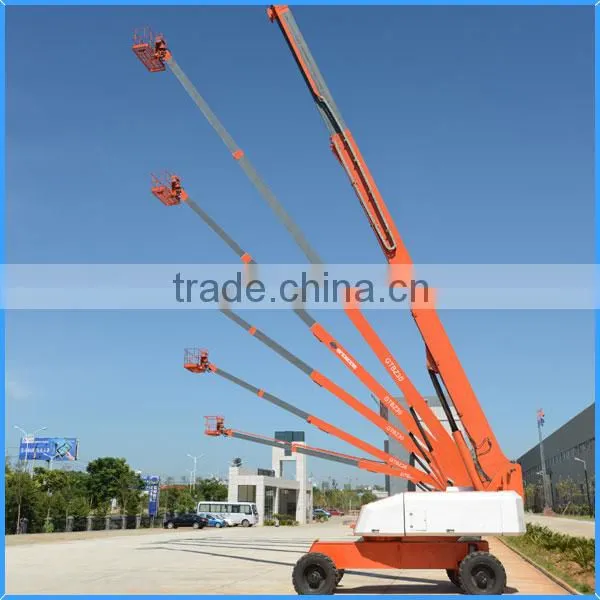

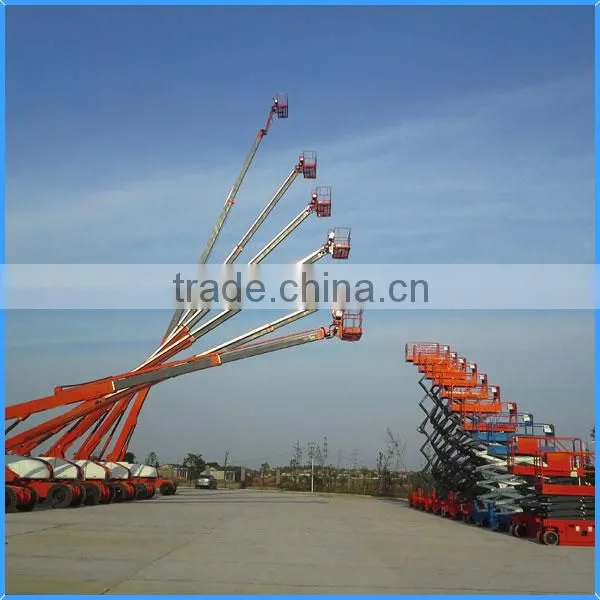

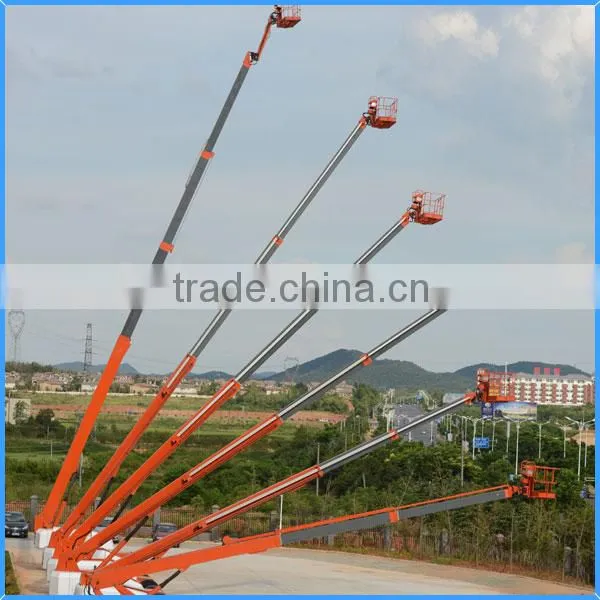

TELESCOPIC BOOM LIFT
A large working range up to 44m, Our machines deliver the tightest turning radius, and advanced systems management in the industry for easier, safer positioning,with excellent rough terrain performance and Maneuverability, let your work much more comfort and enjoy extra efficiency.
Technical parameters
SCISSOR LIFT
Models |
GTJZ0408S |
GTJZ0608S |
GTJZ0608 |
GTJZ0808 |
GTJZ1012 |
GTJZ1212 |
Platform height max. |
4.6m |
5.8m |
6.3m |
8.1m |
10m |
11.9m |
Working height max. |
6.6m |
7.8m |
8.3m |
10.1m |
12m |
13.9m |
Horizontal extended |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
Lift Capacity |
280kg |
230kg |
380kg |
250kg |
320kg |
320kg |
Gradeability |
30% |
30% |
30% |
25% |
25% |
25% |
Length-stowed |
1.775m |
1.775m |
2.39m |
2.39m |
2.39m |
2.39m |
Width-stowed |
0.76m |
0.76m |
0.81m |
0.81m |
1.15m |
1.15m |
Height-stowed |
2.08m |
2.06m |
2.22m |
2.35m |
2.48m |
2.6m |
Ground clearance |
0.07m |
0.07m |
0.1m |
0.1m |
0.1m |
0.1m |
Wheelbase |
1.315m |
1.315m |
1.85m |
1.85m |
1.85m |
1.85m |
Platform size(L*W*H) |
1.64*0.76* 1.1m |
1.64*0.76* 1.1m |
2.25*0.81* 1.1m |
2.25*0.81* 1.1m |
2.25*1.15* 1.1m |
2.25*1.15* 1.1m |
*ARTICULATING BOOM LIFT*
Models |
GTZZ14EJ |
GTZZ15 |
GTZZ15J |
GTZZ18J |
GTZZ25J |
Platform height max. |
13.7m |
14.8m |
15m |
18.4m |
24.6m |
Working height max. |
15.7m |
16.8m |
17m |
20.4m |
26.6m |
Horizontal extended |
7.4m |
7.62m |
8.5m |
12.1m |
16.1m |
|
Up and over clearance max. |
7.4m |
7.5m |
7.5m |
7.9m |
9.4m |
Lift Capacity |
227kg |
250kg |
250kg |
250kg |
230kg |
Gradeability |
30% |
30%(2WD)40%(4WD) |
30%(2WD)40%(4WD) | 40% | 45% |
Length-stowed |
6.54m |
5.7m |
7.68m |
8.6m |
11.36m |
Width-stowed |
1.75m |
2.26m |
2.26m |
2.28m |
2.48m |
Height-stowed |
1.99m |
2.16m |
2.16m |
2.54m |
3.16m |
Ground clearance |
0.2m |
0.32m |
0.32m |
0.23m |
0.39m |
Wheelbase |
2m |
2.03m |
2.03m |
2.44m |
3.05m |
Platform size(L*W*H) |
1.52*0.77*1.14m |
1.45*0.85*1.24m |
1.45*0.85*1.24m |
1.45*0.85*1.24m |
1.45*0.85*1.24m |
*TELESCOPIC BOOM LIFT*
Models |
GTBZ20 |
GTBZ22J |
GTBZ26 |
GTBZ28J |
GTBZ30 |
GTBZ32J |
GTBZ36 |
GTBZ38J |
GTBZ42J |
Platform height max. |
20.6m |
22.2m |
25.8m |
27.7m |
30.4m |
32m |
36.5m | 38.1m | 41.6m |
Working height max. |
22.6m |
24.2m |
27.8m |
29.7m |
32.4m |
34m |
38.5m | 40.1m | 43.6m |
Horizontal extended |
17.5m |
18m |
22m |
21m |
22.3m |
24.4m |
21m | 22.5m | 24.38m |
LiftCapacity |
340kg |
250kg |
480kg |
250kg |
480kg |
250kg |
480kg | 250kg | 480kg |
Gradeability |
30%(2WD) 45%(4WD) |
30%(2WD) 45%(4WD) |
30%(2WD) 45%(4WD) |
30%(2WD) 45%(4WD) |
42% | 42% | 40% | 40% | 40% |
Length-stowed |
9.57m |
11.2m |
11.54m |
13.22m |
13m |
14.02m |
12.5m | 14.02m | 13.1m |
Width-stowed |
2.49m |
2.49m |
2.49m |
2.49m |
2.49m |
2.49m |
2.49m | 2.49m | 2.49m |
Height-stowed |
2.84m |
2.84m |
2.88m |
2.88m |
3.08m |
3.08m |
3.08m | 3.08m | 3.05m |
Ground clearance |
0.45m |
0.45m |
0.41m |
0.41m |
0.43m |
0.43m |
0.43m | 0.43m | 0.65m |
Wheelbase |
2.49m |
2.49m |
3m |
3m |
3.66m |
3.66m |
3.66m | 3.66m | 3.81m |
Platform size(L*W*H) |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
2.44*0.91* 1.14m |
Production Line
Product Inventory
Application
Worldwide Show
About Us
Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
Contact Us
Hunan Sinoboom Heavy Industry Co., Ltd.
No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China
Tel: 0086-731-87116222
Skype:
Why Choose Us
1. Provide a various kinds of aerial work platform, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden or others).
We'll give you an exact quotation based on your demand after confirming the above information.
