Product introduction
Self-propelled aerial work platforms can travel at both fast and slow speed in various operation conditions. Only one operator working aerially is required to accomplish a series of movements consecutively, such as moving upward, downward, forward and backward and turning. Compared to traditional manual (hydraulic) platforms, it greatly improves working efficiency and lowers labor intensity and reduces numbers of operators required. Automatic alarming protection during platform descending is used to prevent from smashing. The product boasts light weight and large load capacity. The platform is removable and easy to transport.
Technical parameters

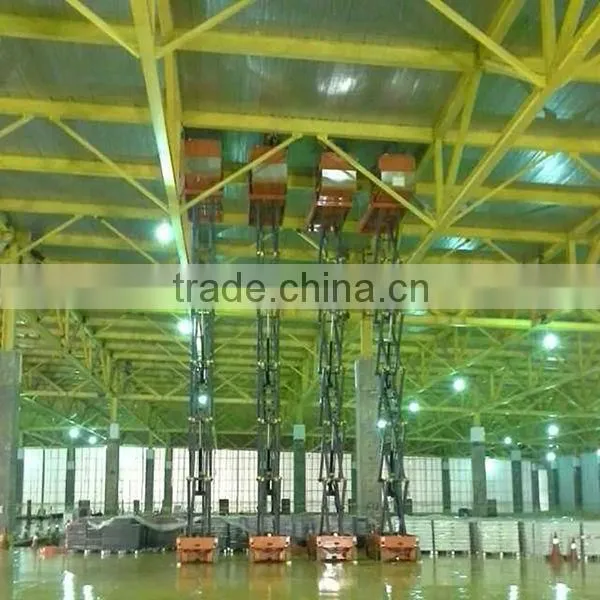

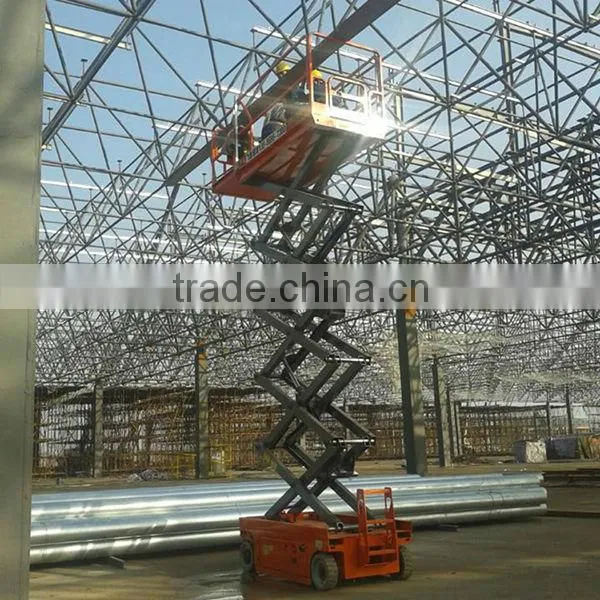

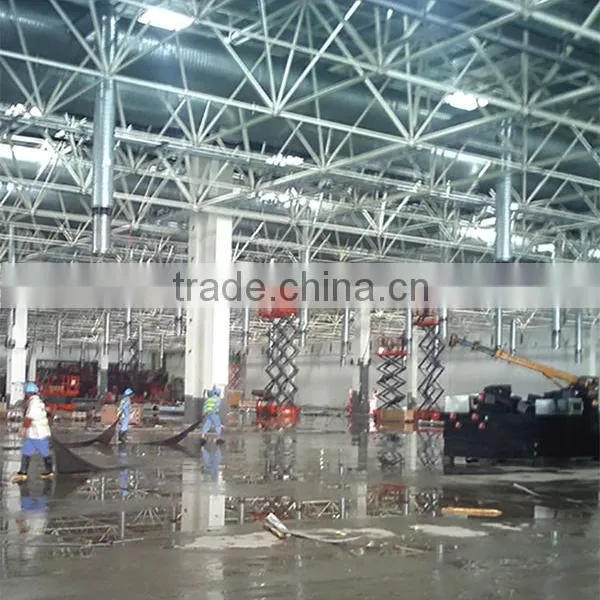

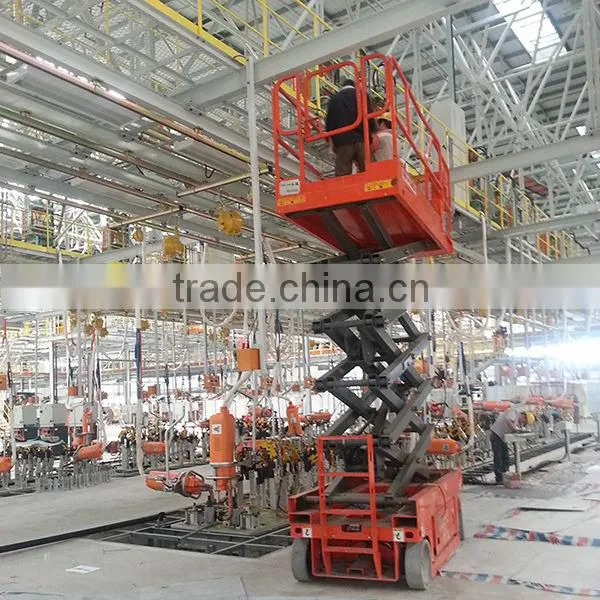

*SCISSOR LIFT*
Models |
GTJZ0408S |
GTJZ0608S |
GTJZ0608 |
GTJZ0808 |
GTJZ1012 |
GTJZ1212 |
Platform height max. |
4.6m |
5.8m |
6.3m |
8.1m |
10m |
11.9m |
Working height max. |
6.6m |
7.8m |
8.3m |
10.1m |
12m |
13.9m |
Horizontal extended |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
Lift Capacity |
280kg |
230kg |
380kg |
250kg |
320kg |
320kg |
Gradeability |
30% |
30% |
30% |
25% |
25% |
25% |
Length-stowed |
1.775m |
1.775m |
2.39m |
2.39m |
2.39m |
2.39m |
Width-stowed |
0.76m |
0.76m |
0.81m |
0.81m |
1.15m |
1.15m |
Height-stowed |
2.07m |
2.06m |
2.22m |
2.35m |
2.48m |
2.6m |
Ground clearance |
0.07m |
0.07m |
0.1m |
0.1m |
0.1m |
0.1m |
Wheelbase |
1.315m |
1.315m |
1.85m |
1.85m |
1.85m |
1.85m |
|
Platform size (L*W*H) |
1.64*0.76* 1.1m |
1.64*0.76* 1.1m |
2.25*0.81* 1.1m |
2.25*0.81* 1.1m |
2.25*1.15* 1.1m |
2.25*1.15* 1.1m |

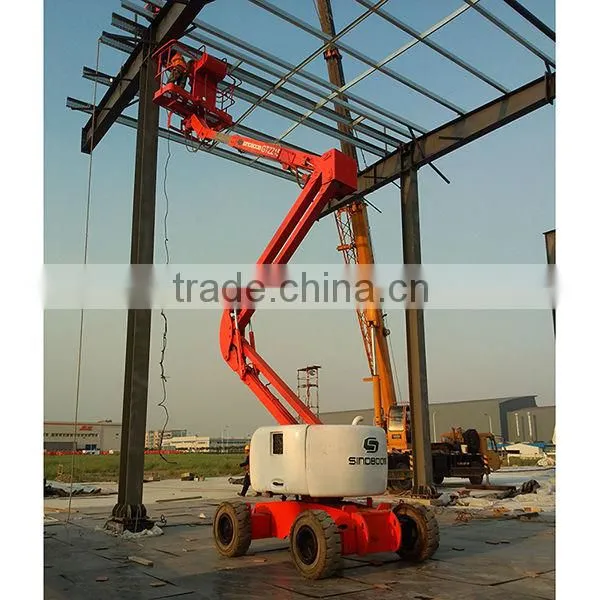

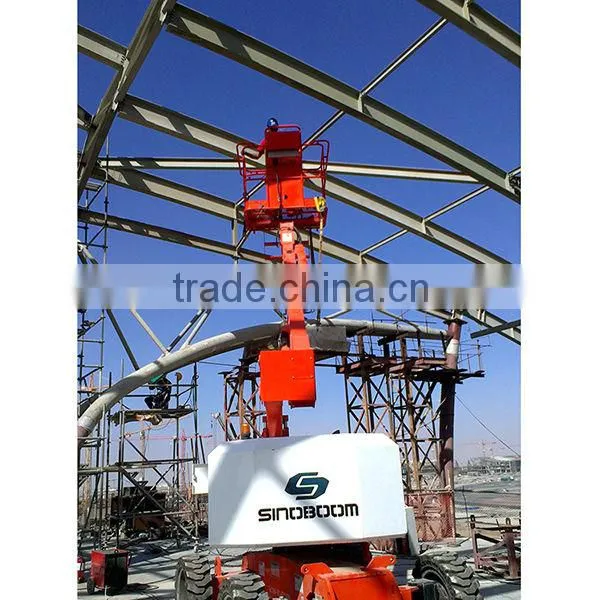

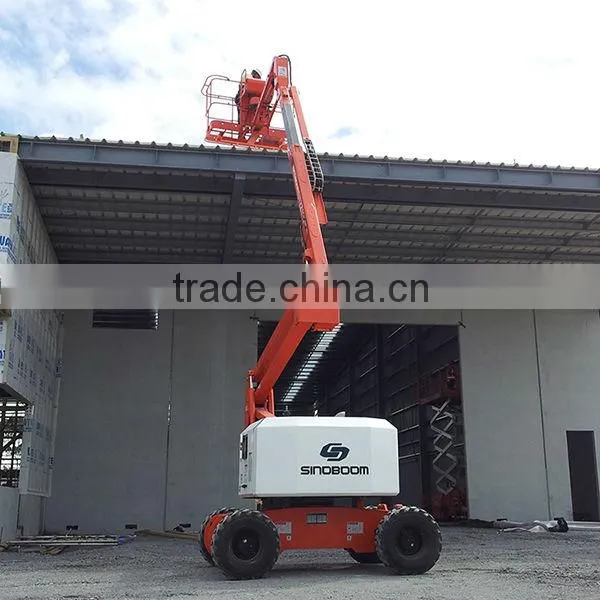

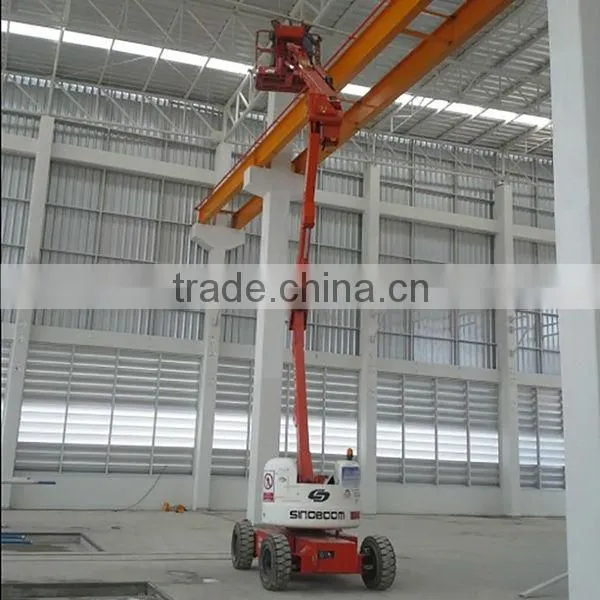

*ARTICULATING BOOM LIFT*
Models |
GTZZ14EJ |
GTZZ15 |
GTZZ15J |
GTZZ18J |
GTZZ25J |
Platform height max. |
13.7m |
14.8m |
15m |
18.4m |
24.6m |
Working height max. |
15.7m |
16.8m |
17m |
20.4m |
26.6m |
Horizontal extended |
7.4m |
7.62m |
8.5m |
12.1m |
16.1m |
Lift Capacity |
227kg |
250kg |
250kg |
250kg |
230kg |
Gradeability |
30% |
30%(2WD) 40%(4WD) |
30%(2WD) 40%(4WD) |
40% | 45% |
Length-stowed |
6.54m |
5.7m |
7.68m |
8.6m |
11.36m |
Width-stowed |
1.75m |
2.26m |
2.26m |
2.28m |
2.48m |
Height-stowed |
1.99m |
2.16m |
2.16m |
2.54m |
3.16m |
Ground clearance |
0.2m |
0.32m |
0.32m |
0.23m |
0.39m |
Wheelbase |
2m |
2.03m |
2.03m |
2.44m |
3.05m |
|
Platform size (L*W*H) |
1.52*0.77* 1.14m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
1.45*0.85* 1.24m |
Product Feature
Rough Terrain Performance- Oscillating axle and 4-wheel drive get you over rough terrain easily.
Better Maneuverability- Optimum maneuverability with 4-wheel steer.
More comfort- Automatic platform leveling provides operators comfort.
Extra efficiency- Models with jib offer extra working ability to hard-to-reach area.
Production Line
Product Inventory
Worldwide Show
About Us
Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.
Contact Us
Hunan Sinoboom Heavy Industry Co., Ltd.
No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China
Tel: 0086-731-87116222
Skype:
Why Choose Us
1. Provide a various kinds of aerial work platform, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden or others)
We'll give you an exact quotation based on your demand after confirming the above information.
