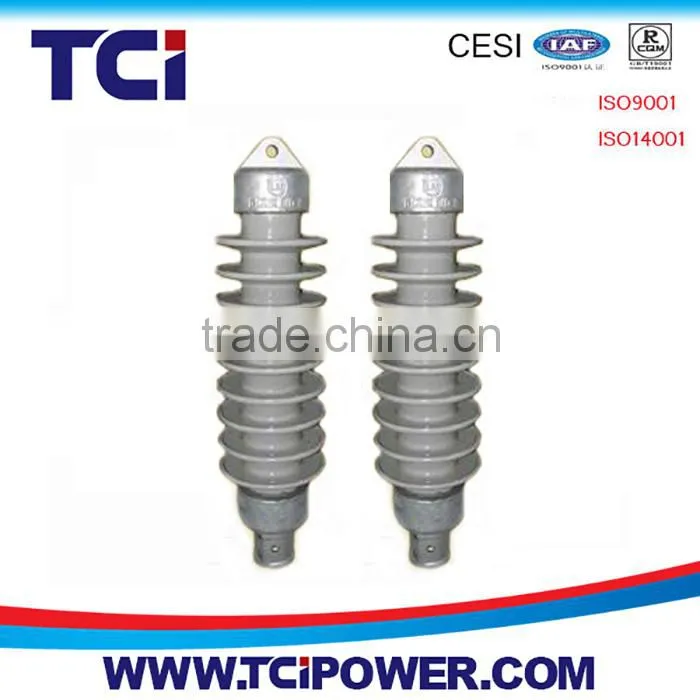

Solid Core Porcelain Insulator for Electrified Railway
US$ 3 - 8
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
TCI
Model Number:
tci4d-270/1200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polymer Insulators for Electrical RailwayUS$ 5 - 100MOQ: 1000 Pieces -
36kv 120kn Tension InsulatorUS$ 5 - 10MOQ: 100 Pieces
-
220kv 100kn Composite Suspension Insulator (FXBW4-220/100)US$ 5 - 10MOQ: 100 Pieces
-
Polymer Silica Support Insulator/Polymer Station Post InsulatorUS$ 5 - 15MOQ: 100 Pieces
-
Composite Silica Support Insulator/Composite Station Post InsulatorUS$ 5 - 15MOQ: 100 Pieces
Place of Origin
Liaoning, China
Brand Name
TCI
Model Number
tci4d-270/1200
Type
Insulator
Material
Porcelain
Application
High Voltage
Rated Voltage
27.5kV
Tensile Strength
N/A
Specifications
Solid Core Porcelain Insulator for Electrified Railway1.IEC,ANSI,GB is applicable.
2.ISO 19001:2000,14001
Solid Core Porcelain Insulator for Electrified Railway
Product Description
Standard: IEC,ANSI,BS,AS,DIN,CAN and GB and etc.
Colour: light gray,brown,white,sky blue and etc.
Non-standard products: Designed by TCI or specified by the customers.
Main Dimensions: H: 690 mm
D:180 mm
Nominal Creepage Distance : 1400 mm
Rated Voltage: 27.5 kV
Tensile strength: 40 kN
Wet low-frequency withstand voltage: 130 kV
Lightning Impulse Withstand Voltage: 270 kV
Pollution level: Equivalent to Salt: 0.3 mg/cm3
Withstand Voltage: 31.5 kV
Net weight: 16 kg
