Direct Heated Solar Water Heating

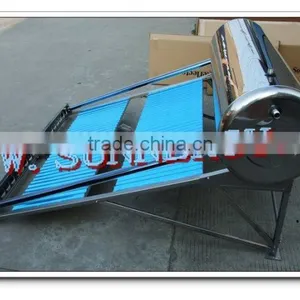

Direct Heated Solar Water Heating thumbnail-1

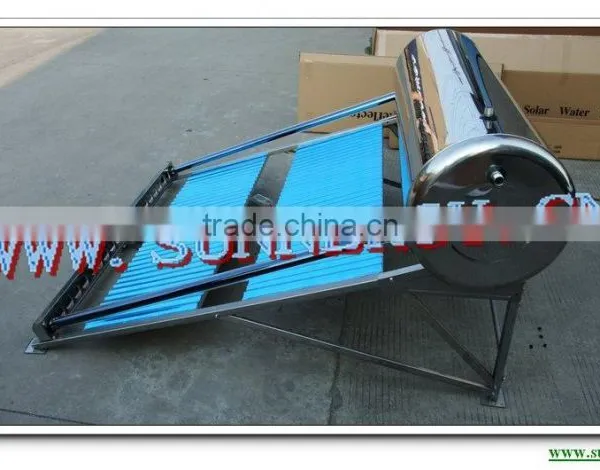

Direct Heated Solar Water Heating photo-1
US$ 50 - 520 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Contact Supplier Request Quote Chat Now
Changzhou Sunshine Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Evacuated Tube
Pressure Unpressurized
Circulation Type Direct / Open Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Direct-Plug
Installation Freestanding
Housing Material Stainless Steel
Certification CE, CE, Other, CE, CE, ISO9001-2000,SRCC ,SGS ,solar keymark
Capacity 180
Place of Origin Jiangsu, China
Brand Name SUNNERGY, SUNNERGY
Model Number SN SERIES

Specifications

Direct Heated Solar Water Heating
Non-pressurized Type
5 years quality warranty
OEM available
CE ISO9001-2000 SRCC CE SGS

 Direct Heated Stainless Steel Vacuum Tube Domestic Solar Water Heater Solar Geyser Calentadores Solares De Agua



Product name:  Stainless Steel Solar Water Heater
Product size:
Product class: Unpressurized Type
Product Introduction:

Stainless Steel System:
1. Material of Inner tank: SUS304-2B stainless steel with 0.4mm thickness
2. Material of Outer tank: SUS304-2B stainless steel with 0.31mm thickness
3. Magnetic-controlled Al-N-Al splash all glass evacuated heat-collecting tubes, fast heat absorbing and temperature risen
4. Heat Preservation Layer:55mm polyurethane integral foaming, superior heat preservation
5. Material of support:Stainless Steel Profiled Bar with 1.2mm thickness

Direct Heated Solar Water Heating
Model
Absorbing Area
(m2)
Glass Vacuum Tube
Tank Capability
(L)
Loading Qty(sets)
20"/40"
Ø(mm)
L(mm)
NO.(PCS)
420-1500/47-15-C
0.75
47
1500
15
85
66/137
420-1500/47-18-C
0.90
47
1500
18
100
56/115
420-1500/47-20-C
1.00
47
1500
20
111
50/105
420-1500/47-24-C
1.20
47
1500
24
135
44/92
420-1500/47-30-C
1.50
47
1500
30
166
36/75
470-1500/47-15-C
0.75
47
1500
15
113
51/102
470-1500/47-18-C
0.90
47
1500
18
140
44/88
470-1500/47-20-C
1.00
47
1500
20
150
42/84
470-1500/47-24-C
1.20
47
1500
24
180
33/66
470-1500/47-30-C
1.50
47
1500
30
230
30/60
470-1800/58-16-C
1.28
58
1800
16
133
44/91
470-1800/58-18-C
1.44
58
1800
18
150
39/81
470-1800/58-20-C
1.60
58
1800
20
165
35/73
470-1800/58-24-C
1.92
58
1800
24
200
30/62
470-1800/58-30-C
2.40
58
1800
30
250
24/50
