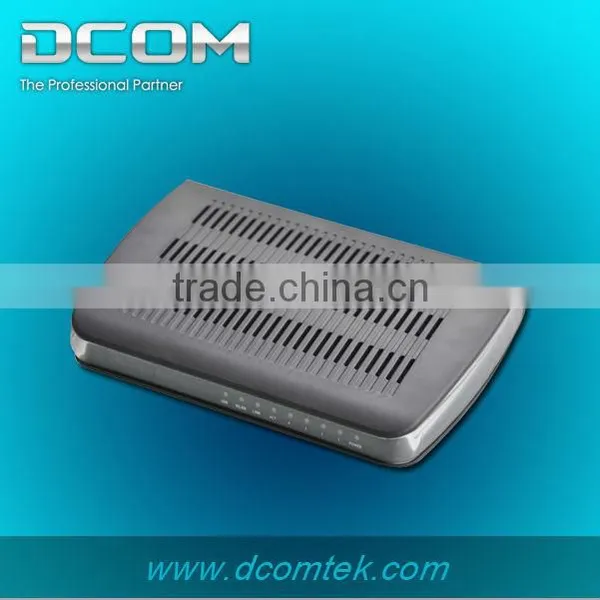

1 Port 54M Wireless ADSL 2/2+ COMBO Modem Router

US$ 18 - 20 MOQ: 1000 Pieces

Key Specifications

Products Status:

Stock

Type:

Wireless

Application:

Soho

Shenzhen Dcom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Wireless

Application Soho

Function Firewall, QoS, VPN

LAN Ports Other, 1

WAN Ports 1

Certification CE,FCC,ROHS

Brand Name OEM

Model Number DWA-100B

Place of Origin Guangdong, China

Specifications

1.3-in-1: ADSL2+ modem,4-port Ethernet router and wireless G access point
2.SPI and NAT Firewall protects LAN devices

Software Specification
ADSL Features	Full-rate ANSI T1.413 Issue 2
	ITU-T G.992.1 (G.dmt)
	ITU-T G.992.2 (G.lite)
	ITU-T G.994.1 (G.hs)
	ITU-T G.992.3 (G.dmt.bis)
	ITU-T G.992.3 (G.dmt.bis)	ITU-T G.992.5
	Max 6 kilometers
	Data Rates	Downstream: Up to 24Mbps
Upstream: Up to 3.5Mbps (With Annex M enabled)	Data Rates
ATM Features	UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5
	Multiprotocol encapsulation over ATM (RFC 1483)
	UBR, CBR, VBR-rt, VBR-nrt
	Supports 8PVCs
PPP Features	PPP over ATM (RFC 2364)
PPP Features	PPP over Ethernet (RFC 2516)
Switching Features	IGMP snooping
	IGMP multicast
	Port VLAN
	Tag VLAN
	IEEE 802.1d transparent learning bridging
Routing Features	Classical IP and ARP over ATM (RFC 1577/2225), MER, RIP V1/V2
	Static routing, IP, TCP, UDP, ARP
	NAT, NAPT, DNS, DDNS, DHCP Server
	UPnP, Virtual Server, DMZ
	SIP, H323 ALG
Wireless Features	Complies with IEEE 802.11g, IEEE802.11b
	11g: Up to 54Mbps(dynamic)
	Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security
	Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List)
	Wireless operating range: Indoor up to100m, Outdoor up to 300m
	Max wireless transmit power: 13dBm
	Antenna Gain:5dBi
	Frequency Range:2.4-2.4835GHz
Security	Stateful Packet Inspection (SPI)
	NAT
	Packet Filter
VPN Pass Through	IPSec/PPTP/L2TP Pass-through
QoS	IP Type of service(ToS)
QoS	802.1p
Device Management	HTTP, TELNET, Console
	Administration and operation software (firmware) upgradable locally by WEB, TFTP, FTP, Console
	SNMP V1/V2
	CWMP(TR-069)

Hardware Specification
Ports	1 10/100M LAN Port(RJ45)
Ports	1 Line Port(RJ11)
LED Indicators	Power, ADSL, Internet, WLAN, LAN
Dimensions (WDH)	6.94.71.1 in.(17412028.8 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
