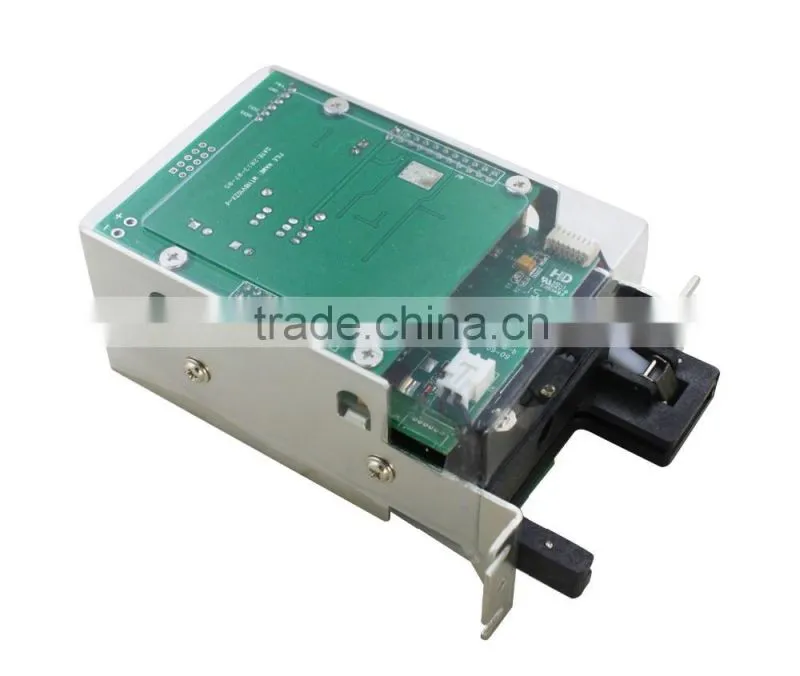

Features
Compact & light, high reliability & durability
Support contact IC card (ISO7816)
Support contactless IC card (ISO14443 TYPE A & B)
With automatic card lock & eject function, clog-proof, dust-proof, good environmental adaptability
Shock-proof design to avoid card ejection by external force
Card ejection in emergency
Power failure protection function (optional)
Various interface (customized)
With multi bezel (Optional)
Applications
Fuel Dispensers, CNG Dispensers, Electric Vehicle Charging Points/Piles & Stations
ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
Specifications(R: Read only, R/W: Read & Write)
CATEGORY |
Manual Dip |
|
CARD TYPE |
Contact IC Cards Contactless IC Cards |
|
IC CARD |
ISO/IEC 7816 |
R/W |
EMV |
Level 1 Compliant |
|
CONTACTLESS CARD |
ISO14443 Type A & B &Mifare |
R/W |
LIFETIME |
>500000 Cycles |
|
CARD LOCK & EJECT MECHANISM LIFETIME |
>500000 Cycles |
|
INTERFACE |
RS-232 |
|
POWER SUPPLY |
DC12V ± 5% |
|
CURRENT |
Current: ≤50mA Max: ≤800mA |
|
WORKING TEMPERATURE |
-40-+65°C |
|
WEIGHT |
Approx 297g |
|
REMARK |
With shutter & multi bezel(optional) |
|
