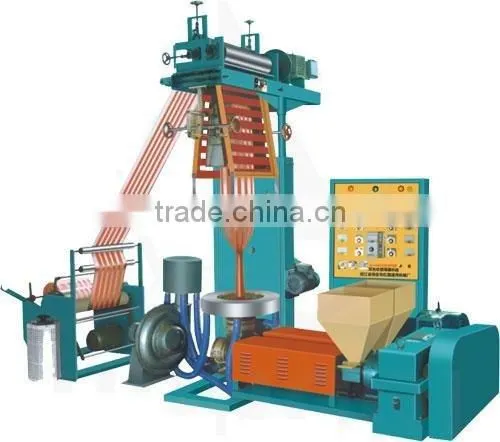

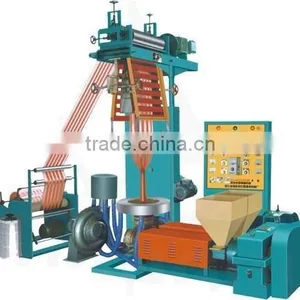

Double-colour Film Blowing Machine

Double-colour Film Blowing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China

Specifications

Double-colour Film Blowing Machine
extruder are made of high-quality alloy steel
(LDPE) and (HDPE)

description:
SJ-40Dx2x600type
Double-colour Film Blowing Machine Set
Characteristics:

The cylinders and the screw stems of model SJ-40D¡Á2 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technologjcal requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag ,The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Use:
It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polythylene(HDPE) colour striped plastic film, etc, Which are widely used for packing food, fruit,garments, textile, dailly necessities and other civil and industral products.
Main Technical Variables:

Model
SJ-40Dx2x600
Screw Diameter
40mmx2
Screw Ratio
L/D28:1
Screw Speed
10-100r/min
Power of Main Motor
11KW
Main Output
30kg/h
Max.Folding Width of Film
580mm
Single-sided Thickness of Film
0.006-0.06mm
Lifting Range of Auxiliaty Machine
2200kg
Overall Dimensions
3800x2000x2800mm

Design and specifications are subject to change without notice.
Note:the user should place an order with us super-huge machine set.
