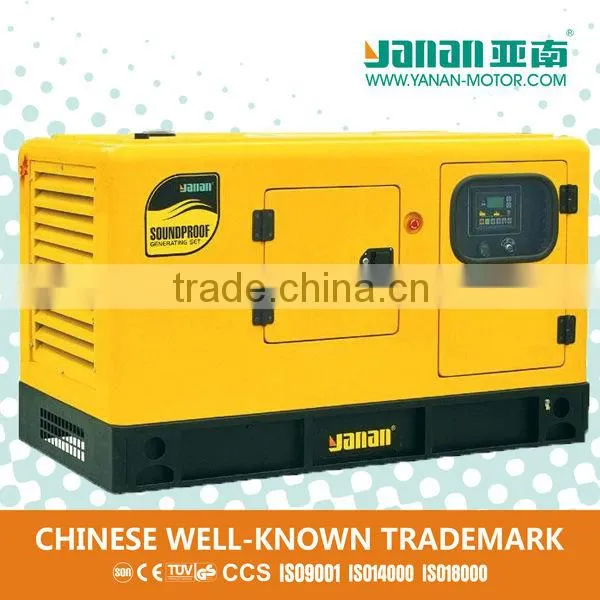

Yanan Fuel Less Cummins Diesel Generator 250kw

Name: Yanan Fuel Less Cummins Diesel Generator 250kw
Brand: YANAN
SKU: 113943399

US$ 30,000 - 40,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

YANAN

Model Number:

C250/S

Fujian Fuan Mindong Yanan Electric Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name YANAN

Model Number C250/S

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 8.1-2200KVA

Rated Voltage 400V

Rated Current 452A

Specifications

Yanan Fuel Less Cummins Diesel Generator 250kw
1:Engine model:NTA855-G1
2:Output:250KW
3:Certificate:UL,CE,SONCAP,CCE etc.

Product Description

Yanan Fuel Less Cummins Diesel Generator 250kw
Diesel Generator Set
GENSET MODEL NOS.	C250/S
Manufacturer	Yanan
Rated speed / frequency	1500RPM/50Hz
Continuous output(KW/KVA)	250/312
Standby output(KW/KVA)	280/350
Voltage, Phase and wire	400V/230V, 3 Phase and 4 Wires
Rated power factor	0.8(lagging)
Dimension(LWH) (mm)
Weight(kg)
Rating Definitions (Operation at Altitude ≤1000m, Ambient temperature ≤ 40°C)
These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Diesel Engine
DIESEL ENGINE MODEL	MTAA11-G3 (Cummins)
Engine Characters	Water-cooled, 4 cylinders in line, 4-cycle, direct injection
The engine output(KW)	250
Aspiration	Turbocharged & Aftercooled
Bore(mm)×Stroke (mm)	125*147
Compression ration	15.0:1
Fuel consumption(L/H)	62(100% load)
Displacement(Liters)	38
Exhaust air flow(m3/min)	1825
Compress air flow(m3/min)	89.2
Exhaust gas flow(m3/min)	57
Exhaust highest temperature	545°C
Lub-oil pan capacity(L)	135
Cooling water capacity(L)	61
Voltage for start(V)	24
Instrument for adjusting speed	Electronically
Noise level(A)	≤85dBA(open)
ALTERNATOR
ALTERNATOR MODEL	HCI444ES (Stamford)
Excitation	Brushless
Insulation class	H
Protection class	IP22
Efficiency	94.70%
Voltage adjust range	±0.5% with 4% engine governing
Steady state voltage regulation	≤±1%
Voltage Control	AVR
