1mm PMMA end glow plastic fiber optic for lighting
A. Features:
1. Low-loss fiber optic window in the light-visible area;
2. Smooth surface;
3. No conductivity or heat transfer;
4. Ability to transmit visible light but not ultraviolet or infrared;
5. Good flexibility bendable shape;
6. Waterproof.
B. Applications:
1. Ceiling star light;
2. Fiber optic illumination curtain;
3. Fiber optic chandelier;
4. Lighting cloth;
5. Graphic pattern and Logo;
6. 3D mirror;
7. DIY, etc .
We provide full types of plastic fiber optic for lighting and Free Samples for customers. You can rely on us!
C. Plastic Fibr Optic Basic properties:
Fiber core material |
Polymethyl methacrylate (PMMA) |
Clad material |
Fluororesin |
Appearance |
Smooth, transparent |
Numerical aperture |
0.5 |
Elongation-at-yield rate |
≥4 |
Allowable bend radius |
No less ten times of the optical fiber diameter |
Using temperature range |
-20~+70 centigrade |
D. Plastic Fibr Optic Model specifications:
Model |
Fiber optic diameter(mm) |
Roll length(m/roll) |
LF-250 |
0.25 |
12000 |
LF-500 |
0.5 |
6000 |
LF-750 |
0.75 |
2700 |
LF-1000 |
1.0 |
1500 |
LF-1200 |
1.2 |
1000 |
LF-1500 |
1.5 |
700 |
LF-2000 |
2.0 |
350 |
LF-2500 |
2.5 |
250 |
LF-3000 |
3.0 |
150 |

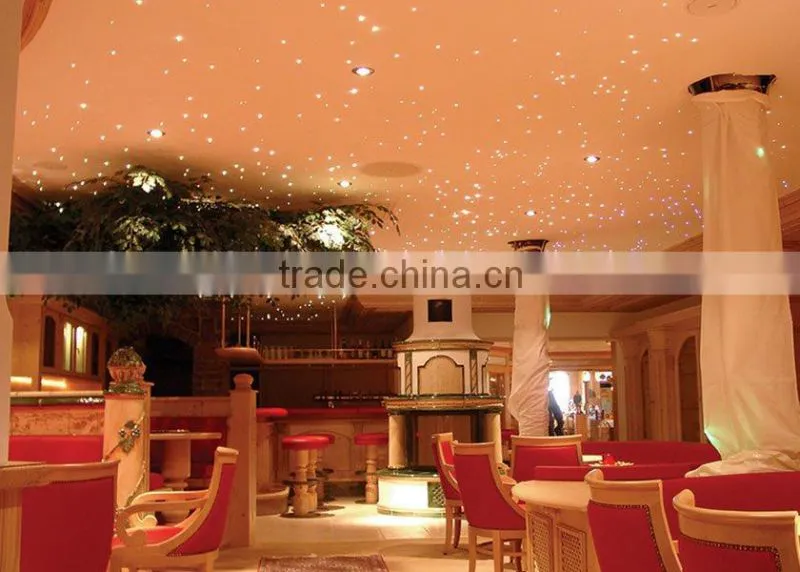

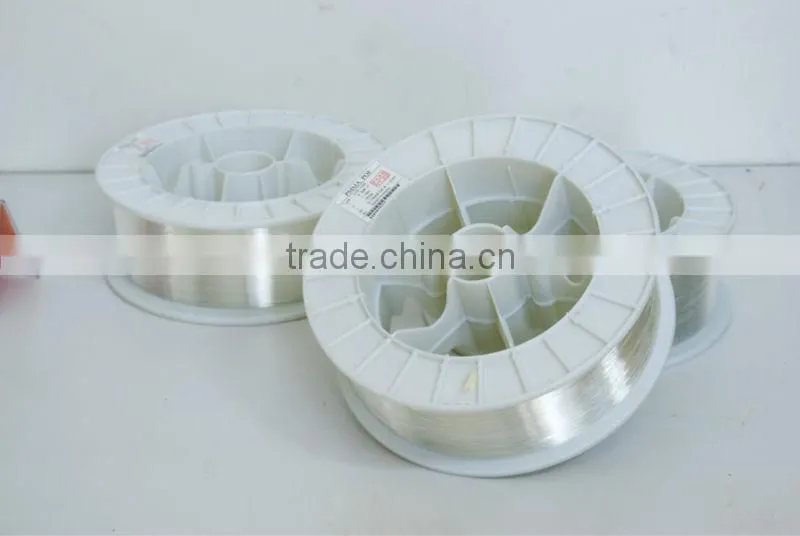

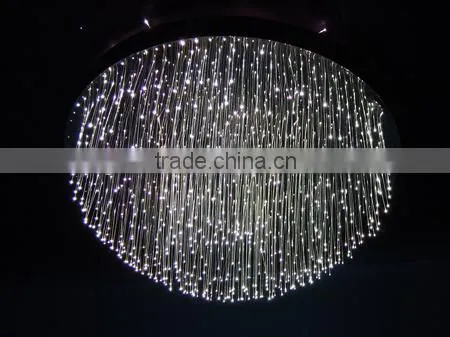

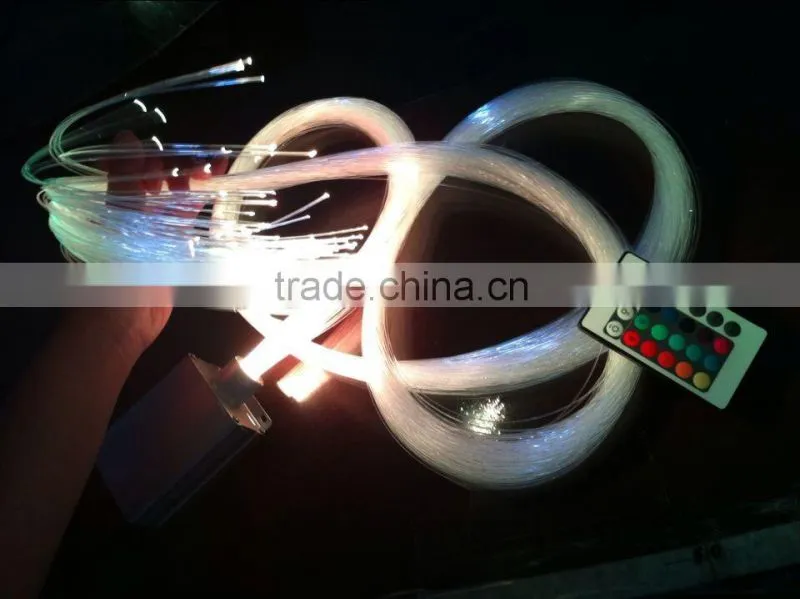

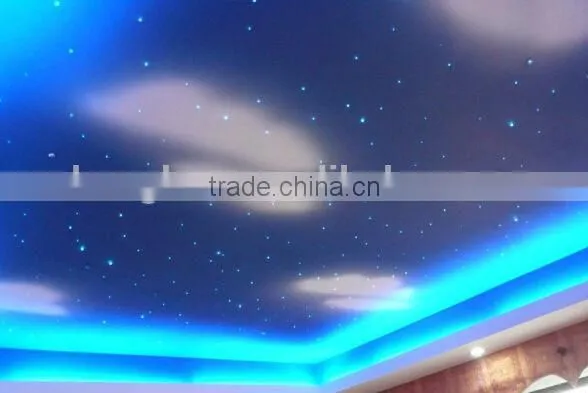

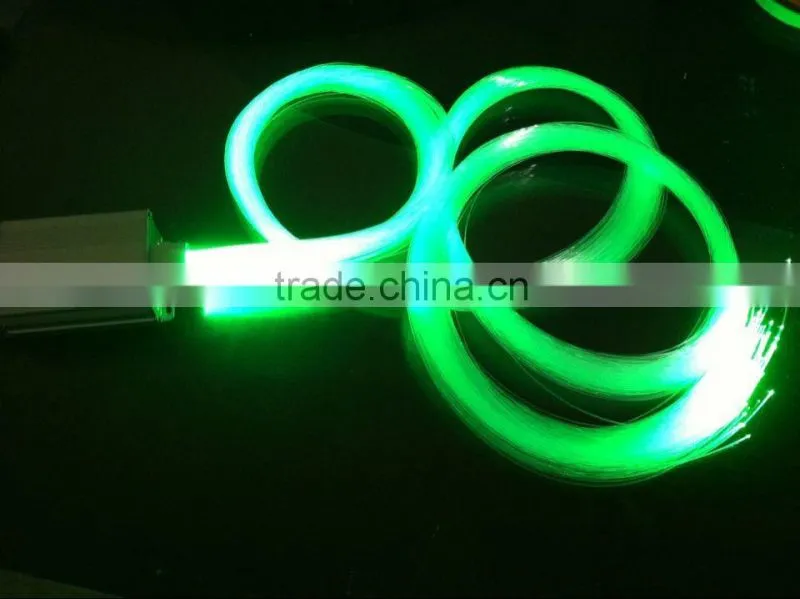

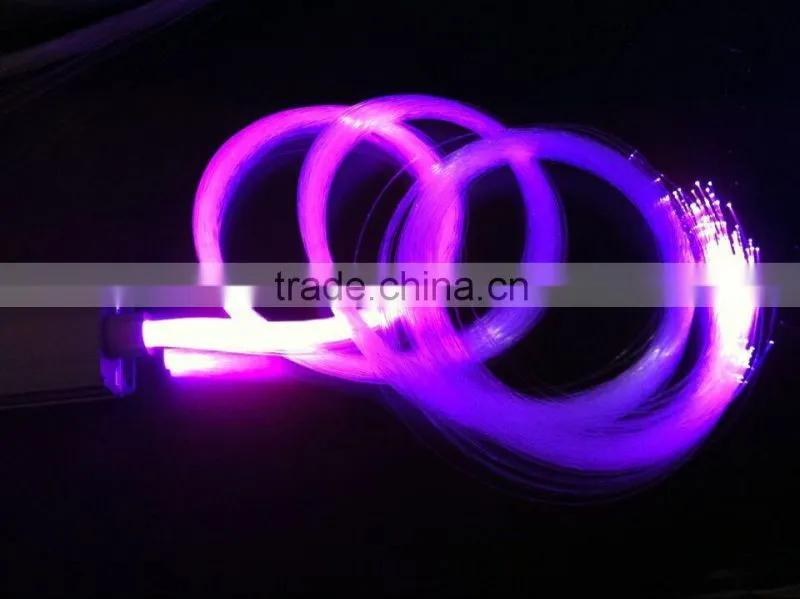

E. Plastic Fiber Optic Show:

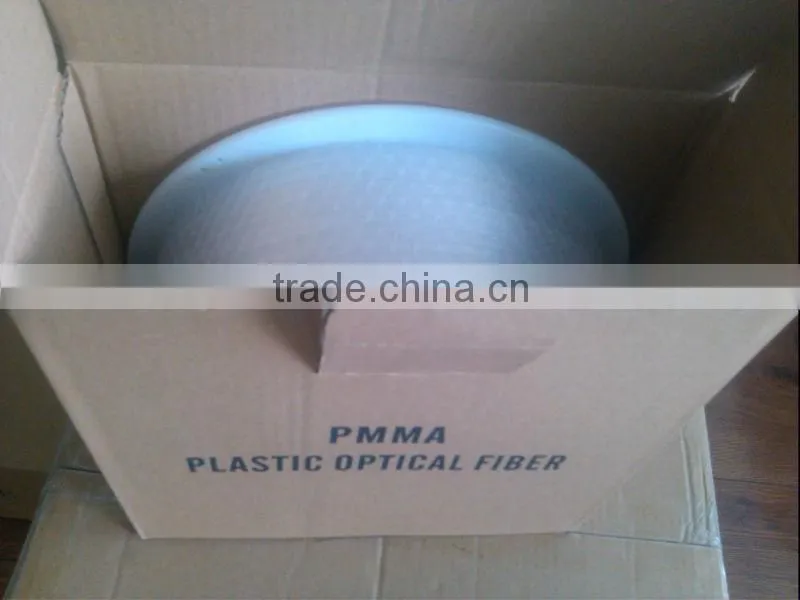

F. Plastic Fiber Optic Packing:
G. Certificate:
H. Factory:
I. Contact Information:
If you have any question or requirement, please feel free to contact me.
