Specifications
1. compressive strength test of concrete drainpipes;2 .Maximum capacity: 600KN,60t;
3. Manual control the load;

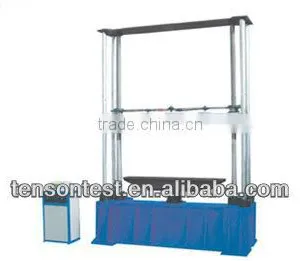

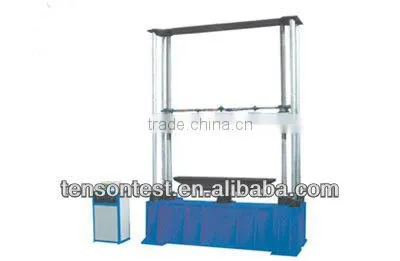

YGS-600 Digital Display Type Concrete Drainpipe Pressure Testing Machine
Introduction
The testing machine is mainly used to test compression strength of various concret drainpipe.
The testing machine meets test standard GB/T16752-97<Test Method of Concrete and Reinforced Concrete Drainage and Sewer Pipe>,GB/T11836-99<Concrete and Reinforced Concrete Sewer Pipe>.
Main Technical Parameters
Max test force (KN) |
600 |
Force accuracy |
Better than ±3% of indicating value |
test space (W x H) (mm) |
2200×2200 |
Piston Stroke (mm) |
0~600 |
Subsection |
Three subsection 1,2,5 |
Overall dimension of host machine (LxWxH) (mm) |
3000×1140×4200 |
Power supply |
380V±10%,50Hz |
Weight (kg) |
Appr. 6500 |
Function and Features
3.1. Host machine
3.1.1 The main machine has two columns
3.1.2 Manual control the load, easy and convenient to operate
3.1.3 Limit protection device, keep safe
3.1.4 Auto-load when the force is more than 2%-10% of full scale
3.2. Display system
3.2.1 The machine can display testing force, force peak, because it adopts advance data acquisition chip.
3.2.2 Follow the load ratio, it is much more even and accurate
3.2.3 It has data interface, can connect with internet and realize sharing the resources.
