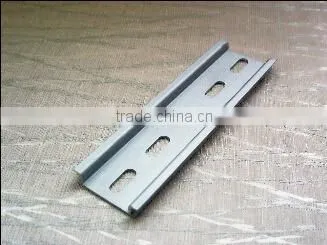

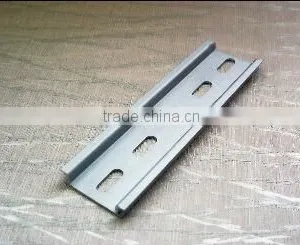

Help Center1.5mm Thickness Aluminum Din Rail Mounting
Related Products
Din rail mount
Din rail mount :A Din rail mount is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany
1.Specification
Brand: T&G
Item: Din rail mount
Model No.: T&G D357.5B15
DIN Type: 35 mm standard din rail
Cross Section Dimension: 35mm x 7.5mm x 1.5mm (Width x Height x Thickness)
Slot Dimension: 5.5mm x 15mm on 25mm center (other slot dimension available upon request)
Weight: 0.315 kg per meter
Material: Cold rolled steel with a zinc chromate plating
RoHS Compliance:yes
Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525
2.
Data Sheet of Din rail mount
Din Type |
EN60715 |
Material |
Aluminum Alloy |
Anodizing surface finished | |
Salt Spray Test |
Over 72 hours |
Application |
used for mounting circuit breakers and industrial control equipment inside equipment racks
|
Model |
T&G D357.5B15 |
MOQ |
A.Small Orders is accepted |
B.By Sea: The MOQ.is 1000M will be fine | |
Payment Term |
A.L/C,T/T (Bank Transfer,Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
D.ESCROW | |
Delivery Time |
A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Delivery Term |
FOB NINGBO/SHANGHAI,CIF C&F and others |
Supply Ability |
2000000M per year |
Packaging Details |
A.Common Packing:100pcs /carton+ export carton |
B.Customized Packing:Over 30000M, Customized package accepted | |
Origin Country |
Hangzhou,China |
Certification |
RoHS Compliant |
3.Drawing of Din rail mount
T&G D357.5B15 | |
Width |
35mm |
Height |
7.5mm |
Thickness |
1.5mm |
Hole Dimension |
5.5mmx15mm on 25mm center(hole can be customized) |
Drawing: | |
| |
4.Raw Material quality certificate
5.Main Market
Cooperative Partner
6.Package of the Din rail mount
7.Loading the Container
8. Application
FAQ
T&G Din rail mount is easily fit the DIN Rail cutter manufactured by normal manufacturers.
T&G Din rail mount use steel products produced by domestic ultra-large steel works.
All Din rail mount are gone through strict inspection before shipment.
