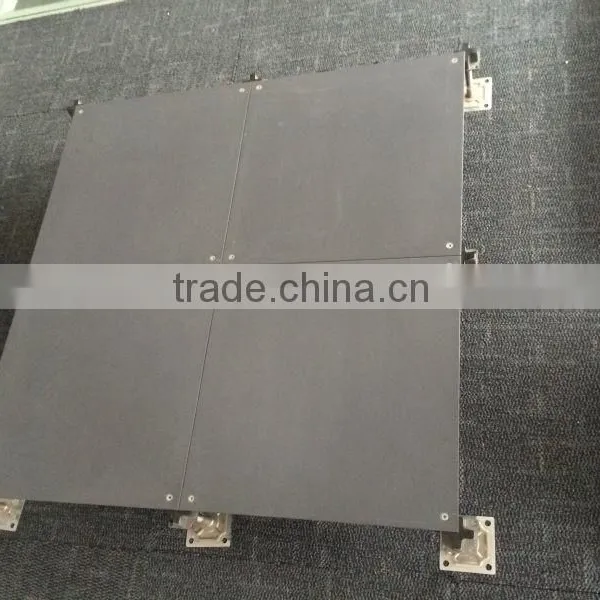

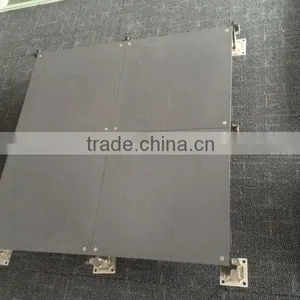

OA Bare Finished Raised Floor System(Bare Panel)
Model: OA600-Q/B/Z/CZ
Dimension: 600×600×35/30(mm)
TYPE |
Concentrated Load |
Impact Load |
Ultimated Load |
Uniform Load |
Rolling Load |
|||
LB |
N |
KG |
N |
N |
N/SQM |
10passes |
10000passes |
|
OA600-Q |
≥800 |
3550 |
363 |
670 |
≥9400 |
≥14680 |
3560 |
2670 |
OA600-B |
≥1000 |
4450 |
453 |
670 |
≥11970 |
≥16900 |
4450 |
3560 |
OA600-Z |
≥1250 |
5550 |
567 |
670 |
≥14360 |
≥22240 |
5560 |
4450 |
OA600-CZ |
≥1500 |
6660 |
680 |
780 |
≥17950 |
≥26690 |
≥6670 |
5560 |
Common specification/Panel material: Steel + Lightweight Cement

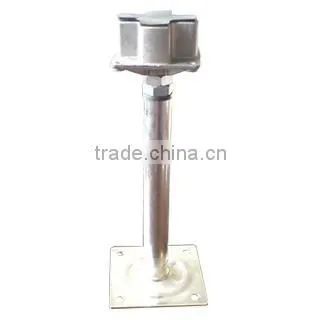

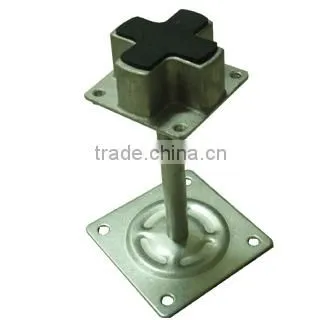

Pedestal
Low floor type High floor type
OA Steel Panel is made of quality steel plate, which is stretched forming welded and sprayed with bubble cement filled in its inner cavity. Its pedestal is plated with zinc and cast aluminum alloy, whose height is adjustable and can be self-locked. The steel panel can be shaped by either slicing or riveting. In order to meet the requirements of the multi-functional intelligent building, OA raised floor is equipped with double wiring chip boxes to avoid the unnecessary inconvenience. Installed by beamless angle bars, the panels are firm, stable and easy to handle.

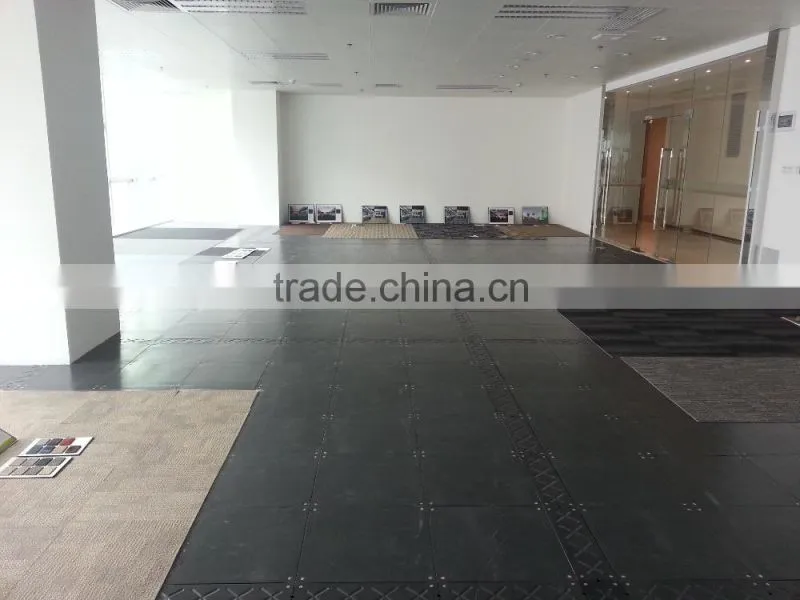

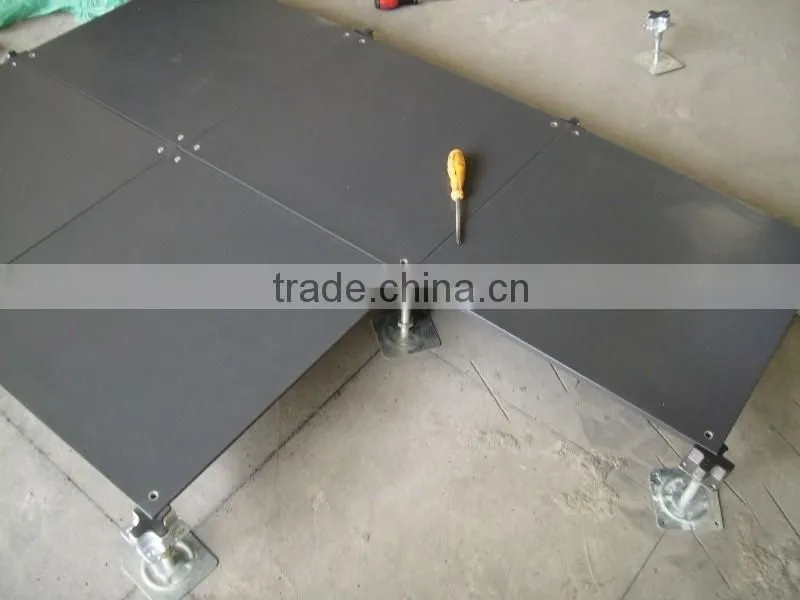

Installed Example
Applicable fields:
OA Steel Panel is fit for intelligent office building, OA classroom or places need to be raised, dust-free or waterproof.
Characteristics:
All steel assembly structure with high strength and strong anti-impact ability.
High precision of dimensions and good interchange ability.
Surface is treated with static electricity painting, owning good performance for anti-corrosion and long life for use.
Fire-proof, water-proof and dust-proof.
Wiring chip port is molded forming to make it easier for assembling wires and outlet boxes.
Lower space can be used for air-conditioning ventilation.
With regard to bearing loads of excessive heavy equipment, the loading problem can be solved by adding pedestals under the floor.
Convenient work for both assembling and dismantling brings high re-use factor.
We have supplied and installed access flooring for a variety uses such as computer rooms, meeting rooms, data processing centres and offices.
HUIYA Access Floors is ISO 9001 & ISO14001 accredited for both its manufacturing and installation operations. All designed and manufactured to the latest industry standards and backed up by our industry-leading in-house product testing and technical support facilities.
We could produce: antistatic steel cementitious raised flooring(HPL raised flooring,PVC/Vinyl Raised flooring,Ceramic raised flooring),woodcore access floor,OA bare panel,perforated panel/air flow floor,calcium sulphate core raised flooring,Aluminum Solid Panel,pedestal,stringer
