Marine Cast Iron Globe Valves JIS F7309 16K
US$ 45 - 287
MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Other, globe valve
Pressure:
Other, 16K
Material:
Other, Cast Iron
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JIS Marine Bronze Screw Down Check Globle Valve F7351 5KUS$ 20 - 100MOQ: 1 Piece -
Marine Bronze Screw Down Check Angle Valves JIS F7352 5KUS$ 20 - 90MOQ: 1 Piece
-
Marine Cast Iron Gate Valves JIS F7363 5K/ F7364 10K/F7369 16KUS$ 30 - 1,300MOQ: 1 Piece
-
Marine Bronze Globe Valves SDNR JIS F7409 16KUS$ 30 - 125MOQ: 1 Piece
-
Marine Bronze SDNR Angle Valves JIS F7410 16KUS$ 30 - 120MOQ: 1 Piece
Structure
Other, globe valve
Pressure
Other, 16K
Material
Other, Cast Iron
Power
Manual
Media
Other, Water, Oil

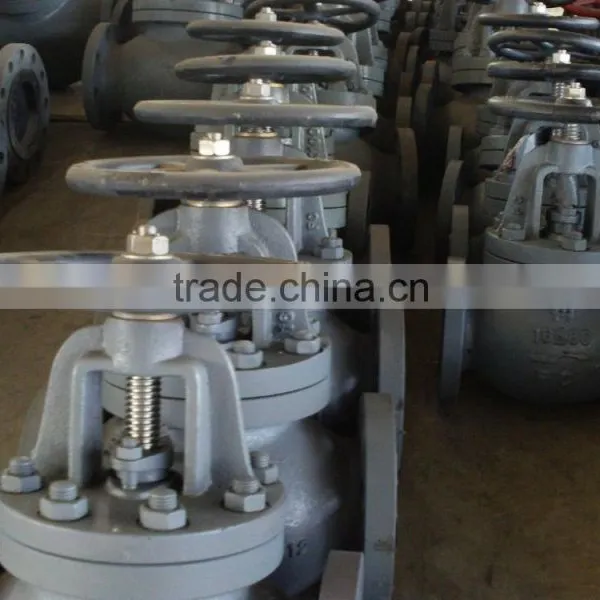

Marine Cast Iron Globe Valves JIS F7309 16K

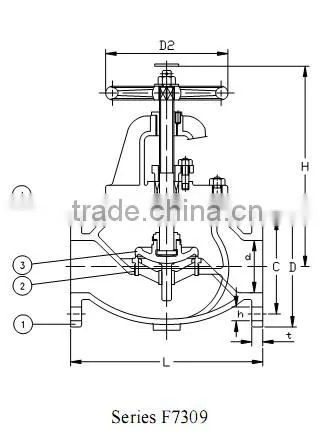

MAIN DATA FOR JOINING(mm)
| SIZE | IMPA | FACE TO FACE (MM) |
FLANGE DIAM (MM) |
PITCH | HOLE | WEIGHT (KG) |
| 50MM | 750261 | 220 | 155 | 120 | 8×19 | 19.60 |
| 65MM | 750262 | 270 | 175 | 140 | 8×19 | 28.30 |
| 80MM | 750263 | 300 | 200 | 160 | 8×23 | 40.40 |
| 100MM | 750264 | 350 | 225 | 185 | 8×23 | 56.90 |
| 125MM | 750265 | 430 | 270 | 225 | 8×25 | 89.50 |
| 150MM | 750266 | 500 | 305 | 260 | 12×25 | 123.00 |
| 200MM | 750267 | 570 | 350 | 305 | 12×25 | 188.00 |
MATERIALS OF MAJOR PARTS
| Part Name | Material | |||||
| Name | Mark(B) | Name | Mark(S) | |||
| Body,Bonnet | CI | DI | HT200.QT400-15 | CI | DI | HT200.QT400-15 |
| Disc,Seat | Cast bronze | ZCuSn5Pb5Zn5 | Stainless Steel | 2cr13 | ||
| Stem | Bronze | QAI 9-2 | Stainless Steel | 2cr13 | ||
| Packing | Flexible graphite | Flexible graphite | |
|||
APPLICABLE SCOPE
The products are used for controlling the medium to open and close, preventing refluence in fuel oil piping, lubricating oil piping and water piping at temperatures 205℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

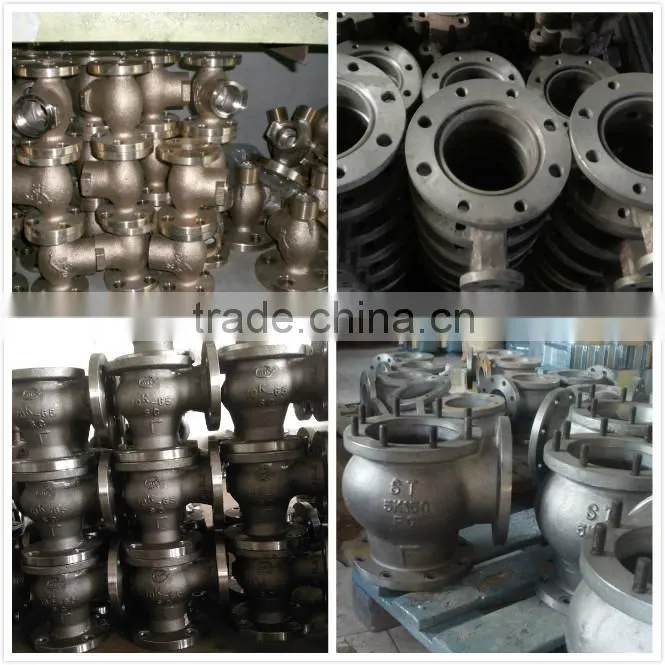

SEMI-FINISHED PRODUCTS

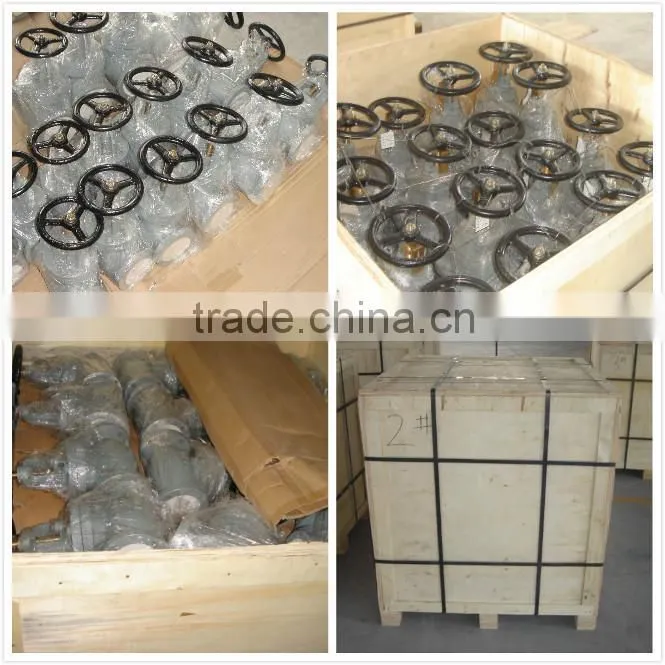

PACKAGING
