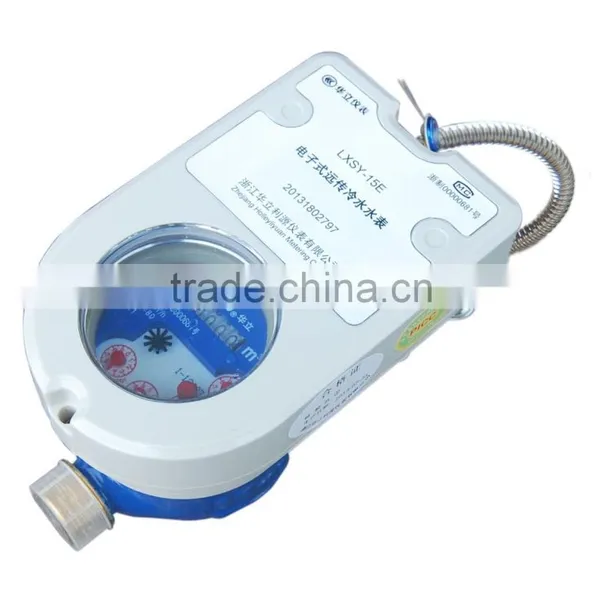

Electronic Remote-reading Water Meter

Electronic Remote-reading Water Meter thumbnail-1
Electronic Remote-reading Water Meter photo-1
US$ 40 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HOLLEY
Model Number:
LXSY-15~25E
Contact Supplier Request Quote Chat Now
Zhejiang Holley Liyuan Metering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HOLLEY
Model Number LXSY-15~25E

Specifications

1. remote valve control;
2. advanced meter infrastructure;
3.electronic sampling technology
4. IP68 fully sealed casing





Specifications



1.Valve Control avoid Payment Problem; 2. Remote Reading save manager cost; 3. efficient Meter Reading



Full Name: M-BUS Remote Reading & Valve Control AMI Water Meter

Model No.: LXSY-15E ~ LXSY-25E

Application: Measuring the volume of cold potable water passing through the pipeline

Technical Standards: ISO4064-1~ 3: 2005,EEN13757-2004,DL/T645-1997



Product Features:



1>Confirms to EN13757-2 2004 international standard, with a favorable compatibility and openness, meanwhile supports various meter types, such as water/electricity/gas/heat meters etc.



2>Adopt two wire connection mode, enables a long communication distance and bus power supply



3>Non-polar of the transmission line, willfully branch of the network topology, easy network, shooting the problem of meter breakdown and failure of meter reading caused by Bus line misconnection



4>Double power supply modes: lithium battery and Bus line power supply



5>Real-time reading of the current meter data and monthly data within a year



6>Low power dissipation, quiescent operation current below 5 μA, guarantee battery of a long service life



7>Remote valve control, facilitating the user management





Technical Data:



Items

Contents

Water Temperature

0.1°C-50°C

Working Pressure

1.0MPa/1.6MPa

Head Loss

0.063MPa

Max. Permissive Error

maximum permissible error: upper zone(Q2≤Q≤Q4),±2%;low zone(Q1≤Q<Q2), ±5%







Base Meter Parameters:



DN Metrologic Class Permanent Flow Q3 Q3/Q1 Min. Reading Max Reading
mm Class B m3/H / m3 m3

15

 2.5 80/100 0.0001 99999
20 4 80/100
25 6.3 80/100









Installation Dimension



Nominal Dia.

DN(mm)

Length L

Length L1

Width B

Height H

Connecting Thread



mm

d

D

15

259

165

96

113

R1/2B

G3/4B

20

300

195

96

113

R3/4B

G1B

25

344

225

96

113

R1 B

G1 1/2B

electronic remote-reading water meterelectronic remote-reading water meter
